Door Mirror RH Defogger Circuit Check

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR DEFOGGER POWER SUPPLY CIRCUIT

Turn ignition switch OFF.
Disconnect door mirror RH.
Turn ignition switch ON.

Check voltage between door mirror RH connector and ground.

VOLTAGE CHART

Connector	Terminals		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D113	6	Ground	Rear window defogger switch ON	Battery voltage
D113	6	Ground	Rear window defogger switch OFF	0

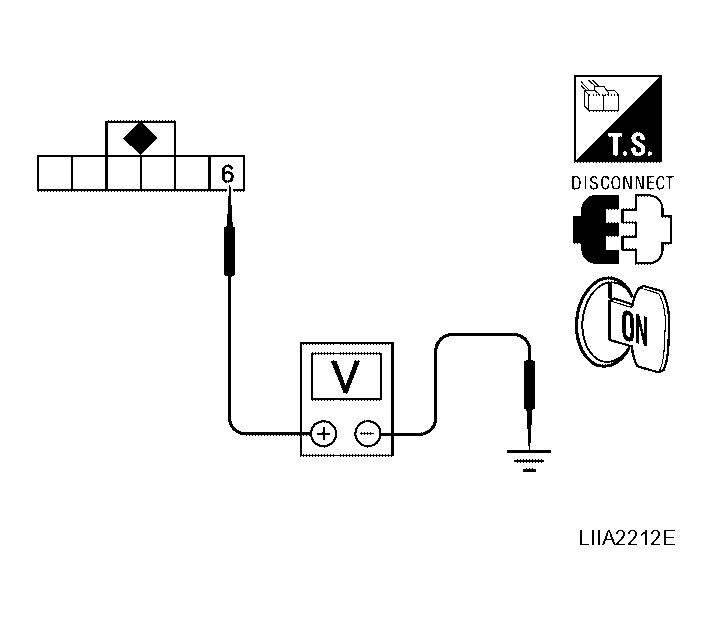

Fig 1: Identifying Voltage Between Door Mirror Connector Terminal 6 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 2.

NG: Repair or replace harness.

CHECK DOOR MIRROR DEFOGGER GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Check continuity between door mirror RH connector D113 terminal 5 and ground.
  5 - Ground: Continuity should exist.
OK or NG

OK: GO TO 3.

NG: Repair or replace harness.

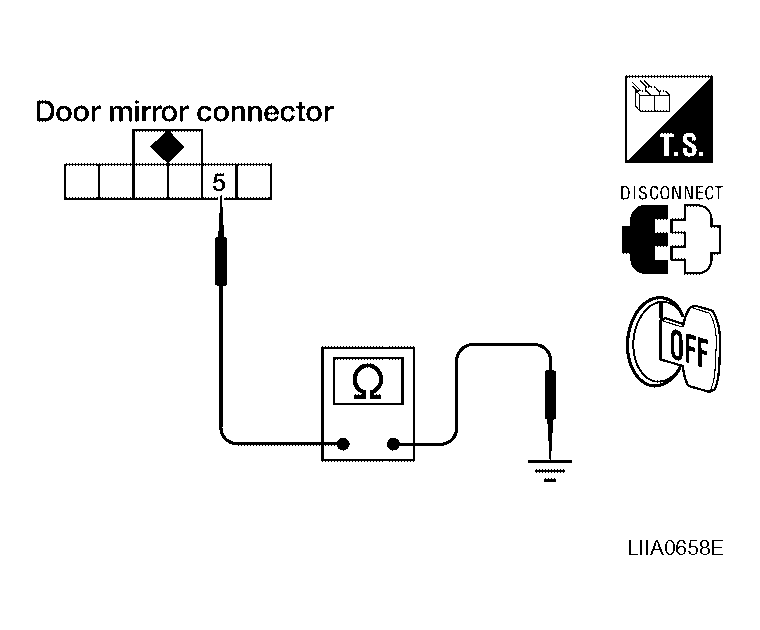

Fig 2: Identifying Continuity Between Door Mirror Connector Terminal 5 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK DOOR MIRROR DEFOGGER
1. Connect door mirror RH.
2. Check continuity between each door mirror RH connector D113 terminals 5 and 6.
  6 - 5: Continuity should exist.
OK or NG

OK: Repair or replace harness.

NG: Replace door mirror RH. Refer to "DOOR MIRROR ASSEMBLY ".

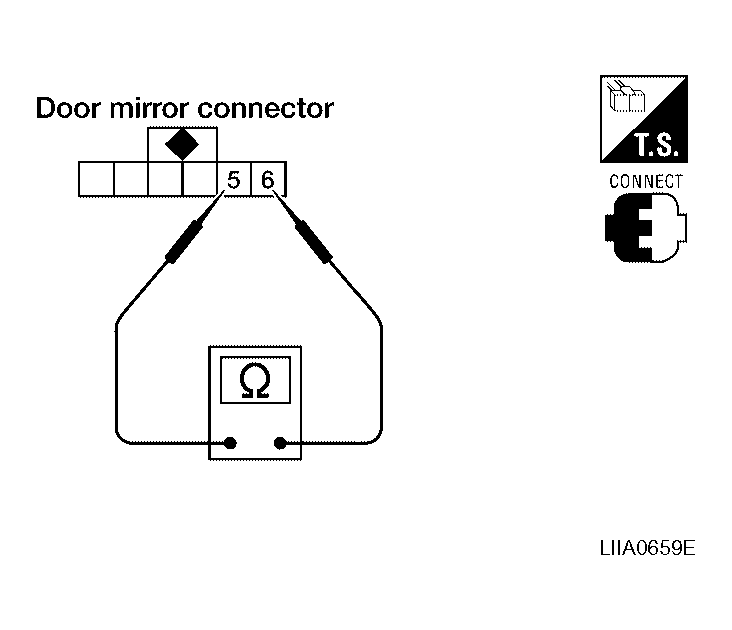

Fig 3: Identifying Continuity Between Door Mirror Connector Terminals 5 And 6
Courtesy of NISSAN MOTOR CO., U.S.A.
