Oil Pressure Switch
WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

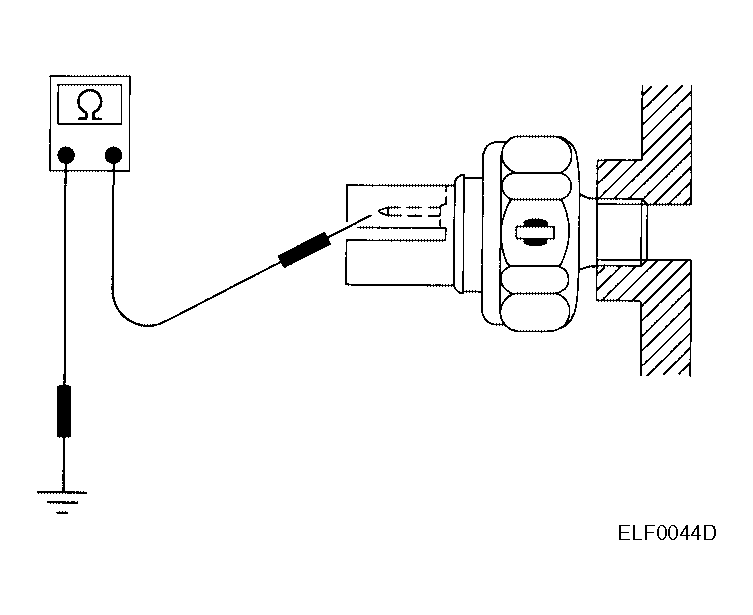

Check continuity between oil pressure switch and ground.
OIL PRESSURE SWITCH - CONTINUITY TABLE
| Condition |
Oil pressure kPa (kg/cm2
, psi) |
Continuity |
| Engine stopped |
Less than 29 (0.3, 4) |
Yes |
| Engine running |
More than 29 (0.3, 4) |
No |
