Diagnostic Procedure

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

CHECK INPUT SIGNALS
With CONSULT-II
1. Start engine.
2. Select "SELECTION FROM MENU" in "DATA MONITOR" mode for "A/T" with CONSULT-II.
3. Drive vehicle in the "D" position (3rd --> 4th gear), and confirm the ON/OFF actuation of the "ATF PRES SW 1" and electrical current value of "FR/B SOLENOID".
OK or NG

OK : GO TO 4.

NG : GO TO 2.

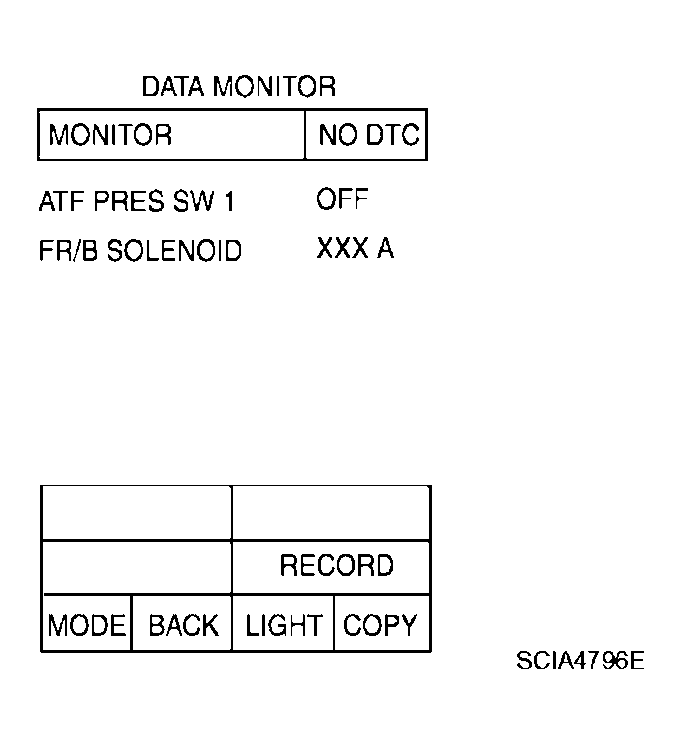

Fig 1: CONSULT-II Display - ATF PRES SW 1
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK TCM POWER SUPPLY AND GROUND CIRCUIT
Check TCM power supply and ground circuit. Refer to , "MAIN POWER SUPPLY AND GROUND CIRCUIT "

OK or NG

OK : GO TO 3.

NG : Repair or replace damaged parts.
DETECT MALFUNCTIONING ITEM
Check the following.
- The A/T assembly harness connector pin terminals for damage or loose connection with harness connector.
OK or NG

OK : Replace the control valve with TCM. Refer to , "CONTROL VALVE WITH TCM AND A/T FLUID TEMPERATURE SENSOR 2 "

NG : Repair or replace damaged parts.
CHECK DTC
Perform "DTC confirmation procedure".
- Refer to , "DTC CONFIRMATION PROCEDURE "
OK or NG

OK : INSPECTION END

NG : GO TO 2.
