Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove plugs on headlining.
  2. Remove the nuts and remove high-mounted stop lamp from outside of roof outer panel.
  3. Rotate the bulb sockets counterclockwise and remove the high-mounted stop lamp assembly.

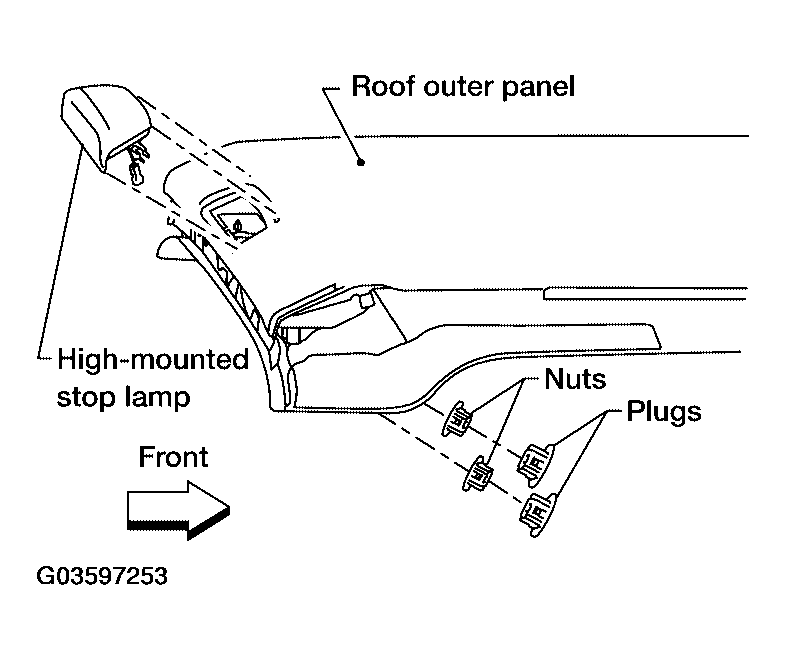

    Fig 1: Removing High-Mounted Stop Lamp Assembly
    G03597253Courtesy of NISSAN MOTOR CO., U.S.A.
