Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open tailgate and remove rear combination lamp bolts.
  2. Pull combination lamp housing rearward to release locating snap.
  3. Rotate each bulb socket counterclockwise to unlock it from lamp housing and remove from vehicle.

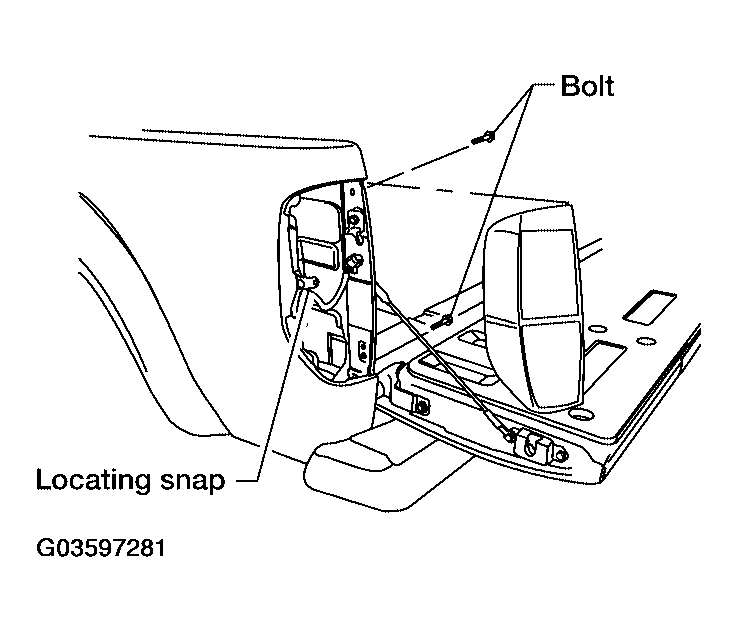

    Fig 1: Removing Rear Combination Lamp Bolts
    G03597281Courtesy of NISSAN MOTOR CO., U.S.A.
