Illumination Control Switch

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

The illumination control switch is a function of the combination meter, and not serviced separately. For replacement, refer to "COMBINATION METER "

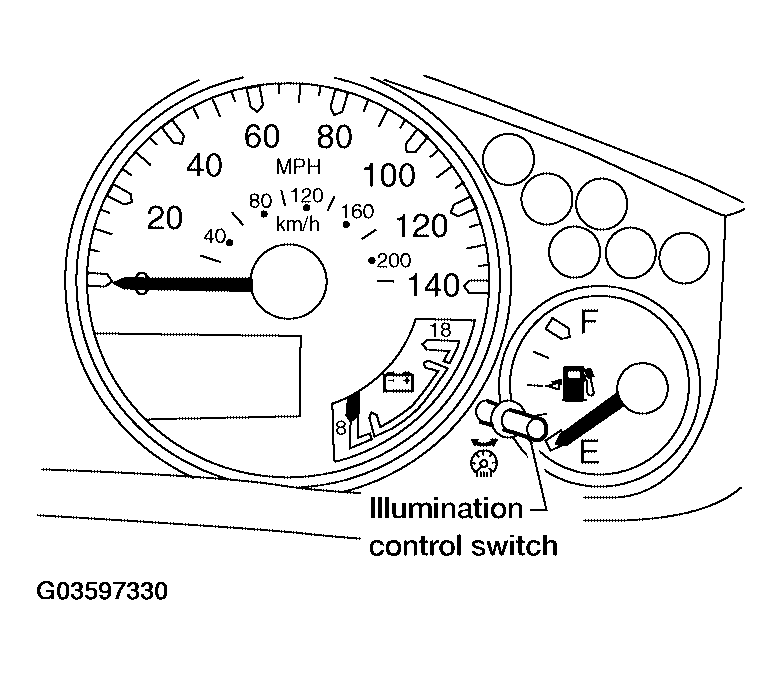

Fig 1: Installing Illumination Control Switch
G03597330Courtesy of NISSAN MOTOR CO., U.S.A.
