Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. Disconnect the lighting and turn signal switch connector.
  3. While pressing tabs, pull lighting and turn signal switch toward driver door and release from the steering column.

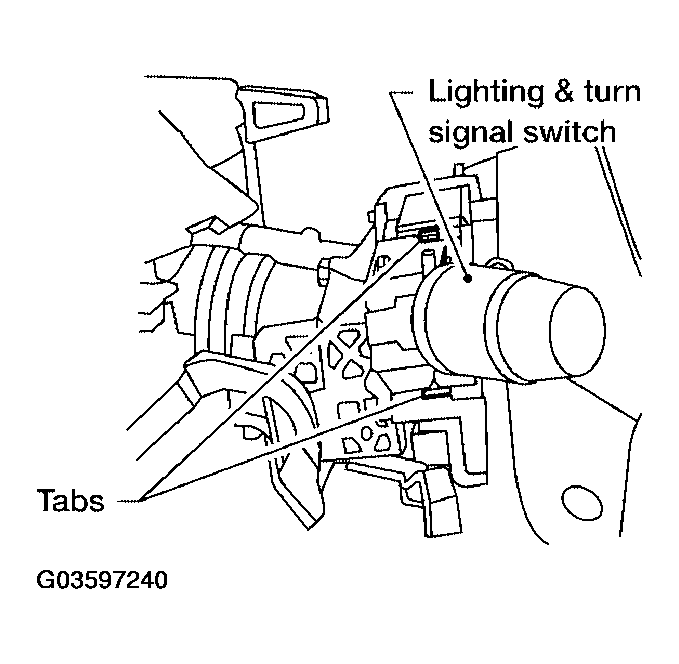

    Fig 1: Identifying Lighting And Turn Signal Switch Tabs
    G03597240Courtesy of NISSAN MOTOR CO., U.S.A.
