Aiming Adjustment: Notes

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

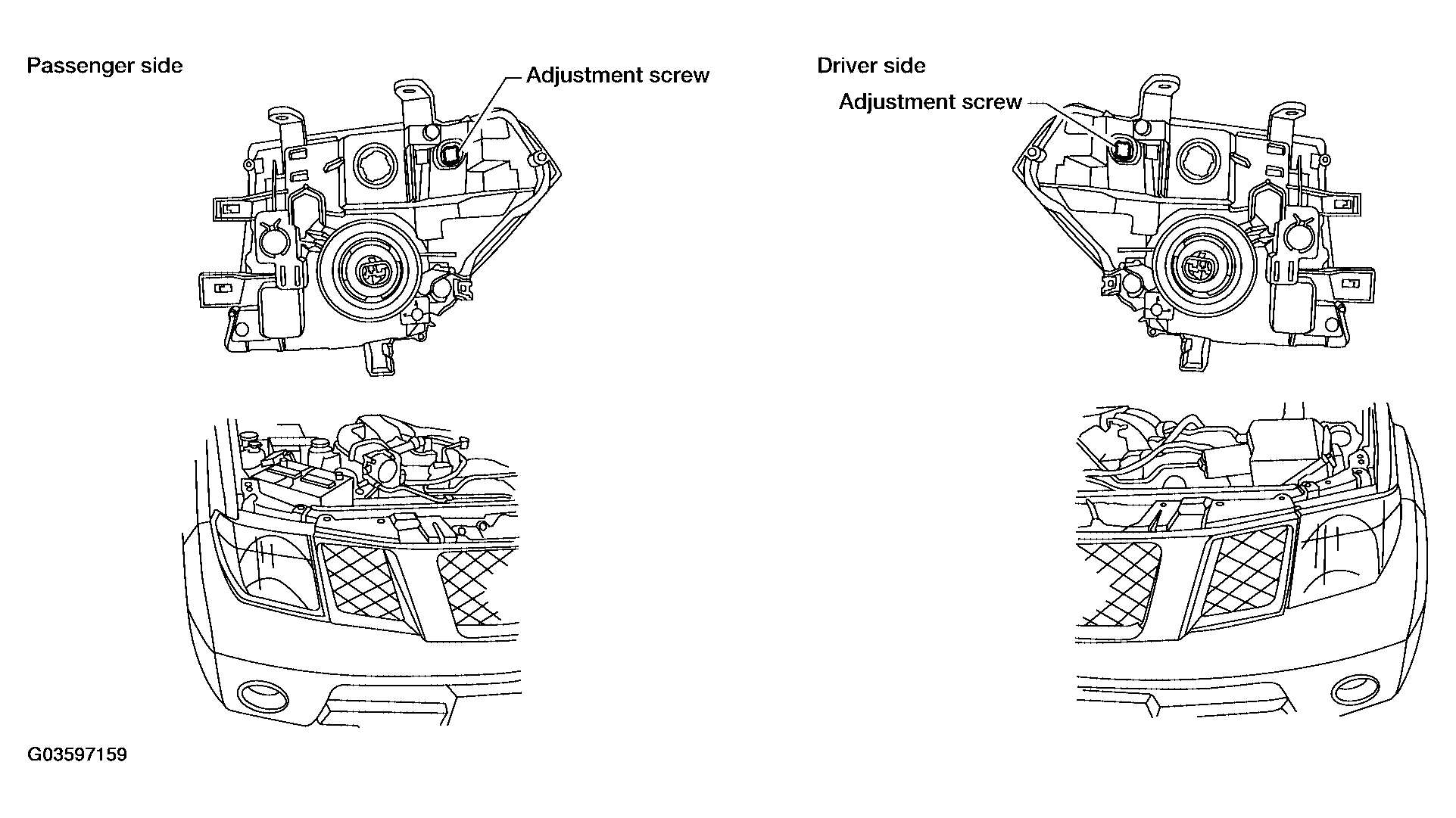

Fig 1: Identifying Headlamp Aiming Adjustment (For USA)

Courtesy of NISSAN MOTOR CO., U.S.A.

For details, refer to the regulations in your state.

When performing headlamp aiming adjustment, use an aiming wall screen.

Before performing aiming adjustment, check the following.

Check all tires and adjust to correct pressure.
Place vehicle and screen on a level surface.
Be sure there is no additional load in vehicle other than the driver (or equivalent weight placed in driver's position). Coolant and engine oil filled to correct level, and fuel tank full.
Confirm spare tire, jack and tools are properly stowed.
