Removal And Installation: Installation

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pan magnets as shown in Fig 1.

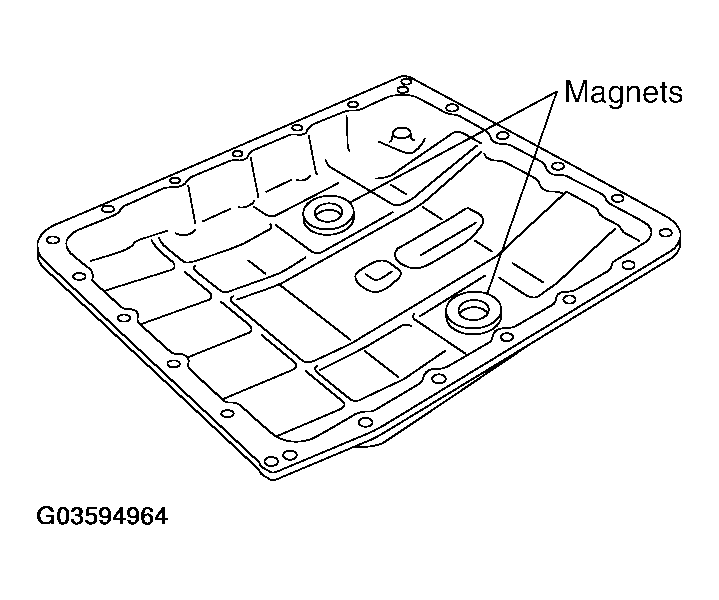

Fig 1: Installing Oil Pan Magnets
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the oil pan and new oil pan gasket.
CAUTION:
- Be sure the oil drain plug is located to the rear of the transmission assembly.
- Before installing oil pan bolts, remove any traces of old sealant from the sealing surfaces and threaded holes.
- Do not reuse old gasket, replace with a new one.
- Always replace the oil pan bolts as they are self-sealing.
- Partially install the oil pan bolts in a criss-cross pattern to prevent dislocation of the gasket.

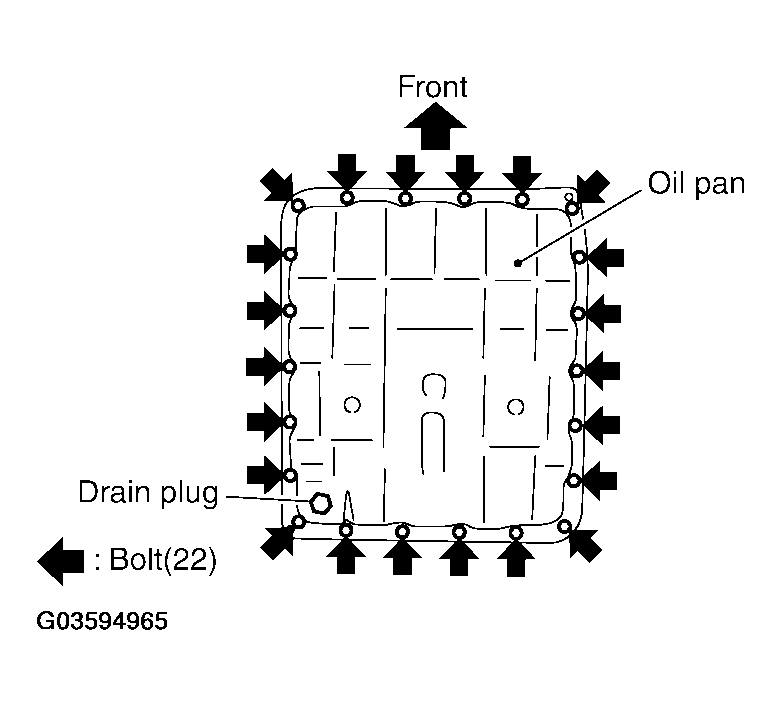

  Fig 2: Installing Oil Pan Bolts
  Courtesy of NISSAN MOTOR CO., U.S.A.
Tighten oil pan bolts in numerical order as shown in Fig 3.
Oil pan bolts: 7.9 N.m (0.81 kg-m, 70 in-lb)

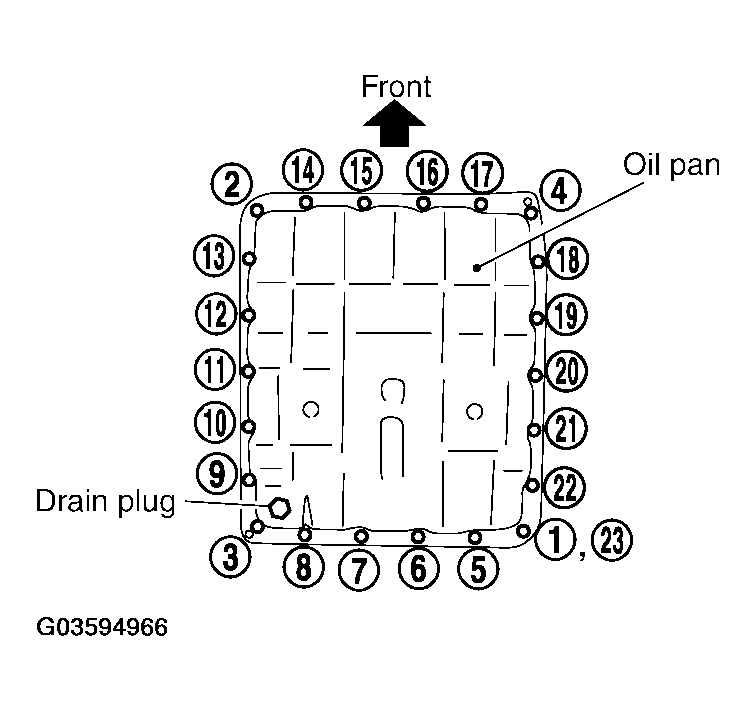

Fig 3: Oil Pan Bolt Tightening Sequence
Courtesy of NISSAN MOTOR CO., U.S.A.
Install drain plug to oil pan.
CAUTION: Do not reuse drain plug gasket.

Drain plug: 34 N.m (3.5 kg-m, 25 ft-lb)
Refill the transmission assembly with fluid. Refer to "CHANGING THE AUTOMATIC TRANSMISSION FLUID (ATF) ".
