With Consult-II

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch "ON". (Do not start engine.)
  2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.

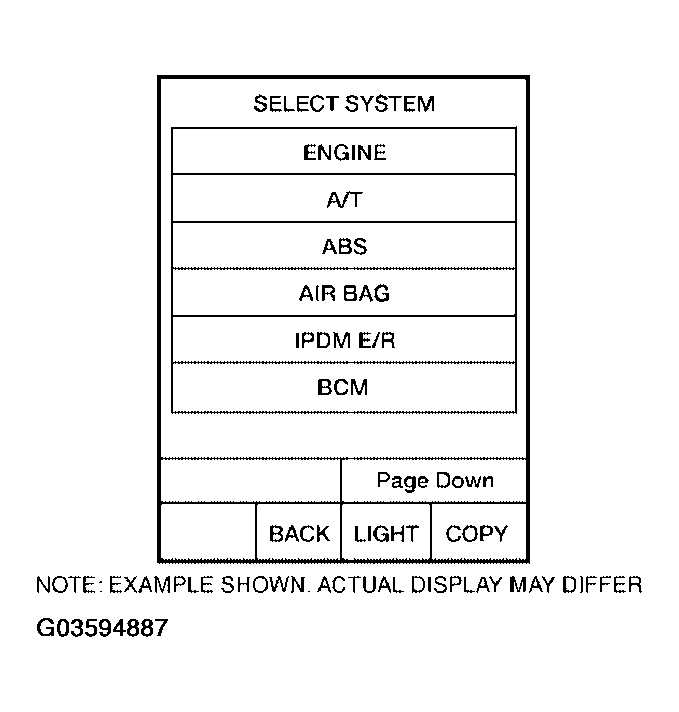

    Fig 1: CONSULT-II Display - Select System
    G03594887Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Start engine and maintain the following conditions for at least 10 minutes (Total). (It is not necessary to maintain continuously.)

    VHCL SPEED SE: 10 km/h (6 MPH) or more

    THRTL POS SEN: More than 1.0/8

    Selector lever: "D" position

  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
