Rear Sonar System Off Switch

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the rear sonar system OFF switch M116. Check the continuity between following terminals.

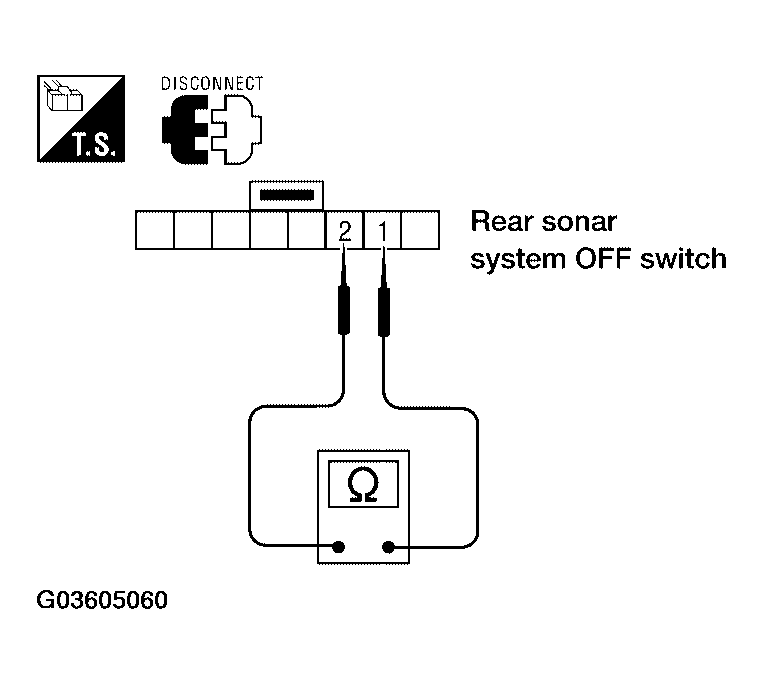

Fig 1: Checking Continuity Between Rear Sonar System Off Switch Terminals
G03605060Courtesy of NISSAN MOTOR CO., U.S.A.
REAR SONAR SYSTEM OFF SWITCH CONTINUITY

Rear sonar system OFF switch Terminal to be inspected Continuity
ON 1 - 2 Yes
OFF No
