Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door finisher. Refer to "REMOVAL AND INSTALLATION ".
  2. Remove the door window and door module assembly. Refer to "REMOVAL AND INSTALLATION ".
  3. Disconnect the inside handle cable and locking knob cable from the back side of the door finisher.

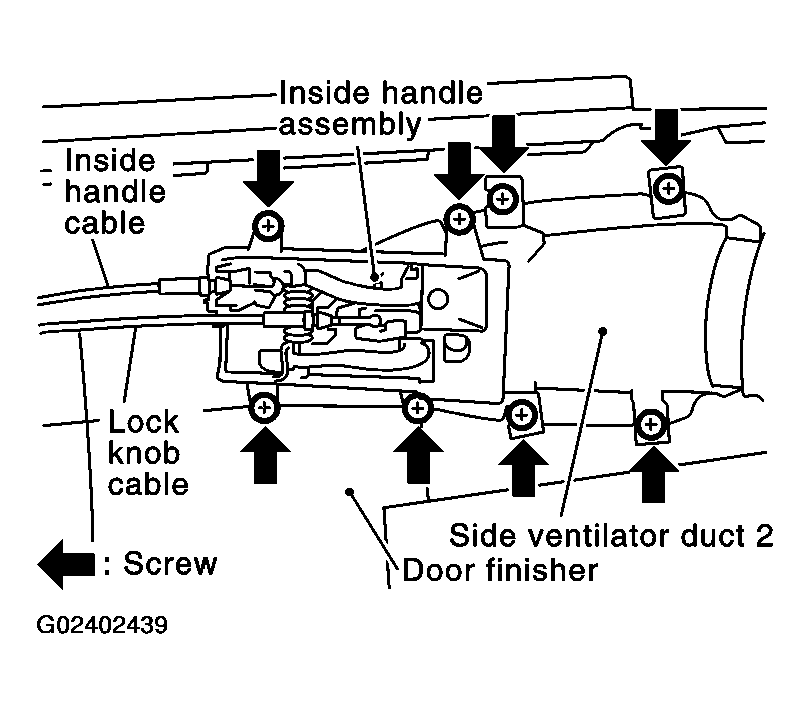

    Fig 1: Disconnecting Inside Handle Cable And Locking Knob Cable From Back Side Of Door Finisher
    G02402439Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Reach to separate the key cylinder (driver side only) rod and outside handle rod connection (on the handle).
  5. Disconnect the door lock actuator connector.
  6. Remove the mounting screws (TORX T30), remove the door lock assembly.
    Fig 2: Removing Mounting Screws (TORX T30) & Door Lock Assembly
    G02402440Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove the outside handle mounting bolts, remove the outside handle.

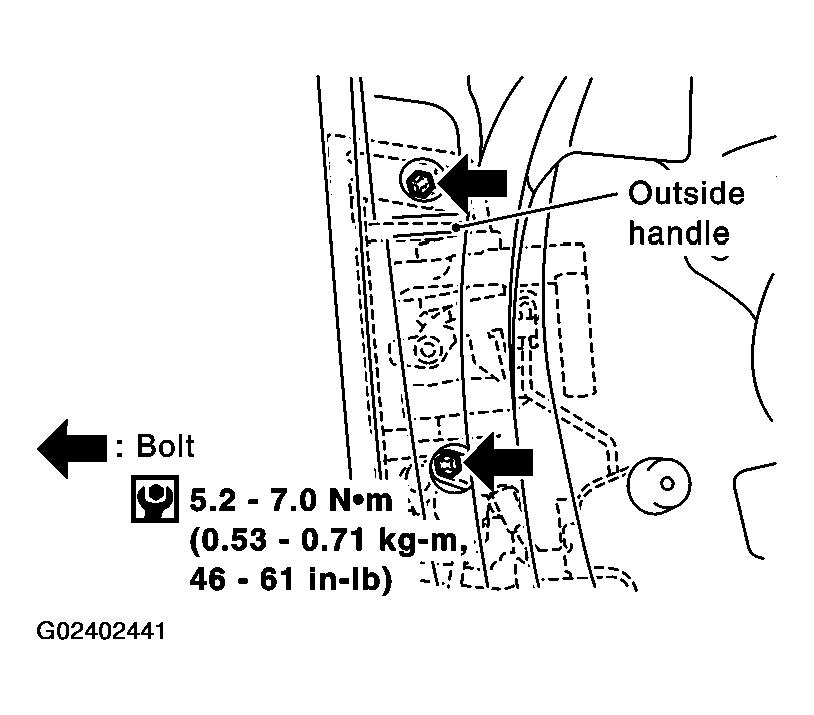

    Fig 3: Removing Outside Handle Mounting Bolts & Outside Handle With Torque Specifications
    G02402441Courtesy of NISSAN MOTOR CO., U.S.A.
