Front Wipers Do Not Stop

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-II

Select "BCM" on CONSULT-II. With "WIPER" on "DATA MONITOR", confirm that "FRONT WIPER INT", "FRONT WIPER LOW", "FRONT WIPER HI", and "FRONT WASHER SW" turn ON-OFF according to wiper switch operation.

Without CONSULT-II

Refer to "COMBINATION SWITCH INSPECTION ".

OK or NG
1. OK: Replace IPDM E/R.
2. NG: Check wiper Switch. Refer to "COMBINATION SWITCH INSPECTION ".

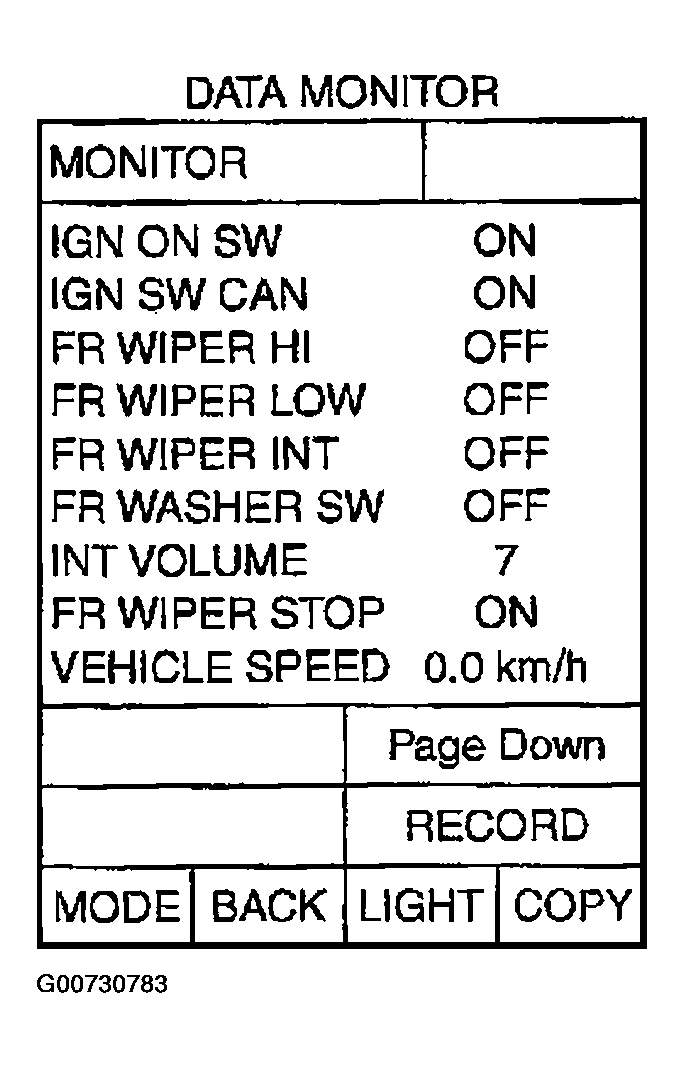

  Fig 1: Displaying DATA MONITOR
  Courtesy of NISSAN MOTOR CO., U.S.A.
