Terminal and Reference Value for Front Power Window Switch RH, Without Rear Power Vent Windows
WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

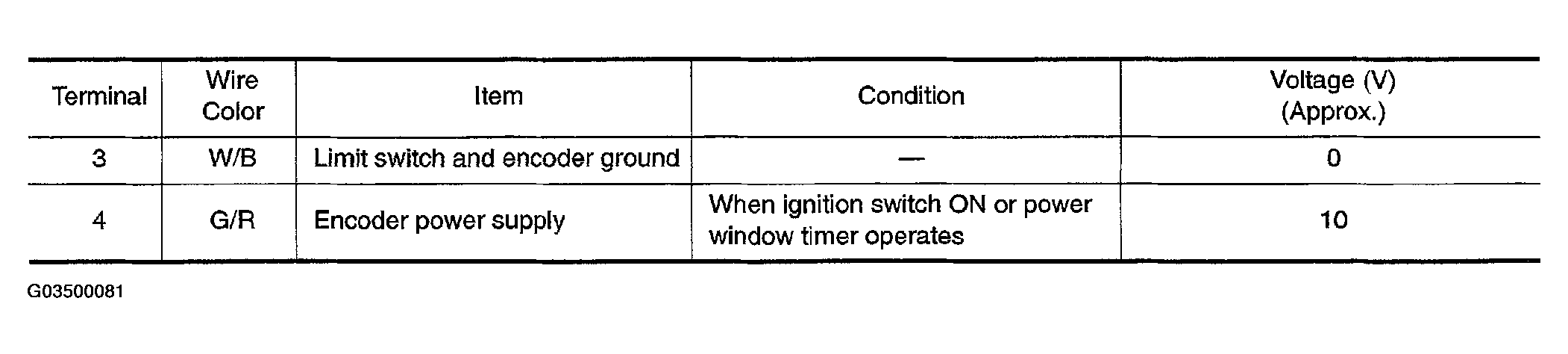

Fig 1: Front Power Window Switch Rh Terminal And Reference Value Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

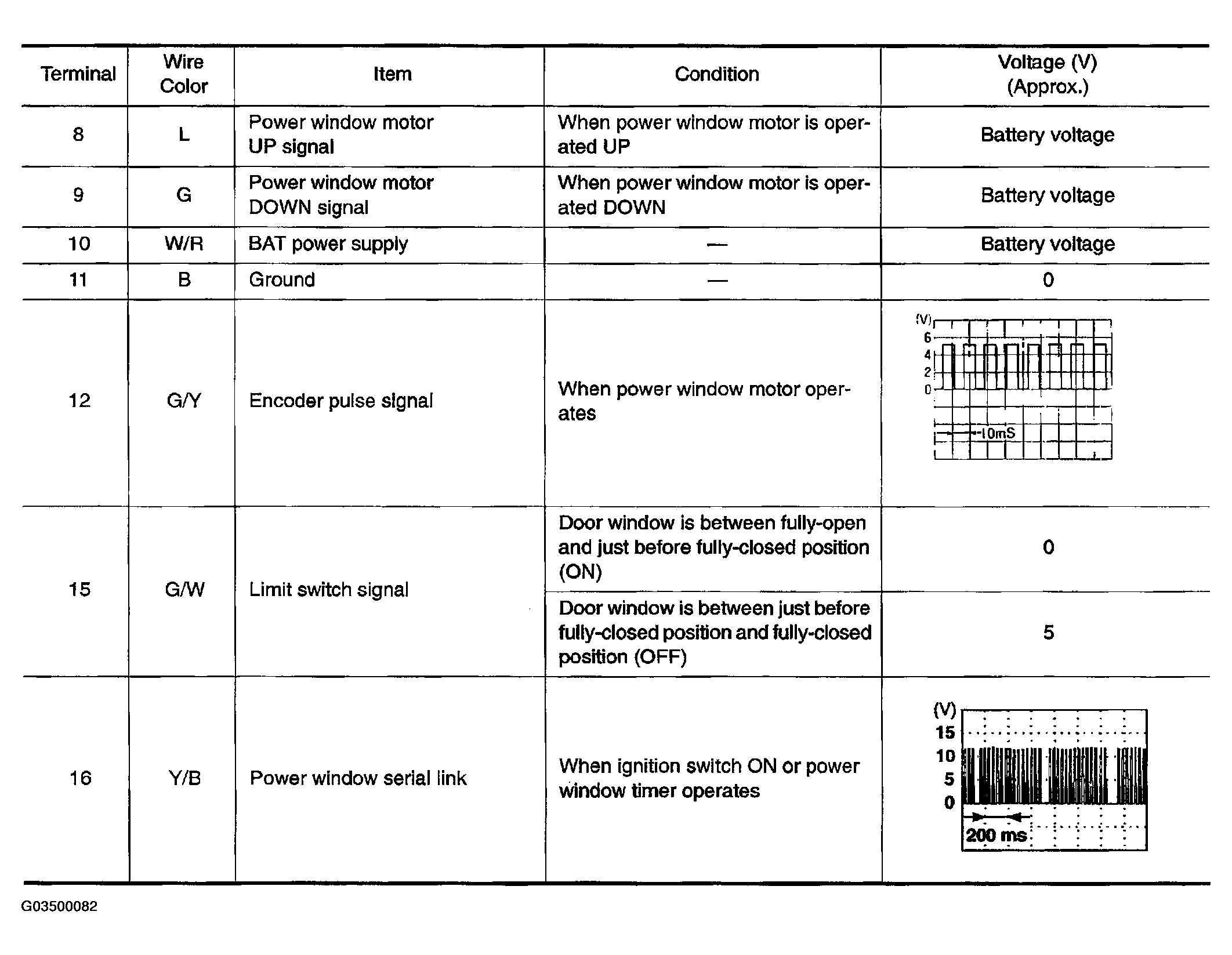

Fig 2: Front Power Window Switch Rh Terminal And Reference Value Chart (2 Of 2)
