Standard And Limit: Valve

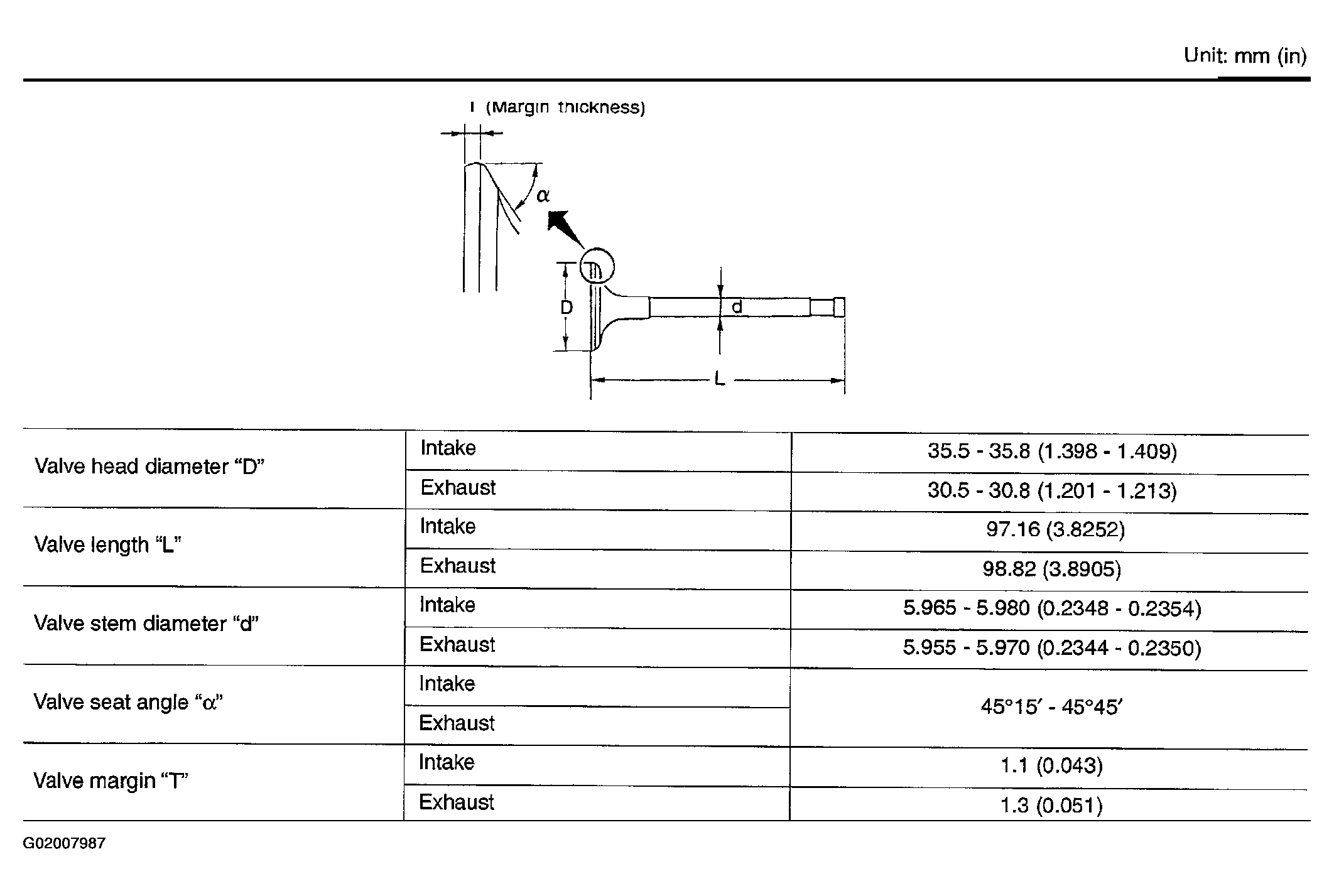

Fig 1: Valve Dimensions Table
G02007987Courtesy of NISSAN MOTOR CO., U.S.A.

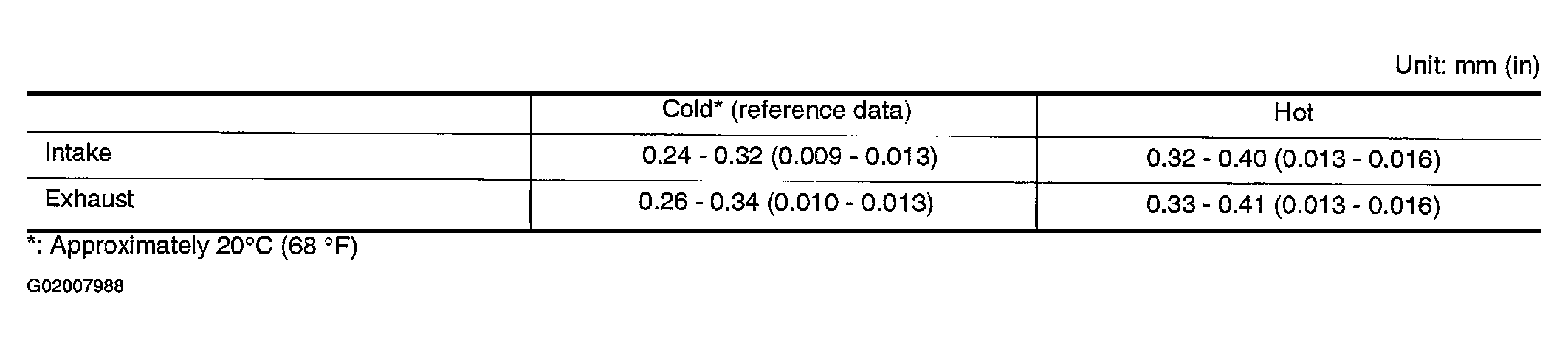

Fig 2: Valve Clearance Table
G02007988Courtesy of NISSAN MOTOR CO., U.S.A.

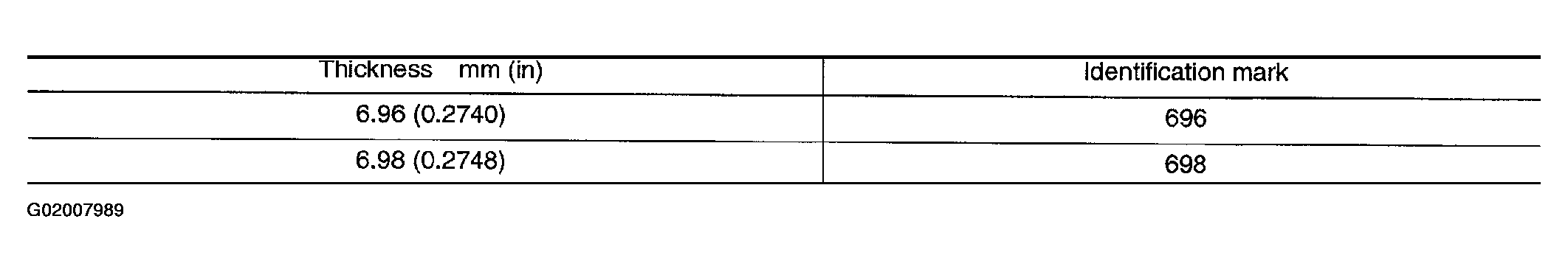

Fig 3: Available Valve Lifter Specification Table (1 Of 2)
G02007989Courtesy of NISSAN MOTOR CO., U.S.A.

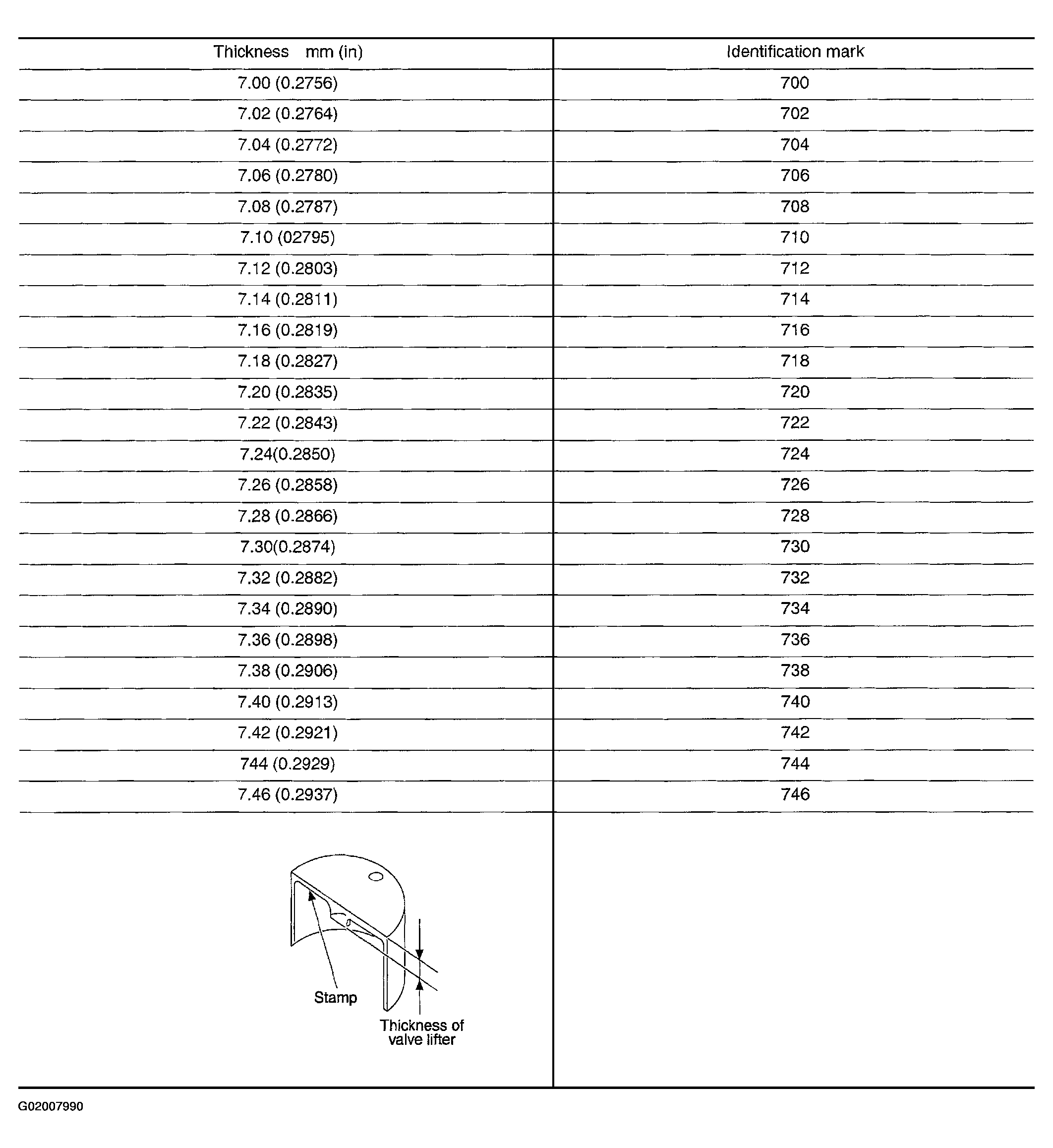

Fig 4: Available Valve Lifter Specification Table (2 Of 2)
G02007990Courtesy of NISSAN MOTOR CO., U.S.A.

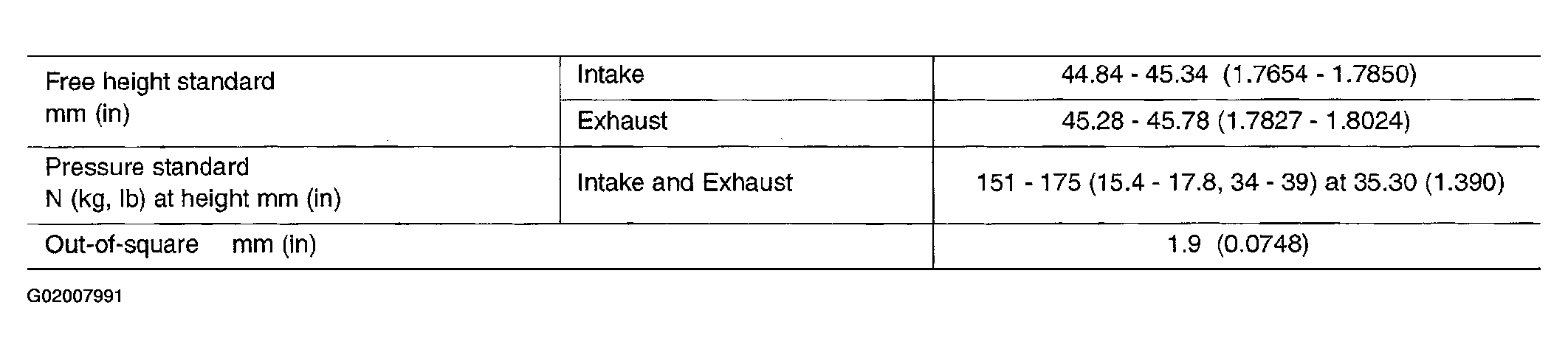

Fig 5: Valve Spring Specification Table
G02007991Courtesy of NISSAN MOTOR CO., U.S.A.

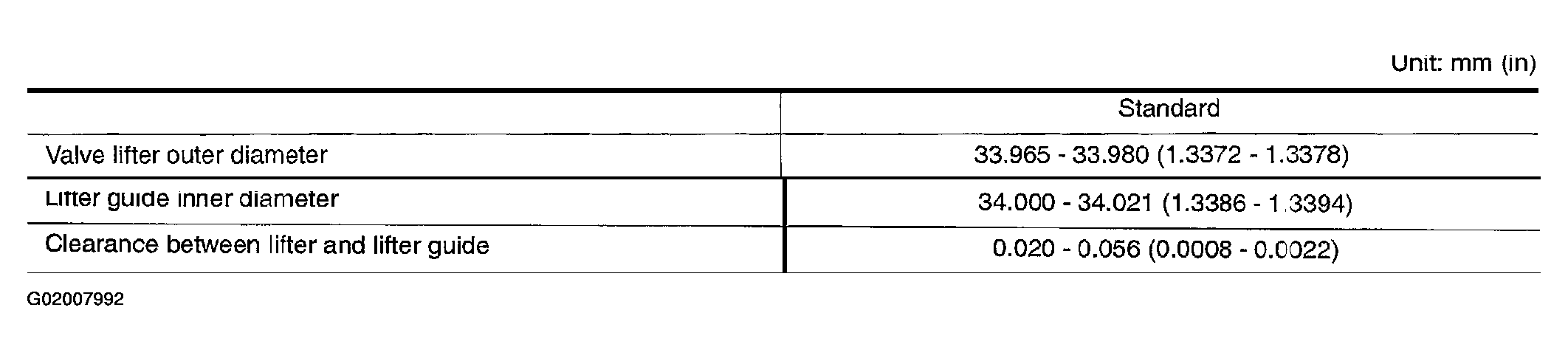

Fig 6: Valve Lifter Specification Table
G02007992Courtesy of NISSAN MOTOR CO., U.S.A.

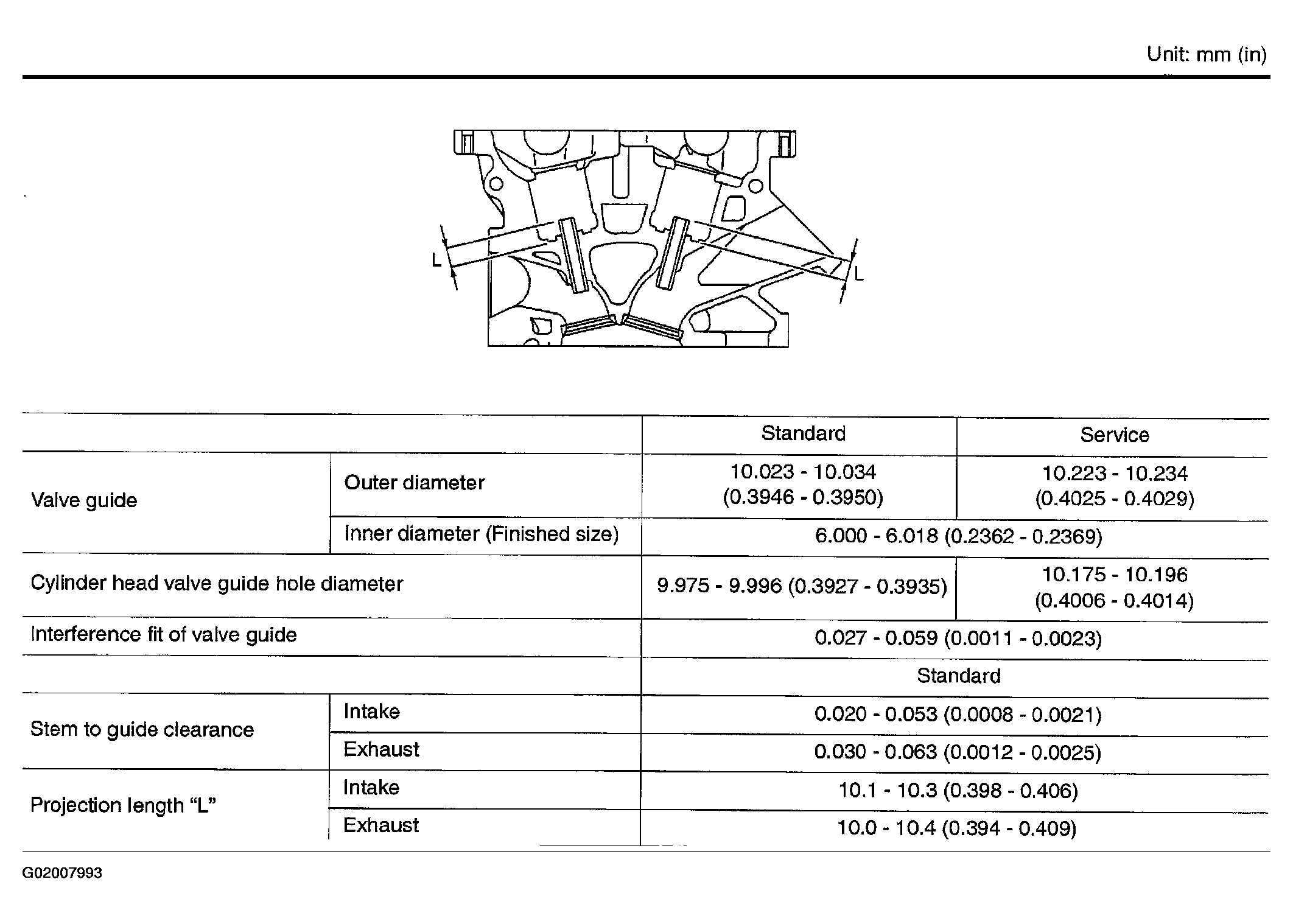

Fig 7: Valve Guide Specification Table
G02007993Courtesy of NISSAN MOTOR CO., U.S.A.

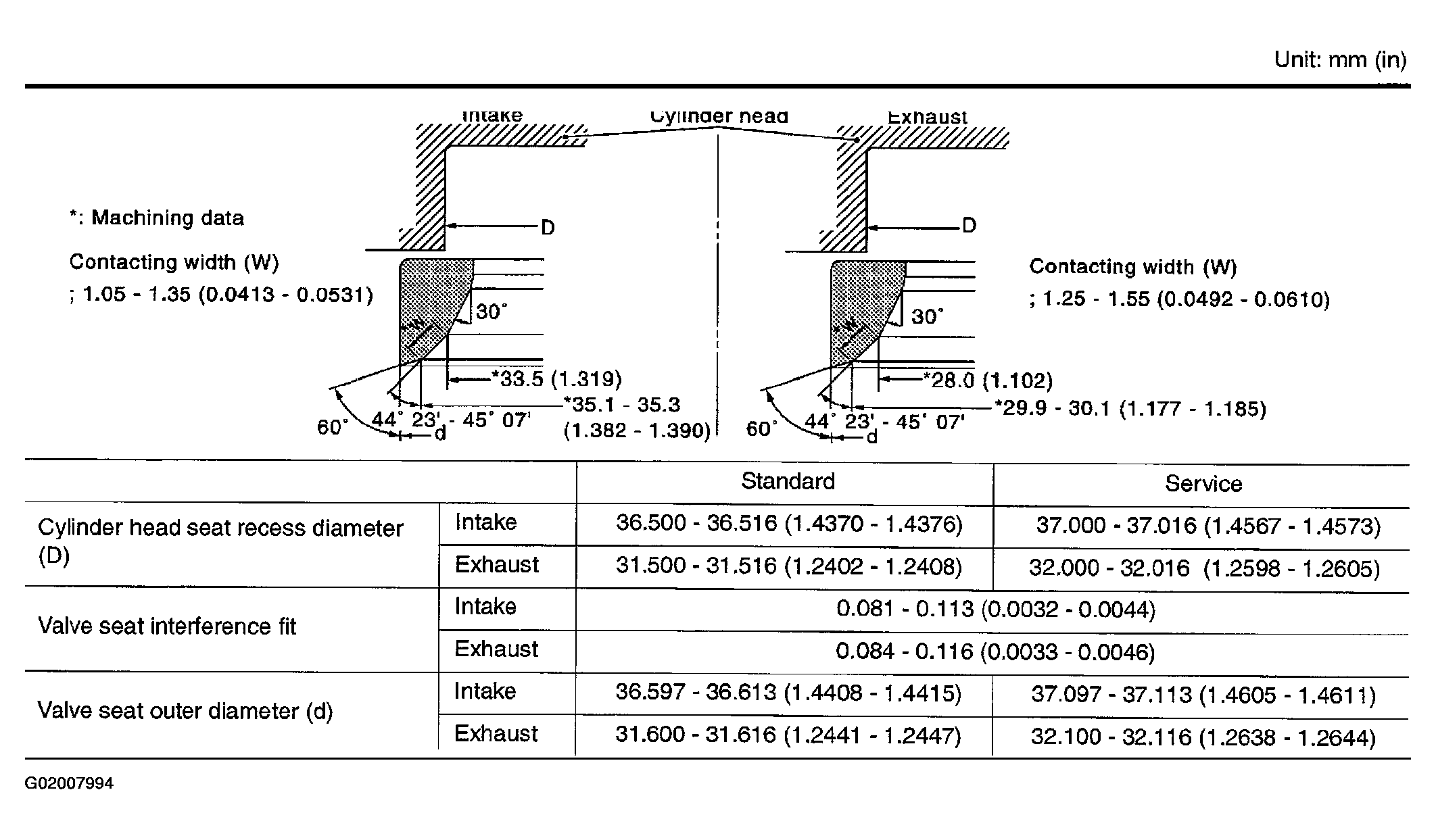

Fig 8: Valve Seat Specification Table
G02007994Courtesy of NISSAN MOTOR CO., U.S.A.
