Main Bearing
Main Bearing

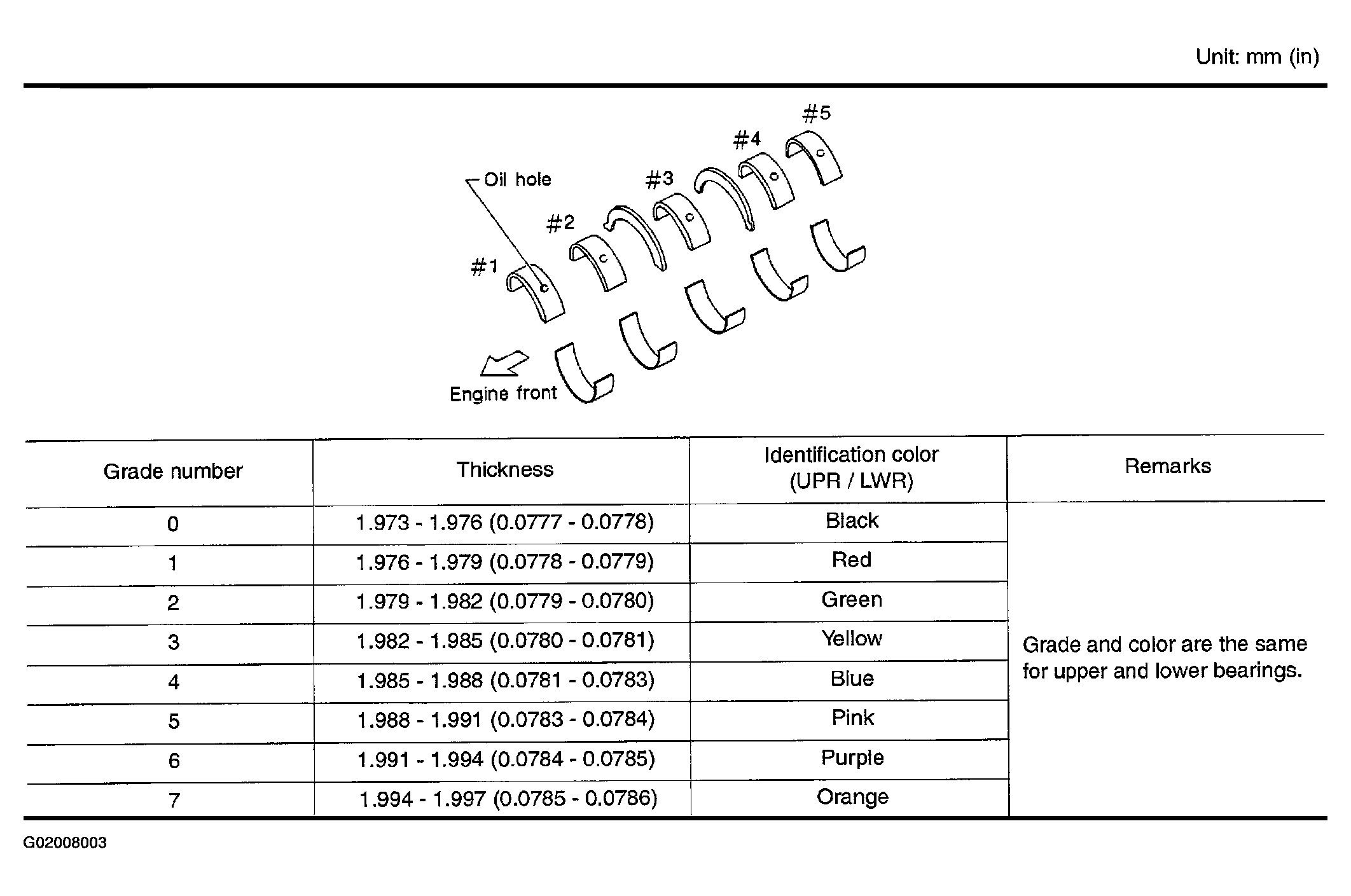

Fig 1: Main Bearing Specification Table (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

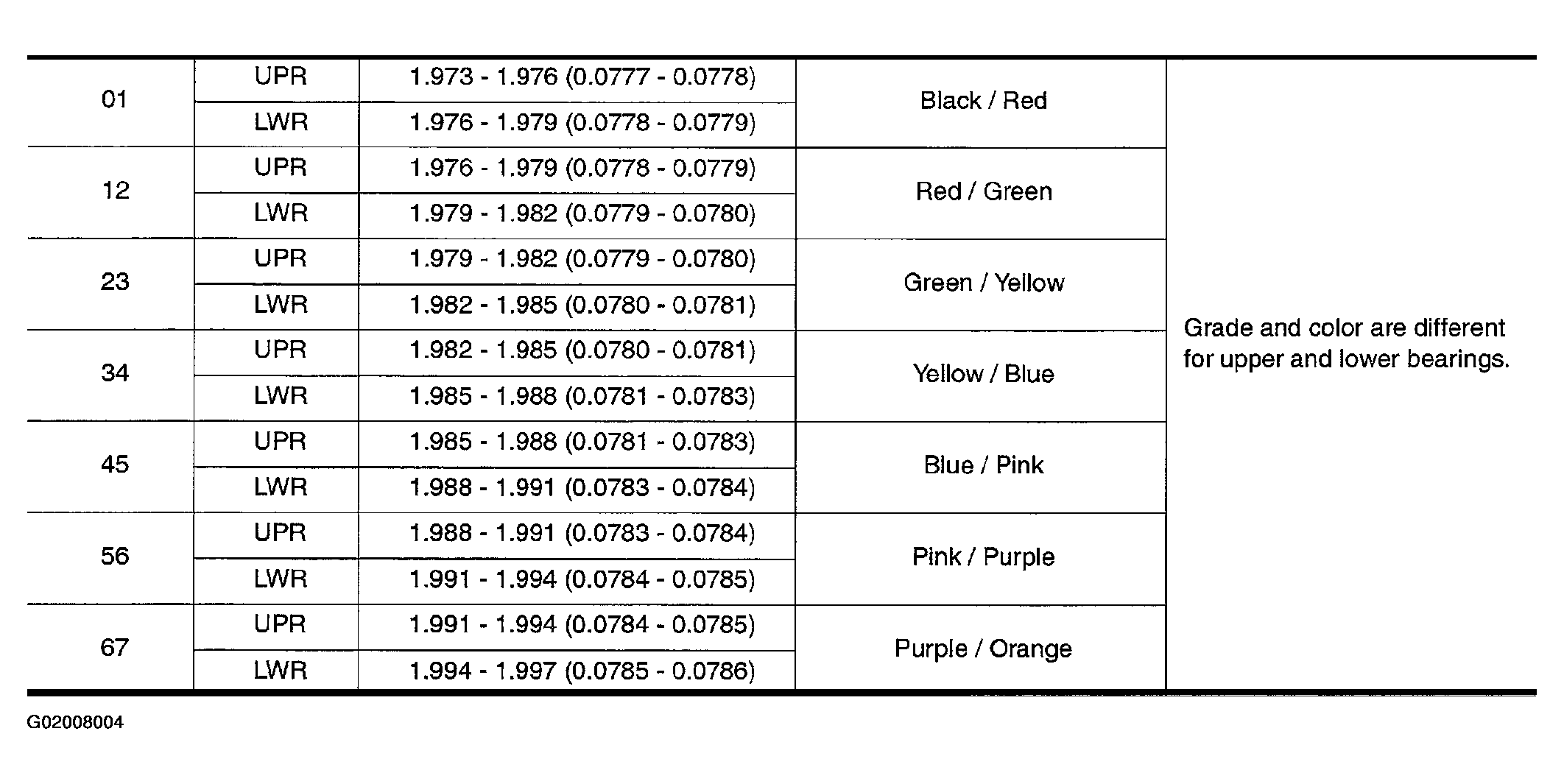

Fig 2: Main Bearing Specification Table (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

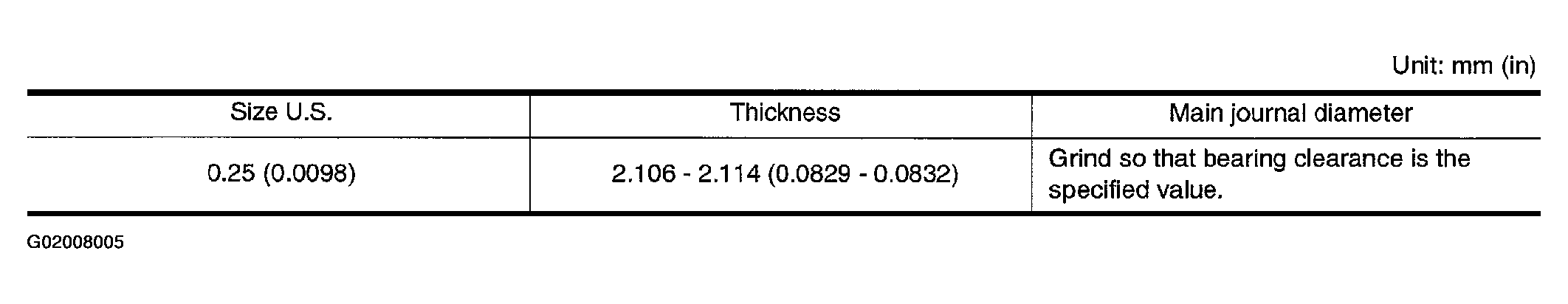

Fig 3: Undersize Bearing Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

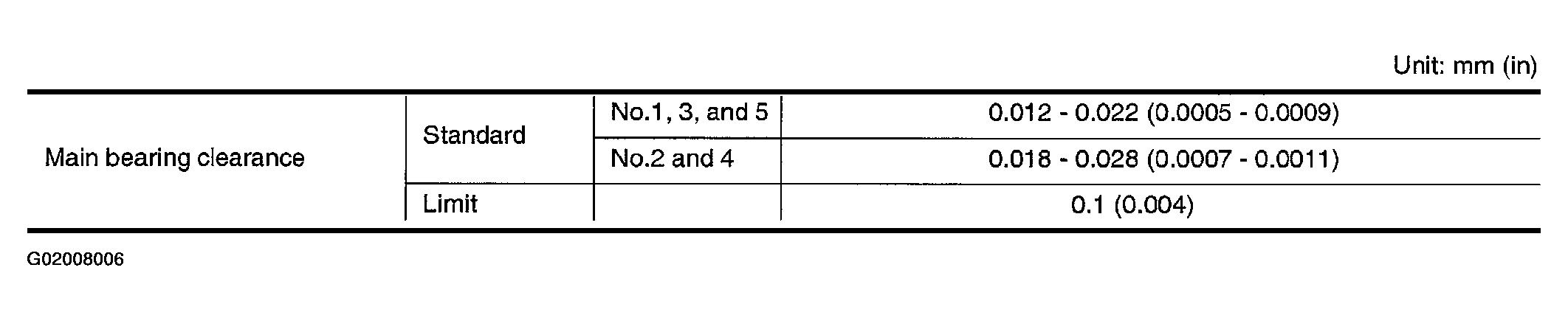

Fig 4: Main Bearing Clearance Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
