Special Service Tools

The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.

Fig 1: Special Service Tools (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

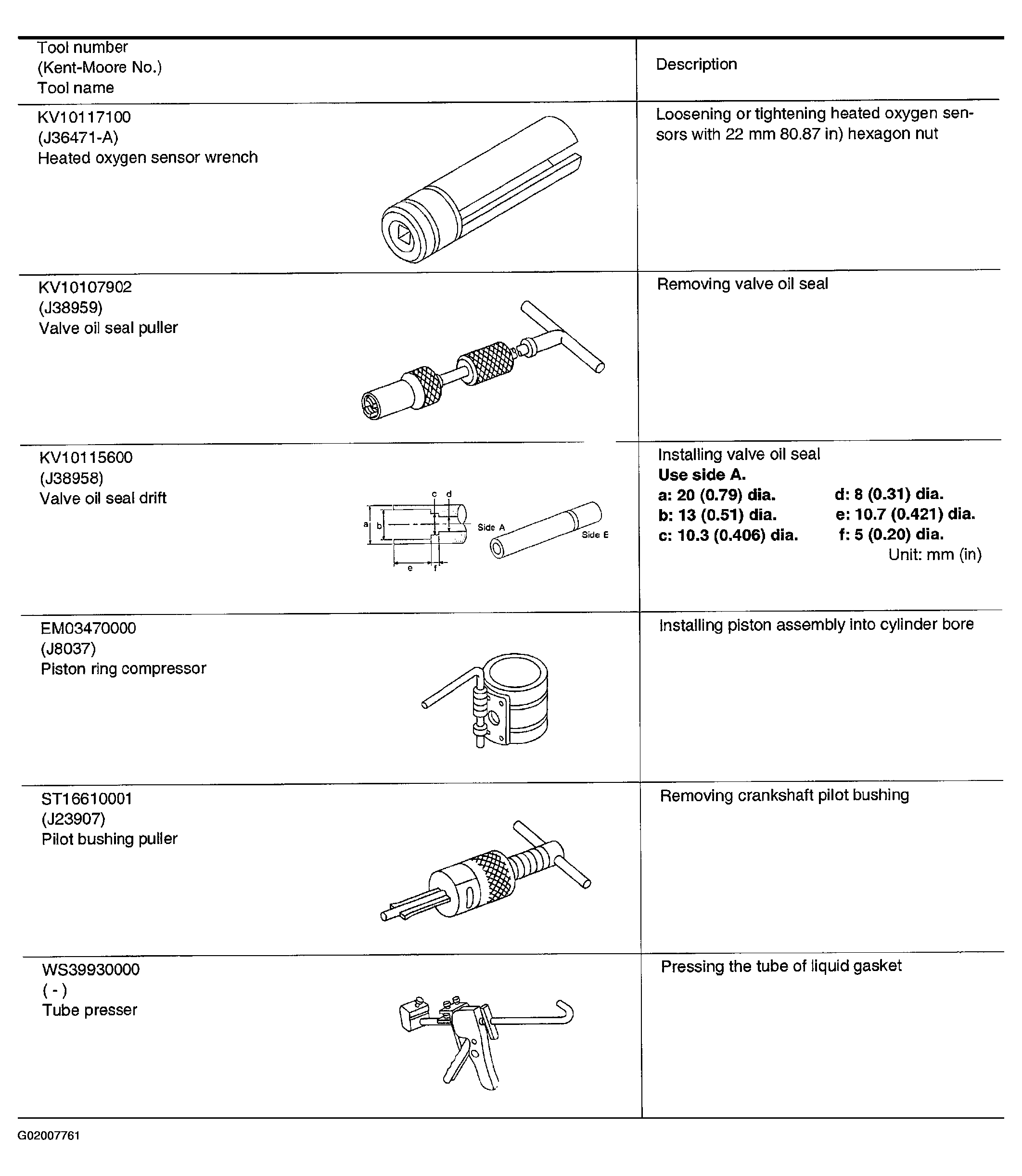

Fig 2: Special Service Tools (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
