Home
>>
Nissan-Datsun
>>
2003
>>
Sentra SE-R Spec V
>>
Repair and Diagnosis
>>
Engine Mechanical
>>
Engine Mechanical - Qr25DE
>>
Preparation
>>
Commercial Service Tools
Commercial Service Tools

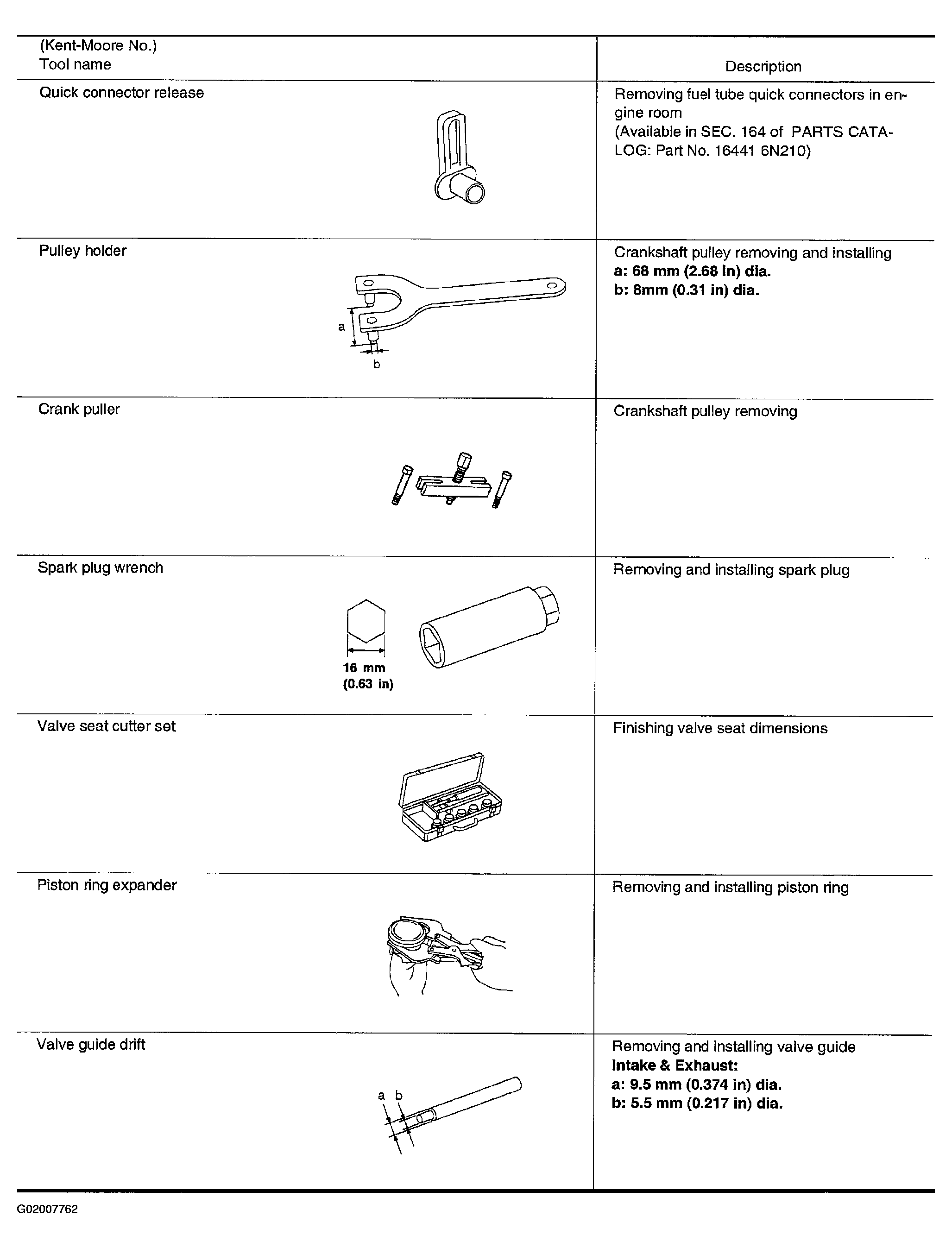

Fig 1: Commercial Service Tools (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

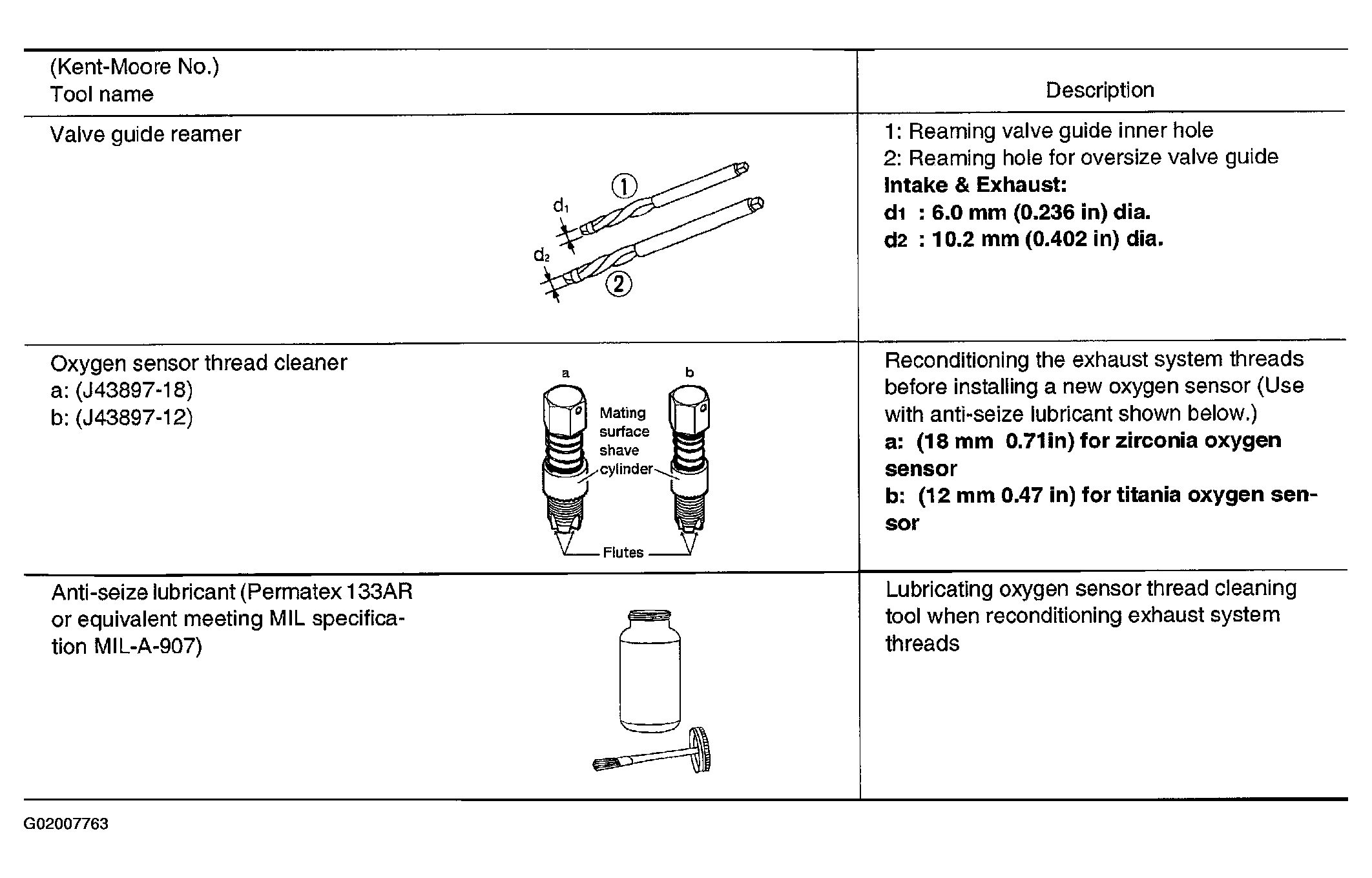

Fig 2: Commercial Service Tools (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
