Fig. 1

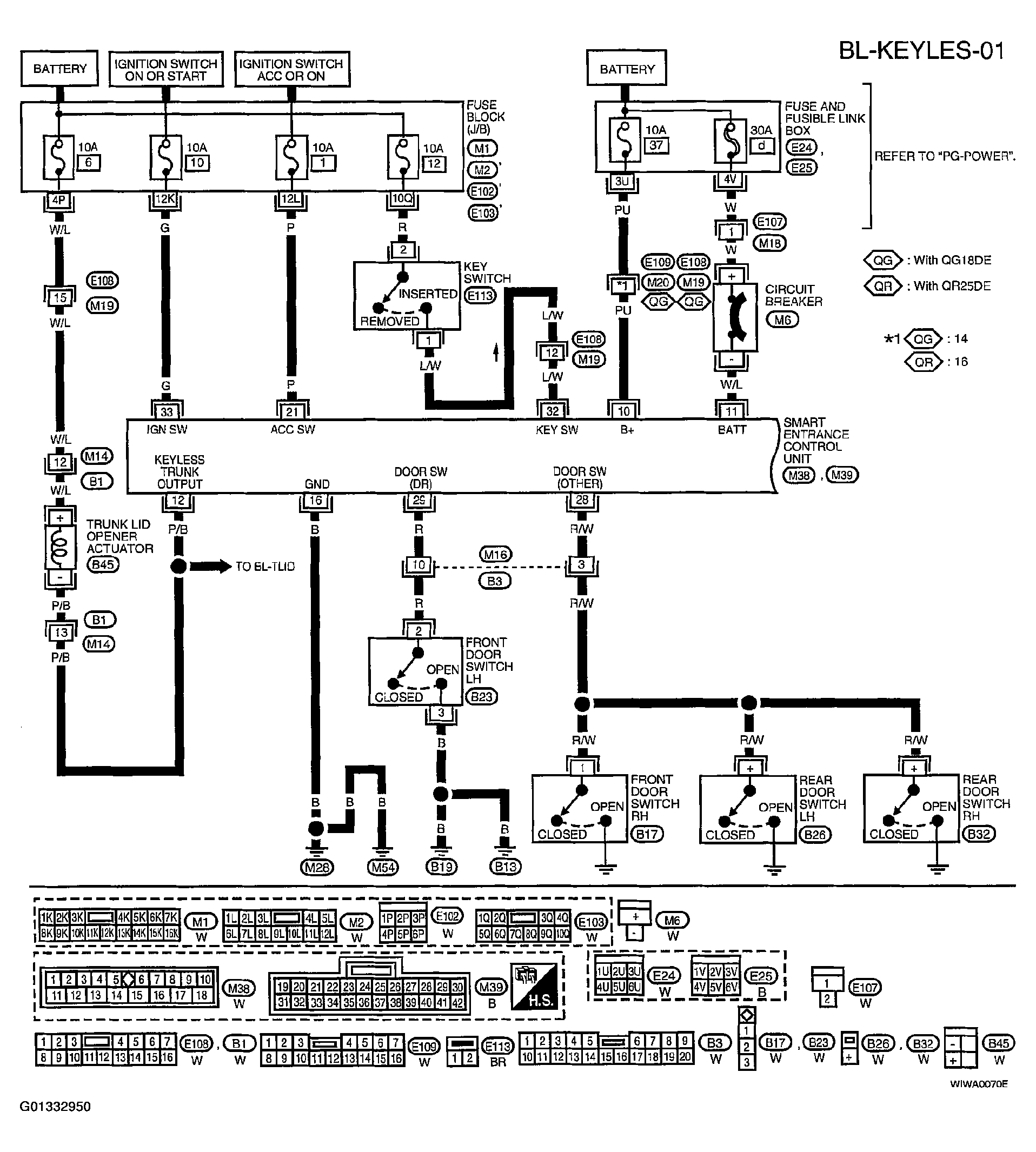

Fig 1: Remote Keyless Entry System Wiring Diagram And Identifying Connectors (1 Of 3)
G01332950Courtesy of NISSAN MOTOR CO., U.S.A.

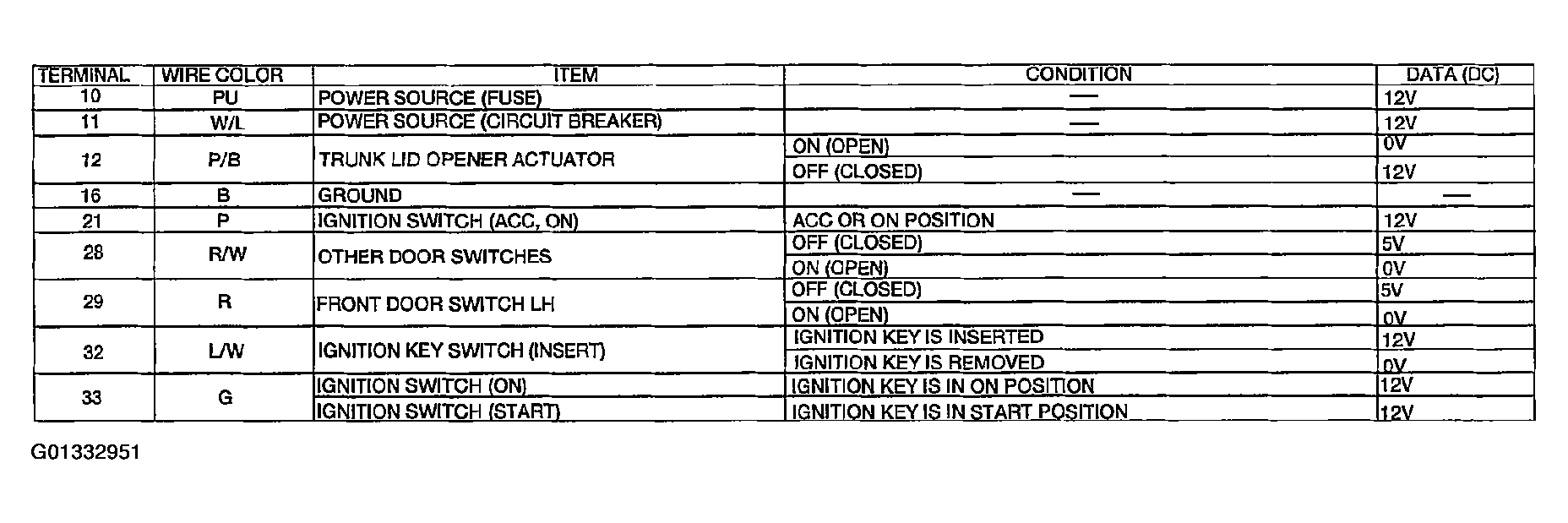

Fig 2: Smart Entrance Control Unit And Reference Value Chart
G01332951Courtesy of NISSAN MOTOR CO., U.S.A.
