DTC P0710: A/T Fluid Temperature Sensor Circuit: Description: Notes

The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

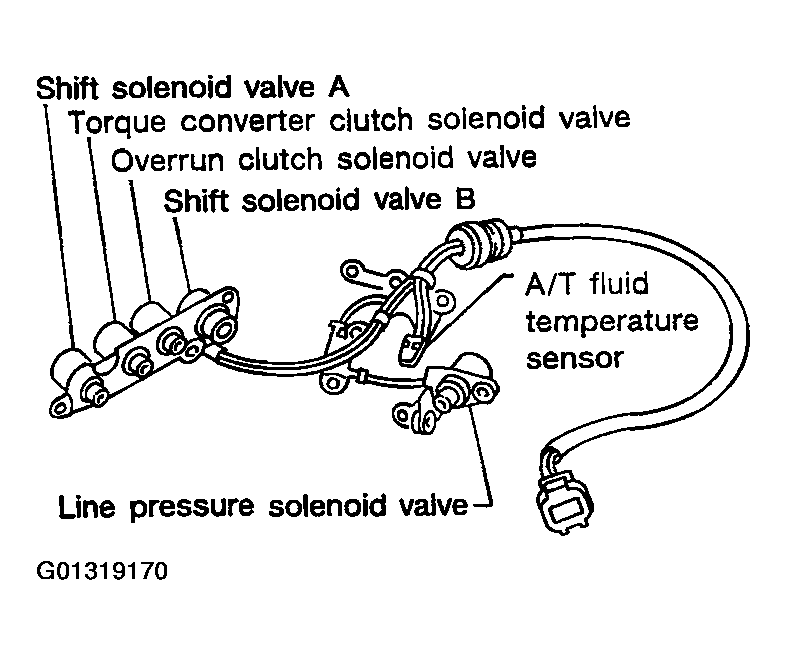

Fig 1: Identifying A/T Fluid Temperature Sensor Wiring Harness

Courtesy of NISSAN MOTOR CO., U.S.A.

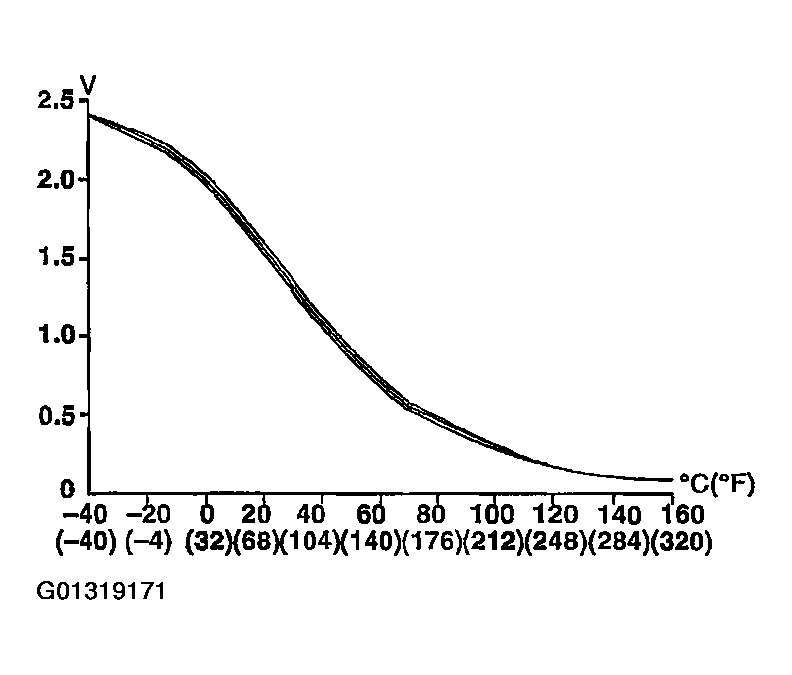

Fig 2: A/T Fluid Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.
