Retainer Plate (For Control Valve Lower Body)

Refer to "CONTROL VALVE LOWER BODY ".

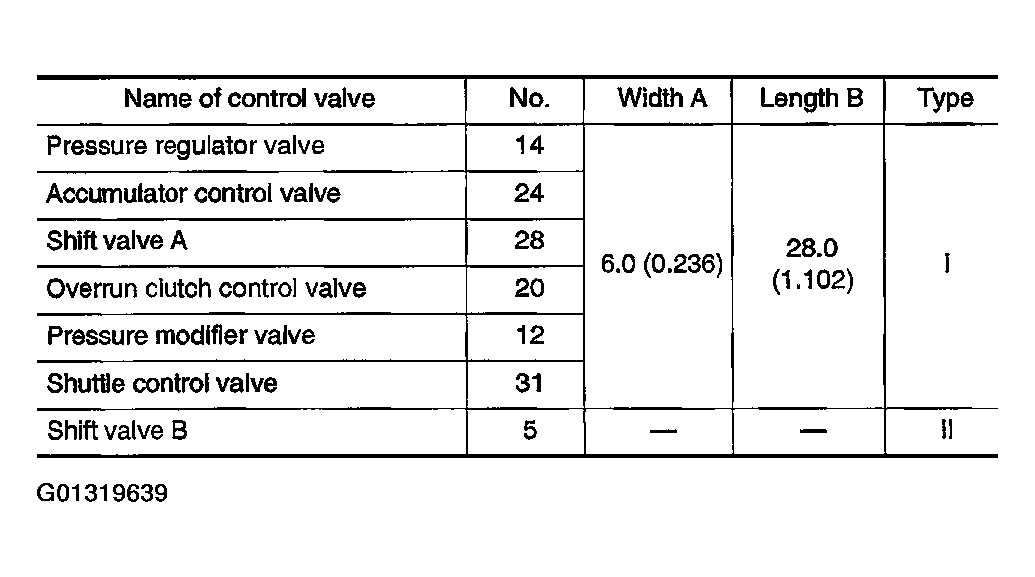

Fig 1: Control Valve Length And Width Specification

Courtesy of NISSAN MOTOR CO., U.S.A.

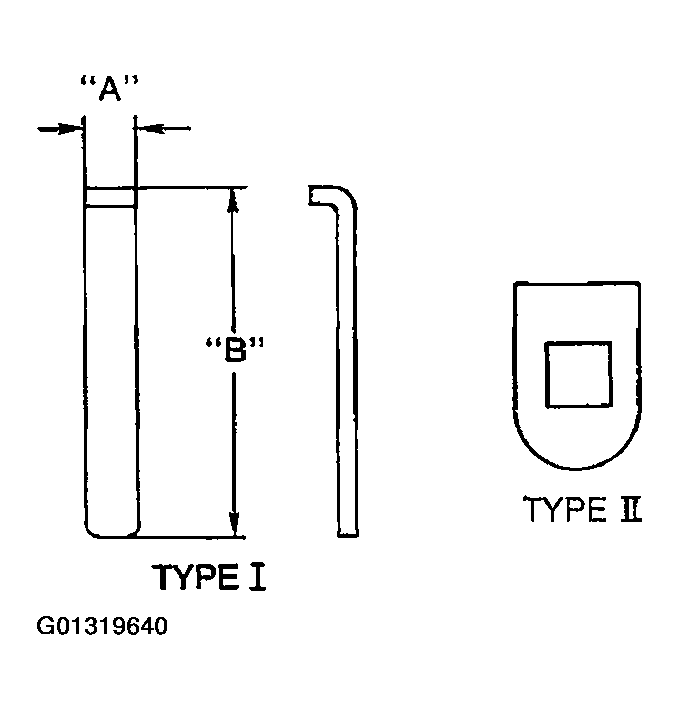

Fig 2: Identifying Control Valve Width

Courtesy of NISSAN MOTOR CO., U.S.A.

• Install proper retainer plates.
