Component Locations

NOTE: For component locations, see Fig 1-Fig 27 .
For connector and harness locations, see Fig 28-Figure

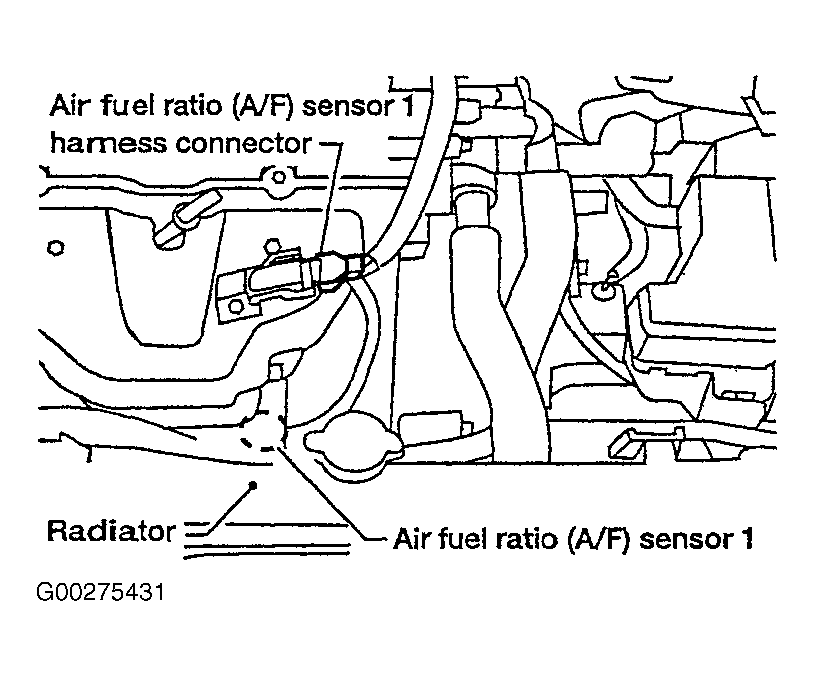

Fig 1: Locating Air Fuel Ratio Sensor 1

G00275431

Courtesy of NISSAN MOTOR CO., U.S.A.

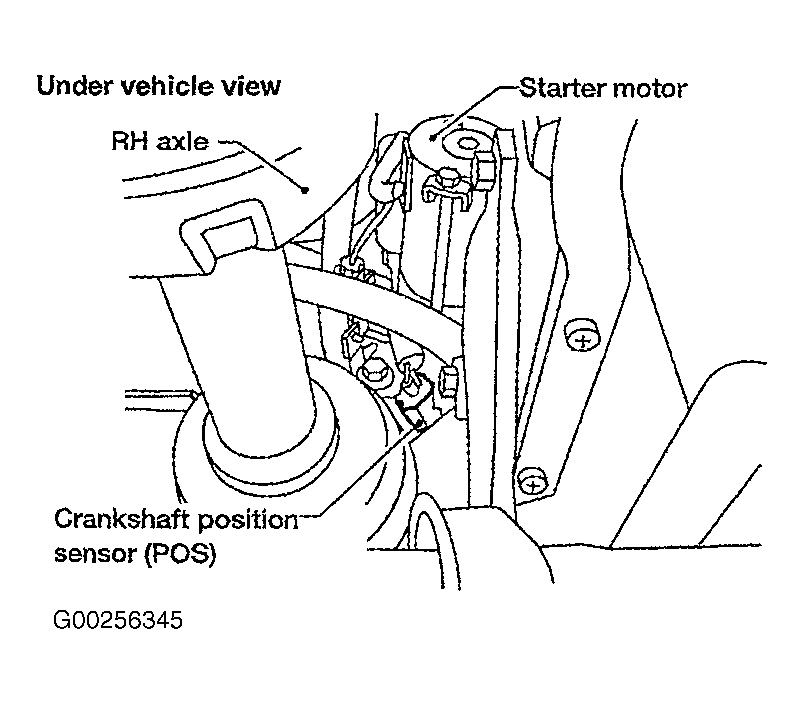

Fig 2: Locating Crankshaft Position Sensor

G00256345

Courtesy of NISSAN MOTOR CO., U.S.A.

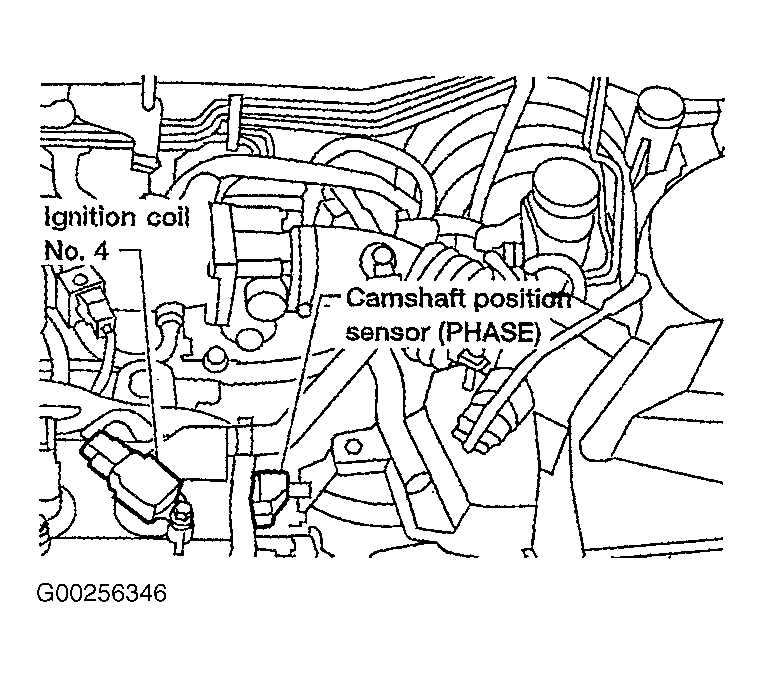

Fig 3: Locating Camshaft Position Sensor

G00256346

Courtesy of NISSAN MOTOR CO., U.S.A.

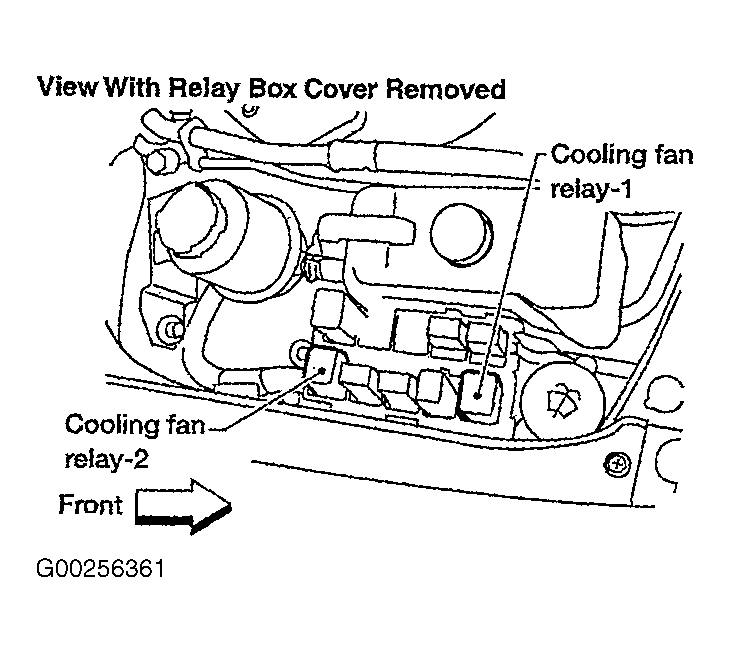

Fig 4: Locating Cooling Fan Relays

G00256361

Courtesy of NISSAN MOTOR CO., U.S.A.

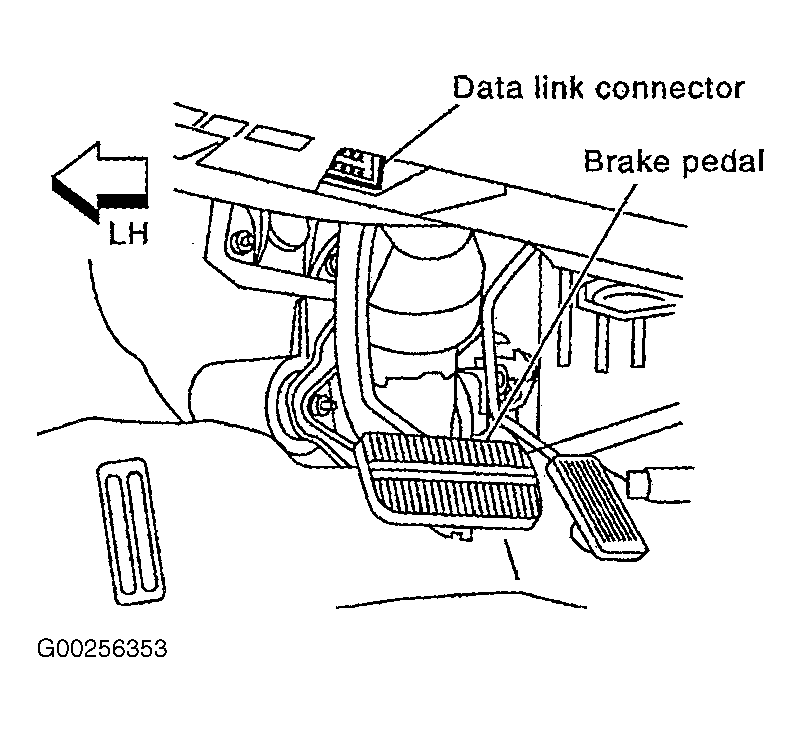

Fig 5: Locating Data Link Connector

G00256353

Courtesy of NISSAN MOTOR CO., U.S.A.

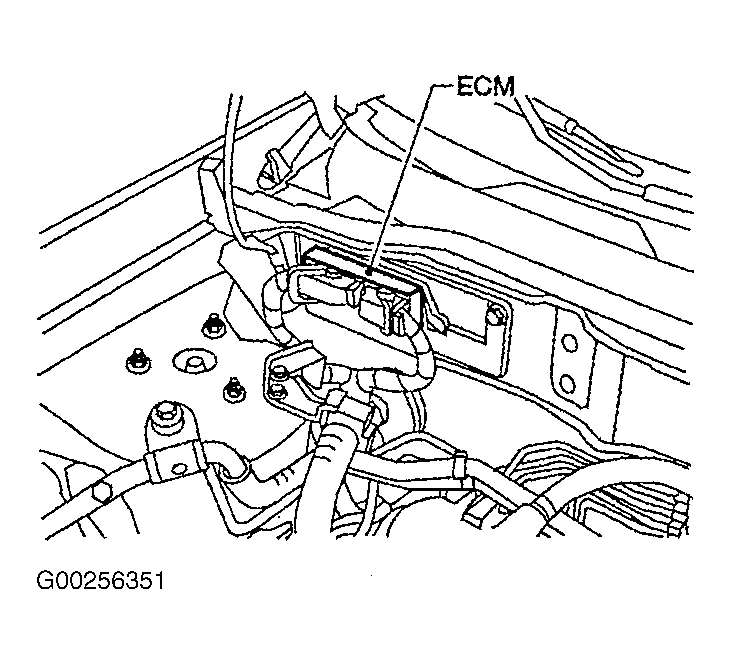

Fig 6: Locating ECM

G00256351

Courtesy of NISSAN MOTOR CO., U.S.A.

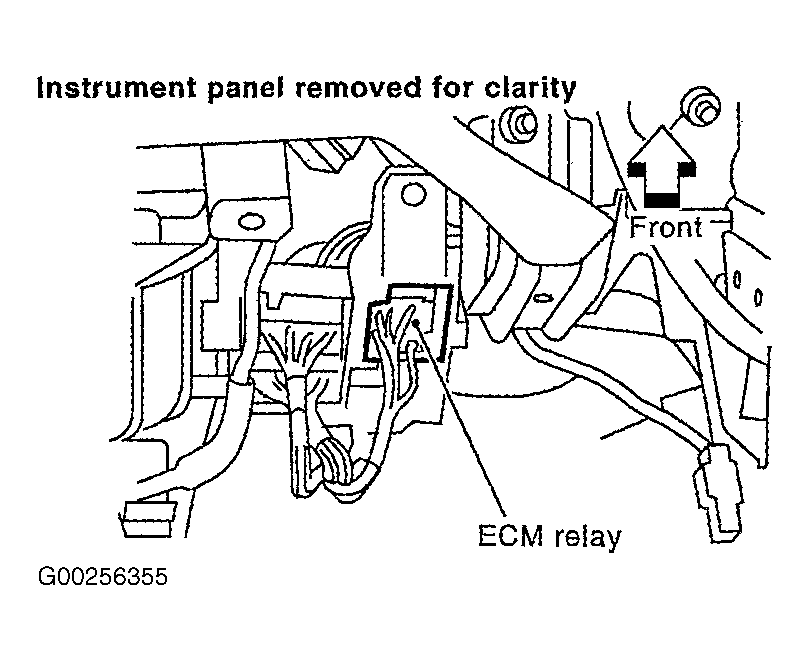

Fig 7: Locating ECM Relay

G00256355

Courtesy of NISSAN MOTOR CO., U.S.A.

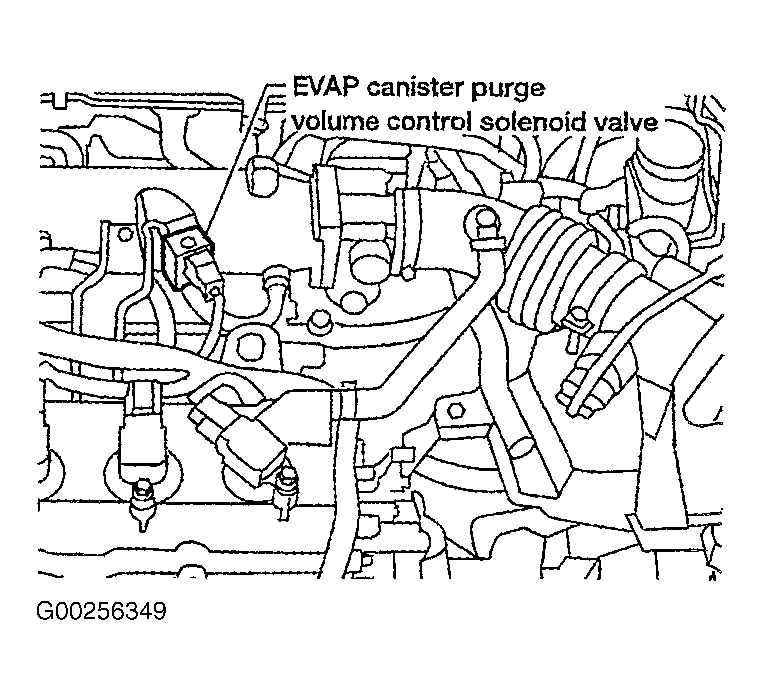

Fig 8: Locating EVAP Canister Purge Volume Control Solenoid Valve

G00256349

Courtesy of NISSAN MOTOR CO., U.S.A.

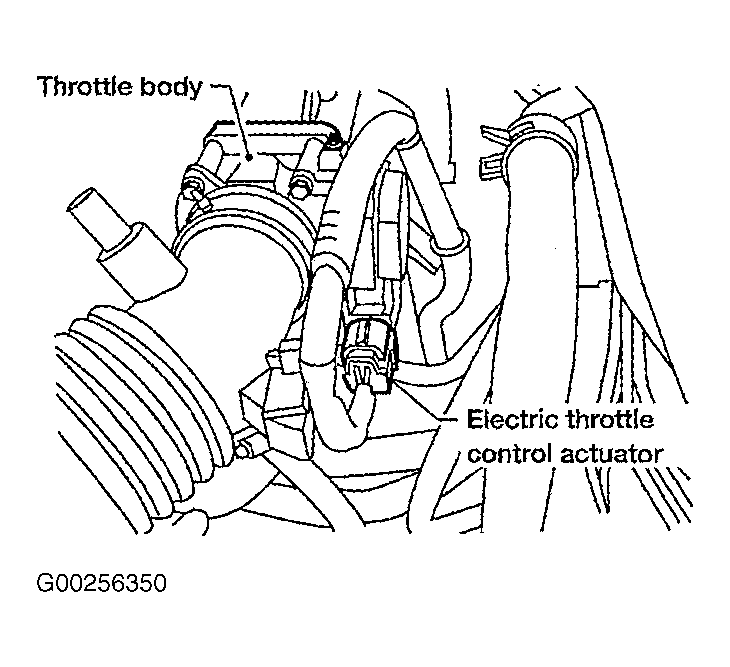

Fig 9: Locating Electric Throttle Control Actuator

G00256350

Courtesy of NISSAN MOTOR CO., U.S.A.

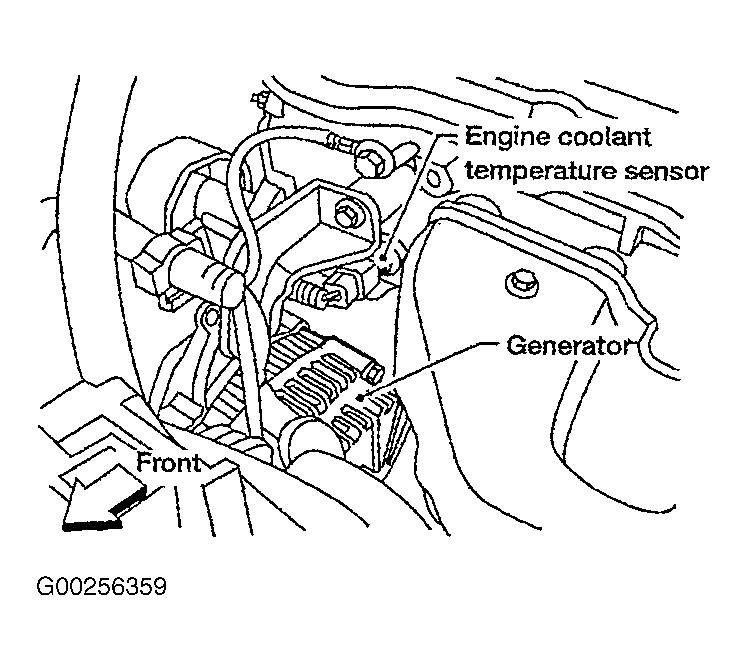

Fig 10: Locating Engine Coolant Temperature Sensor

G00256359

Courtesy of NISSAN MOTOR CO., U.S.A.

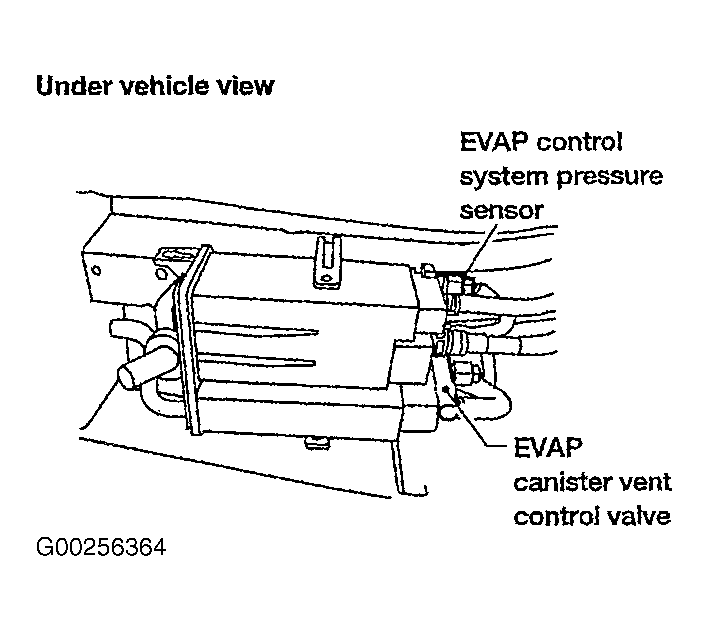

Fig 11: Locating EVAP Control System Pressure Sensor

G00256364

Courtesy of NISSAN MOTOR CO., U.S.A.

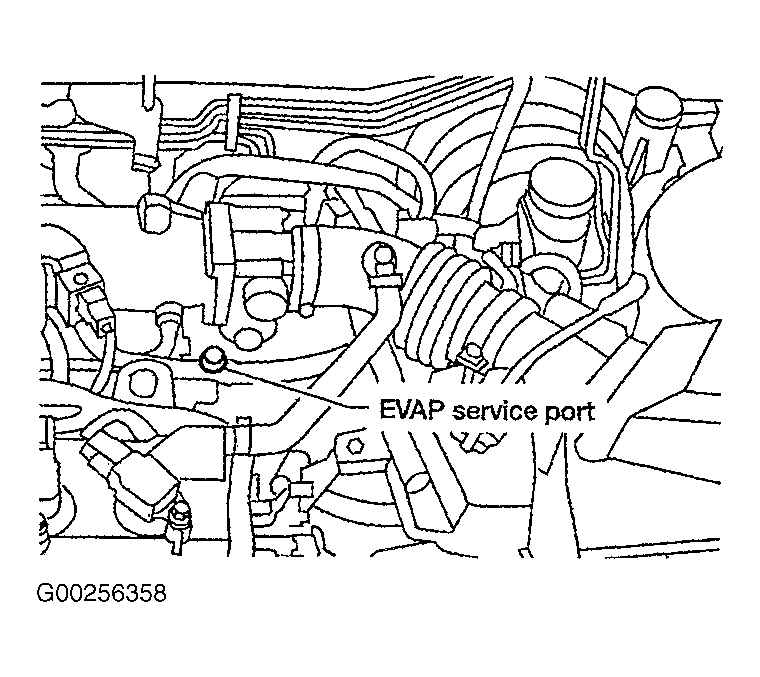

Fig 12: Locating EVAP Service Port

G00256358

Courtesy of NISSAN MOTOR CO., U.S.A.

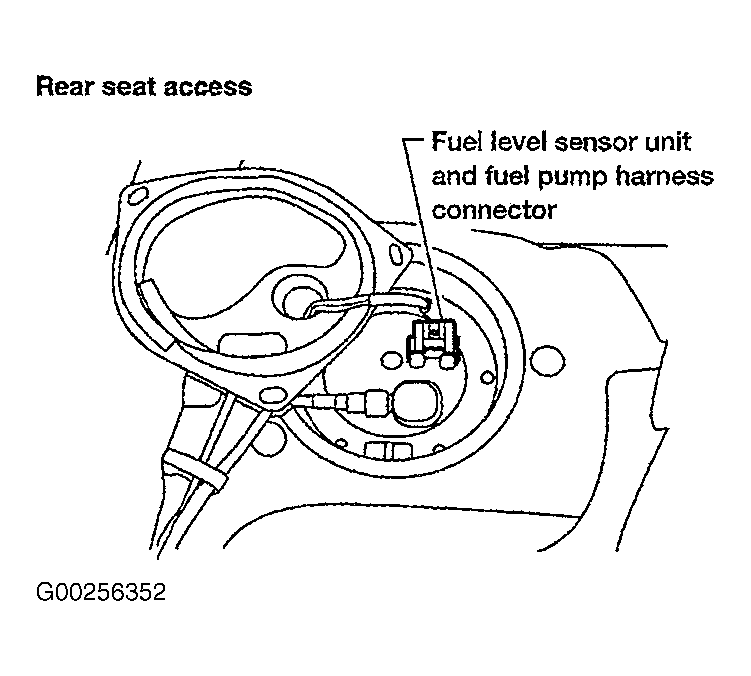

Fig 13: Locating Fuel Level Sensor Unit

G00256352

Courtesy of NISSAN MOTOR CO., U.S.A.

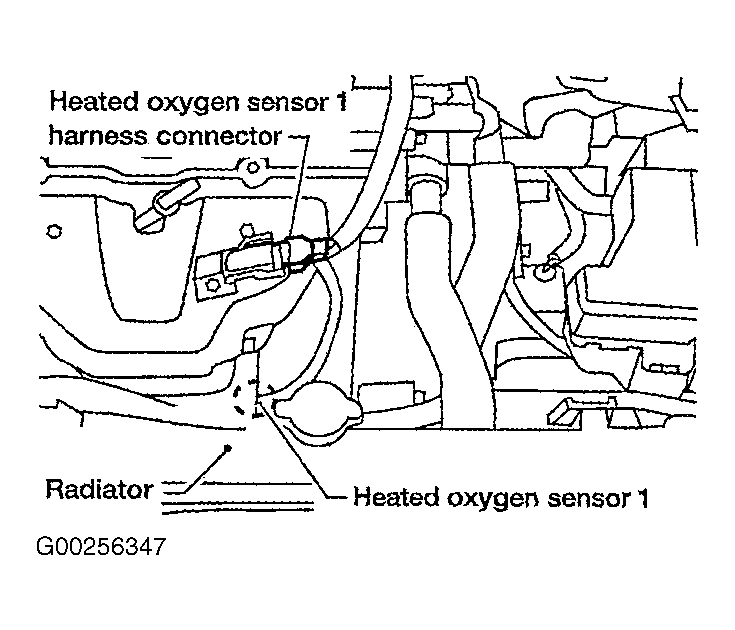

Fig 14: Locating Heated Oxygen Sensor 1

G00256347

Courtesy of NISSAN MOTOR CO., U.S.A.

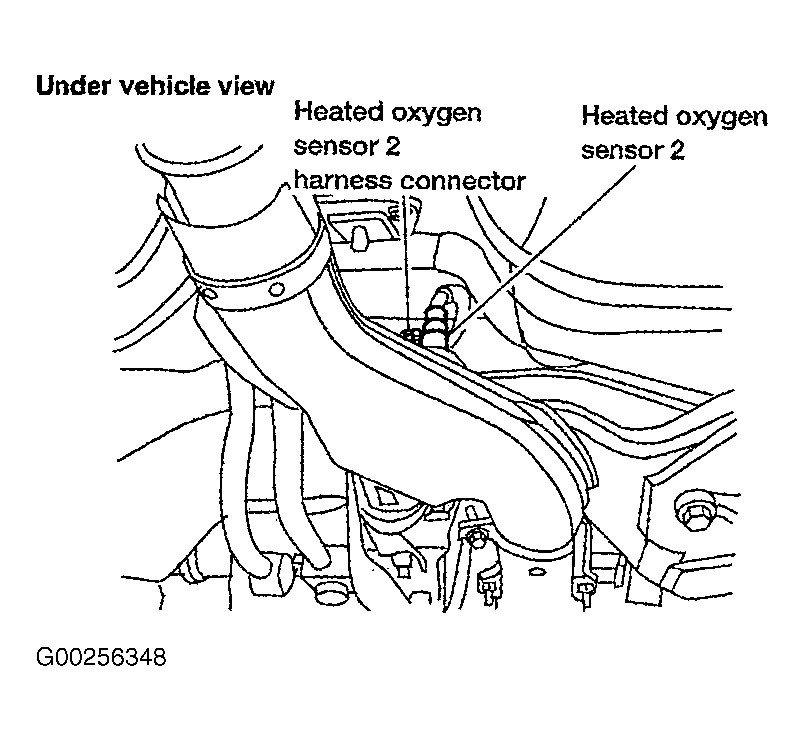

Fig 15: Locating Heated Oxygen Sensor 2

G00256348

Courtesy of NISSAN MOTOR CO., U.S.A.

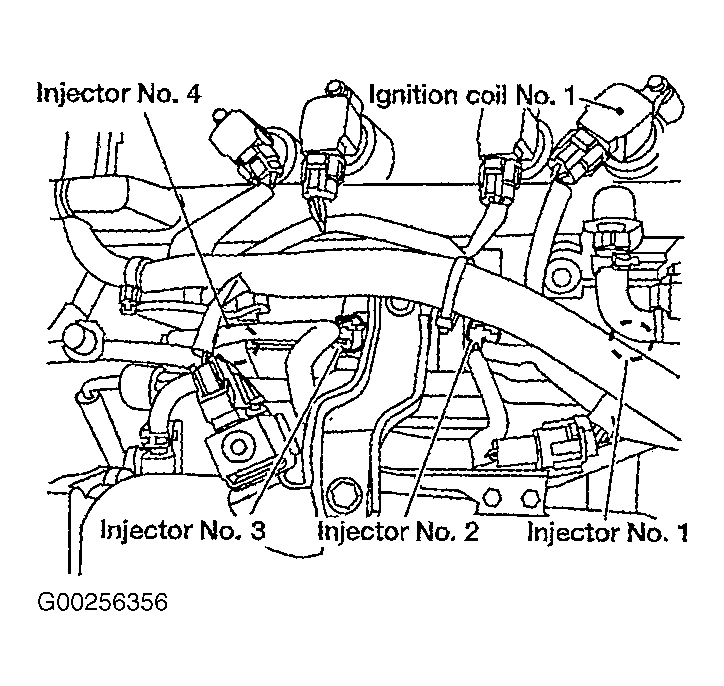

Fig 16: Locating Injectors

G00256356

Courtesy of NISSAN MOTOR CO., U.S.A.

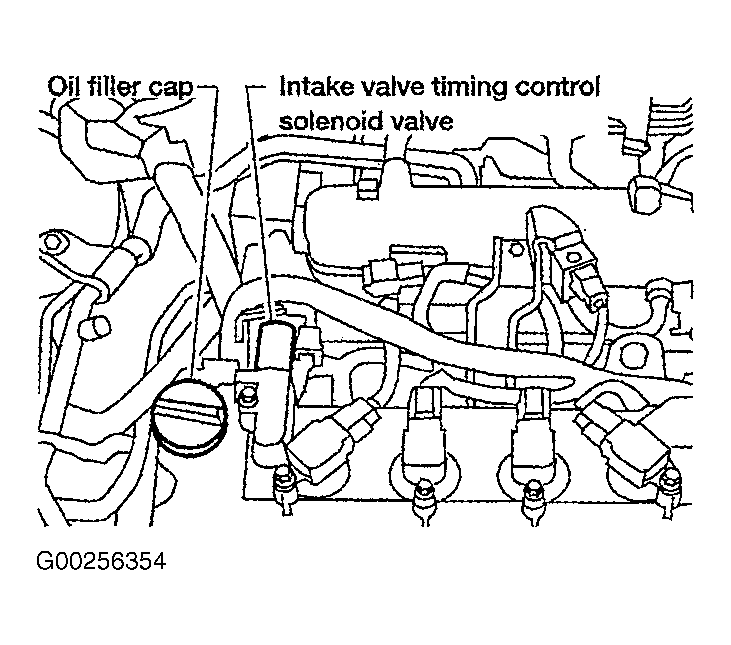

Fig 17: Locating Intake Valve Timing Control Solenoid Valve

G00256354

Courtesy of NISSAN MOTOR CO., U.S.A.

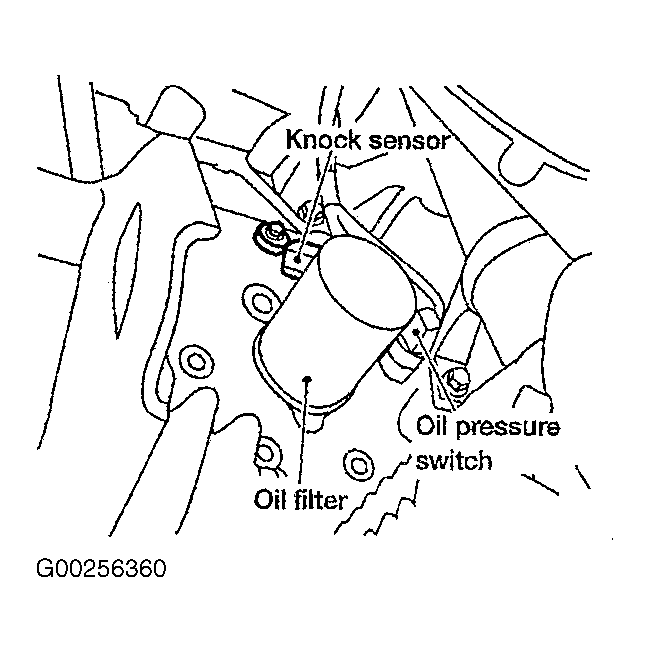

Fig 18: Locating Knock Sensor & Oil Pressure Switch

G00256360

Courtesy of NISSAN MOTOR CO., U.S.A.

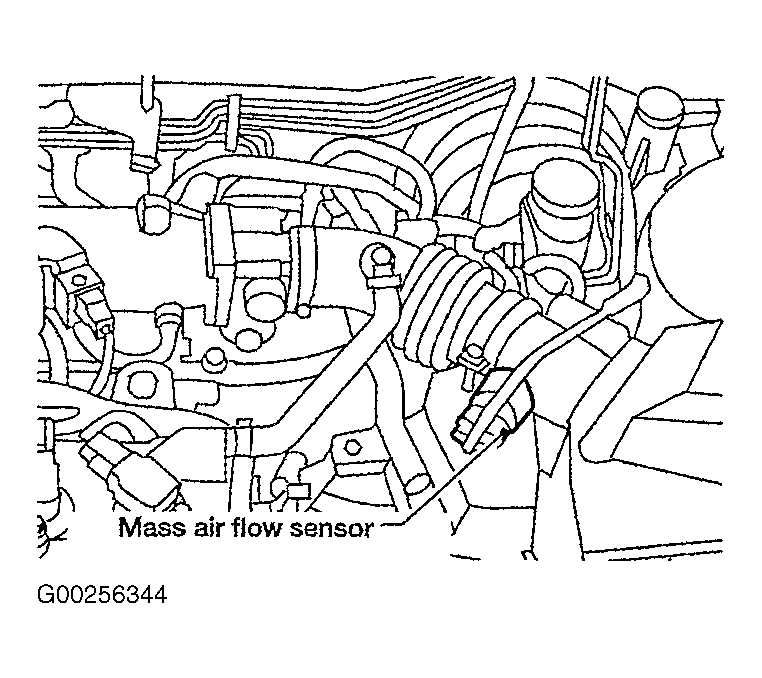

Fig 19: Locating Mass Airflow/IAT Sensor

G00256344

Courtesy of NISSAN MOTOR CO., U.S.A.

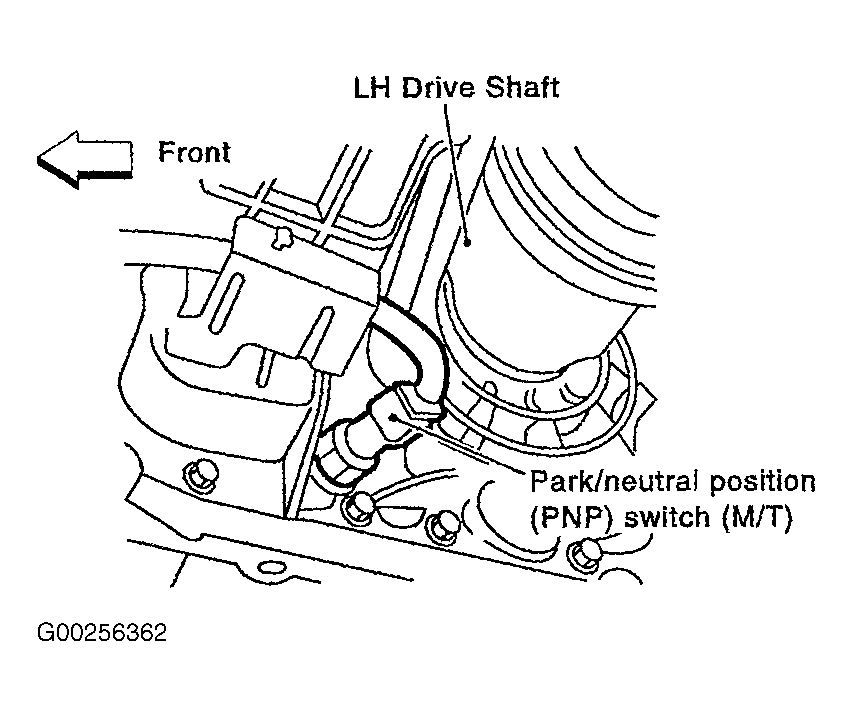

Fig 20: Locating Park/Neutral Position Switch (M/T)

G00256362

Courtesy of NISSAN MOTOR CO., U.S.A.

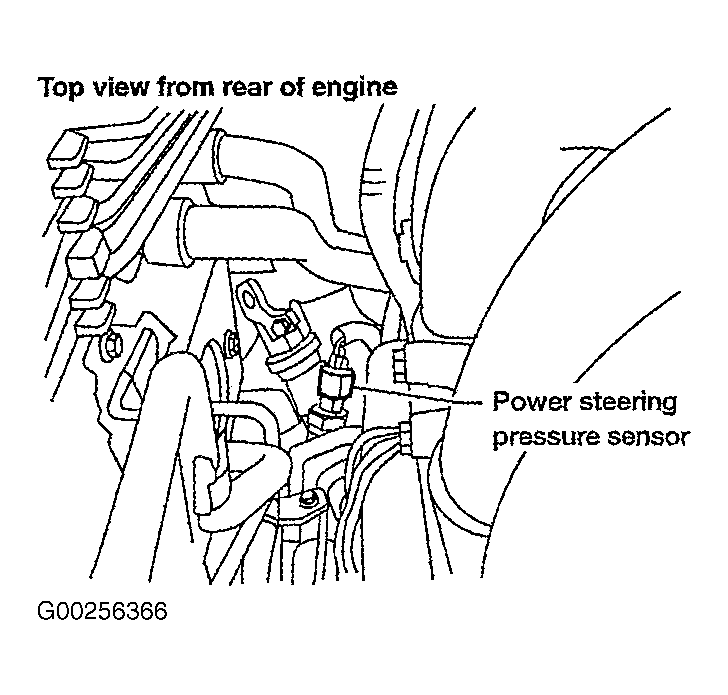

Fig 21: Locating Power Steering Pressure Sensor

G00256366

Courtesy of NISSAN MOTOR CO., U.S.A.

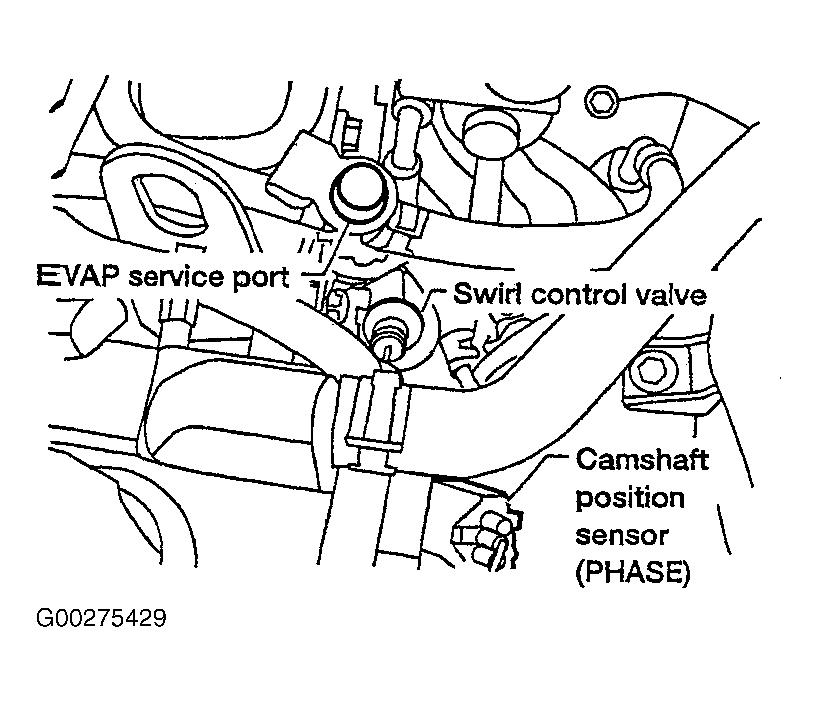

Fig 22: Locating Swirl Control Valve

G00275429

Courtesy of NISSAN MOTOR CO., U.S.A.

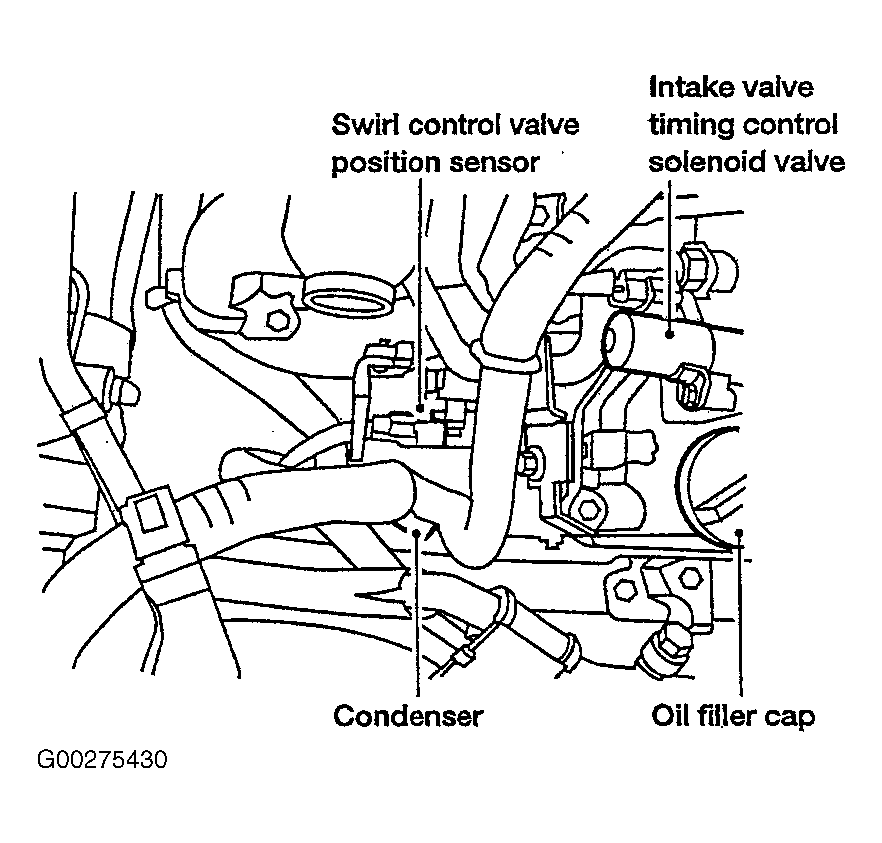

Fig 23: Locating Swirl Control Valve Position Sensor

G00275430

Courtesy of NISSAN MOTOR CO., U.S.A.

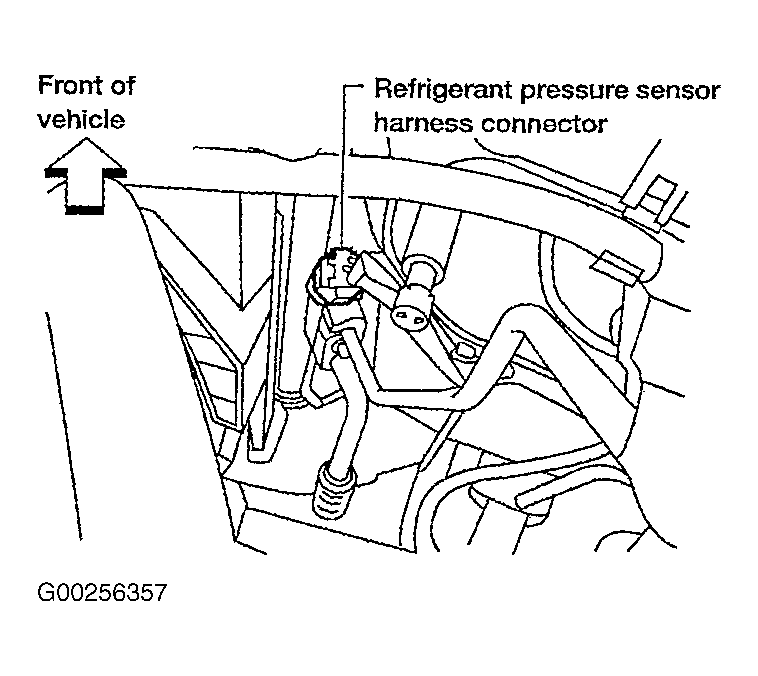

Fig 24: Locating Refrigerant Pressure Sensor

G00256357

Courtesy of NISSAN MOTOR CO., U.S.A.

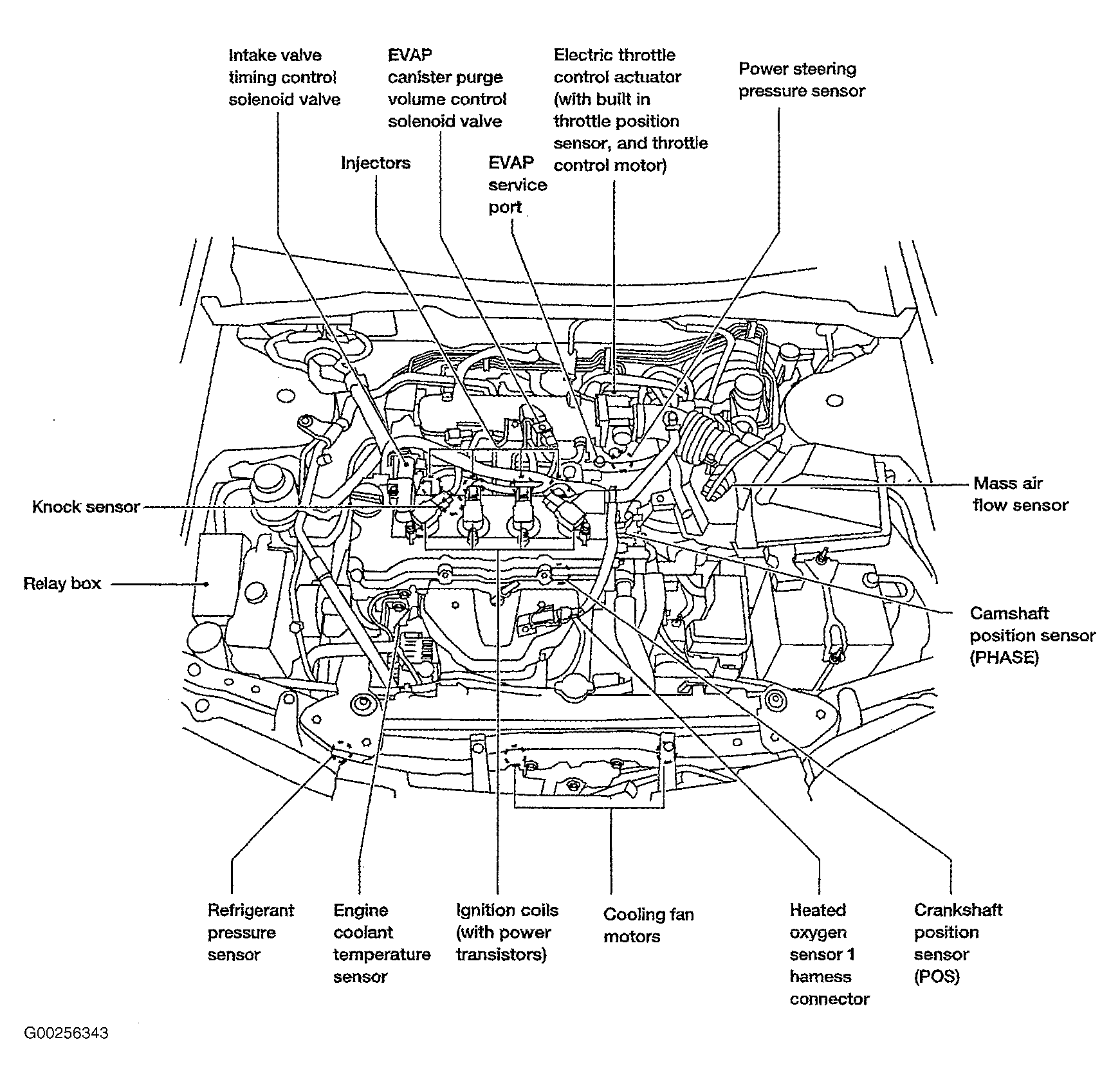

Fig 25: Identifying Under-Hood Component Locations (ULEV)

G00256343

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 26: Identifying Under-Hood Component Locations (SULEV)

G00272810

Courtesy of NISSAN MOTOR CO., U.S.A.

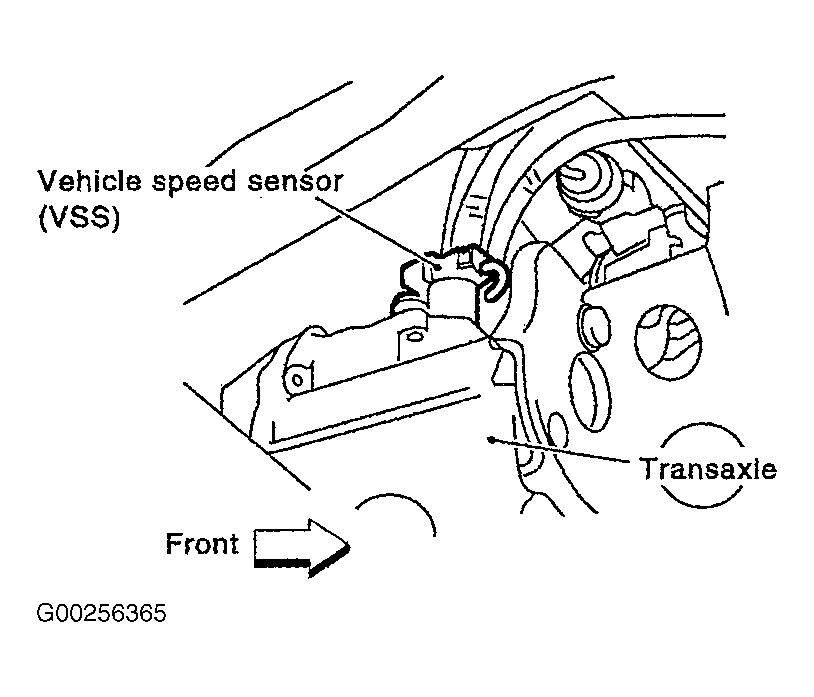

Fig 27: Locating Vehicle Speed Sensor (VSS)

G00256365

Courtesy of NISSAN MOTOR CO., U.S.A.

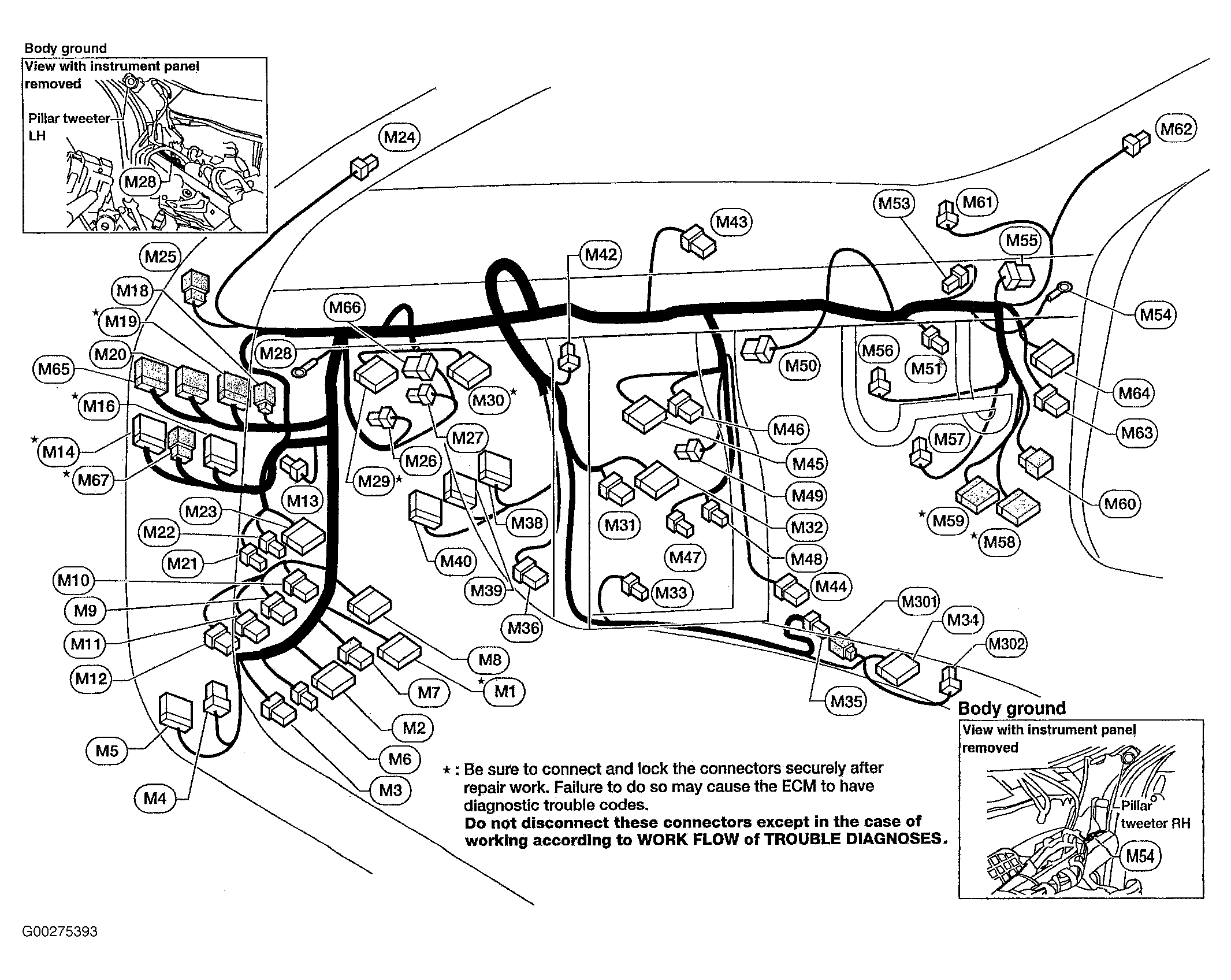

Fig 28: Locating Main Harness Connectors (1 Of 2)

G00275393

Courtesy of NISSAN MOTOR CO., U.S.A.

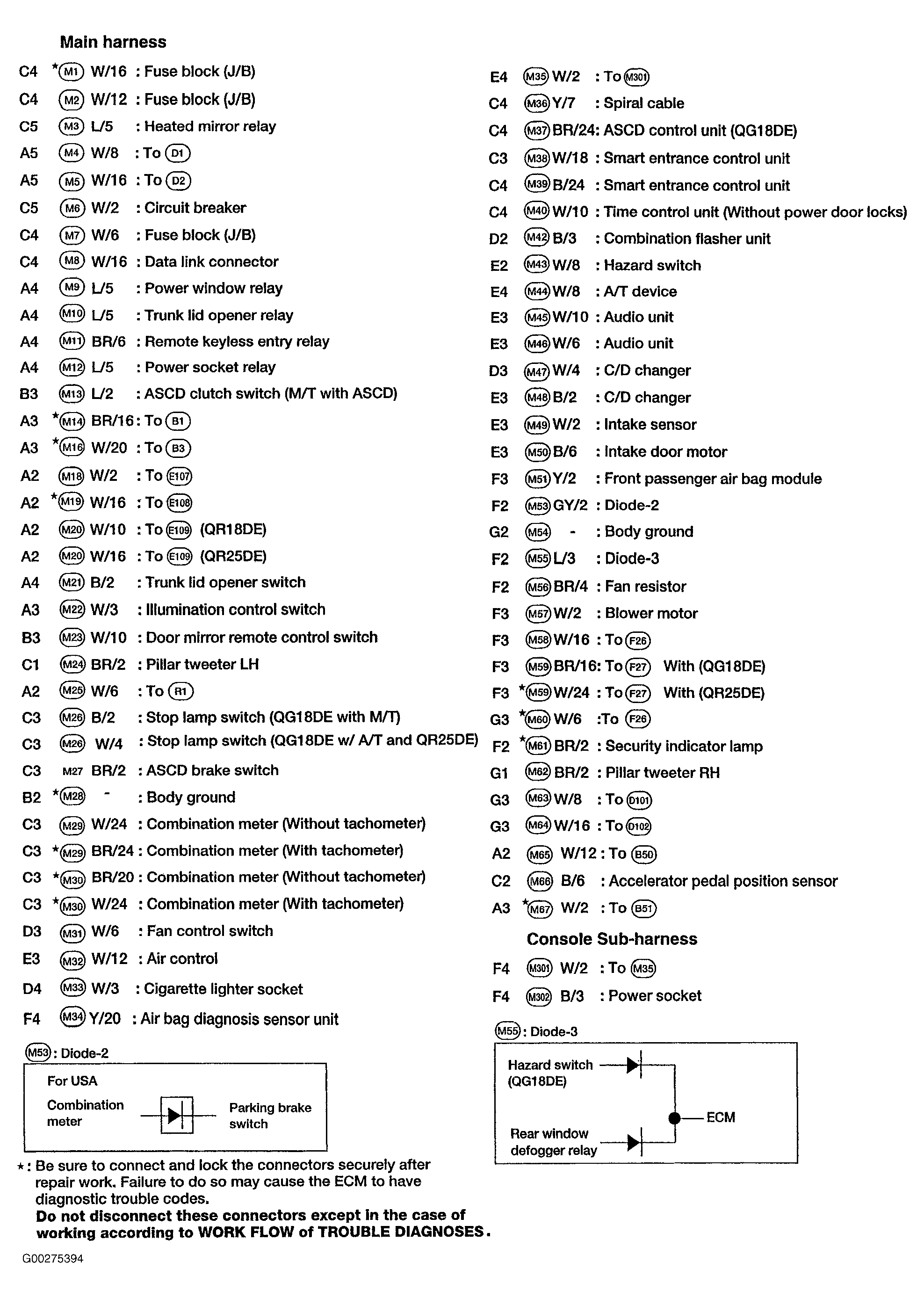

Fig 29: Locating Main Harness Connectors (2 Of 2)

G00275394

Courtesy of NISSAN MOTOR CO., U.S.A.

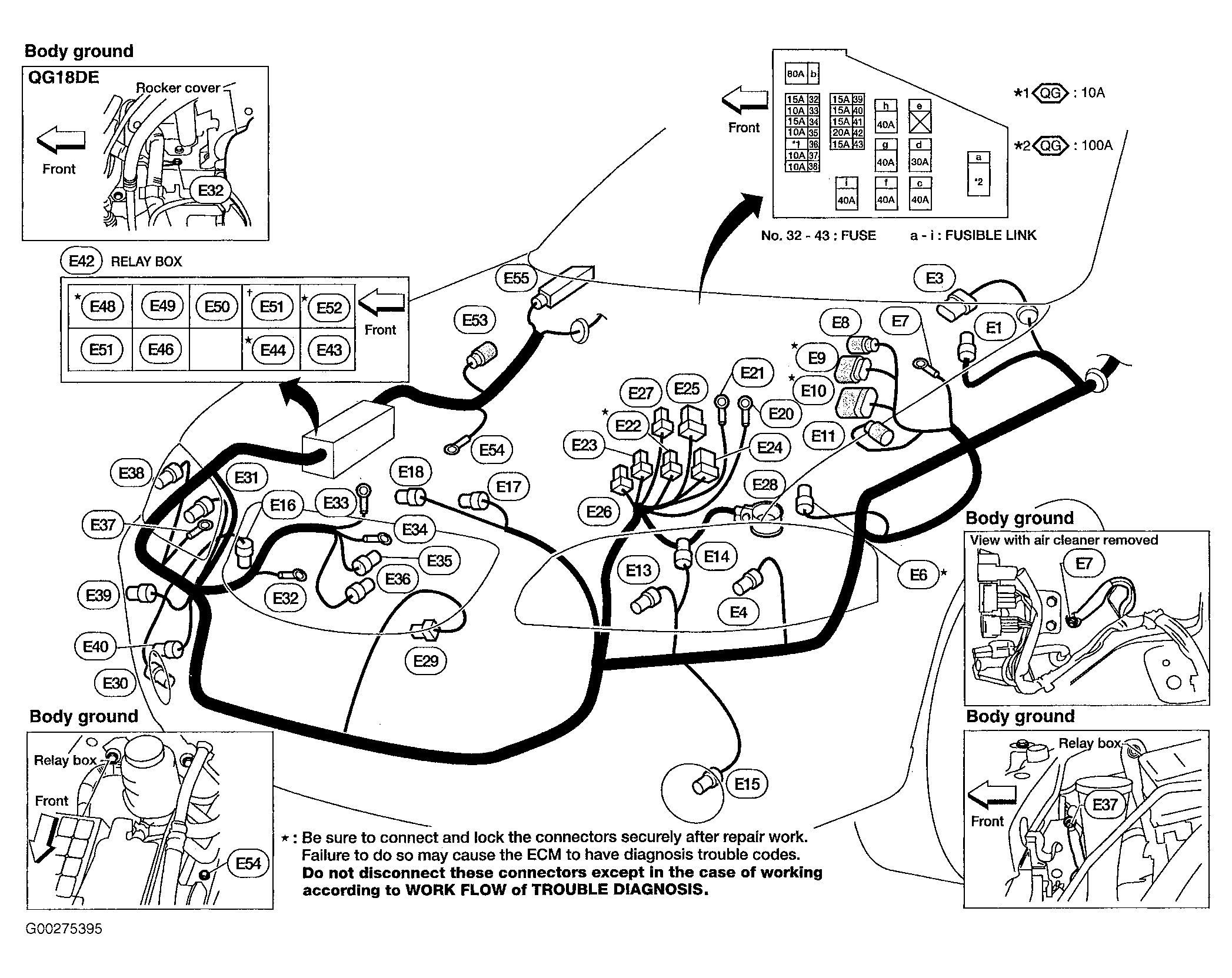

Fig 30: Locating Engine Room Harness, Connectors, Fuse & Relay Box, & Body Grounds (1 Of 2)

G00275395

Courtesy of NISSAN MOTOR CO., U.S.A.

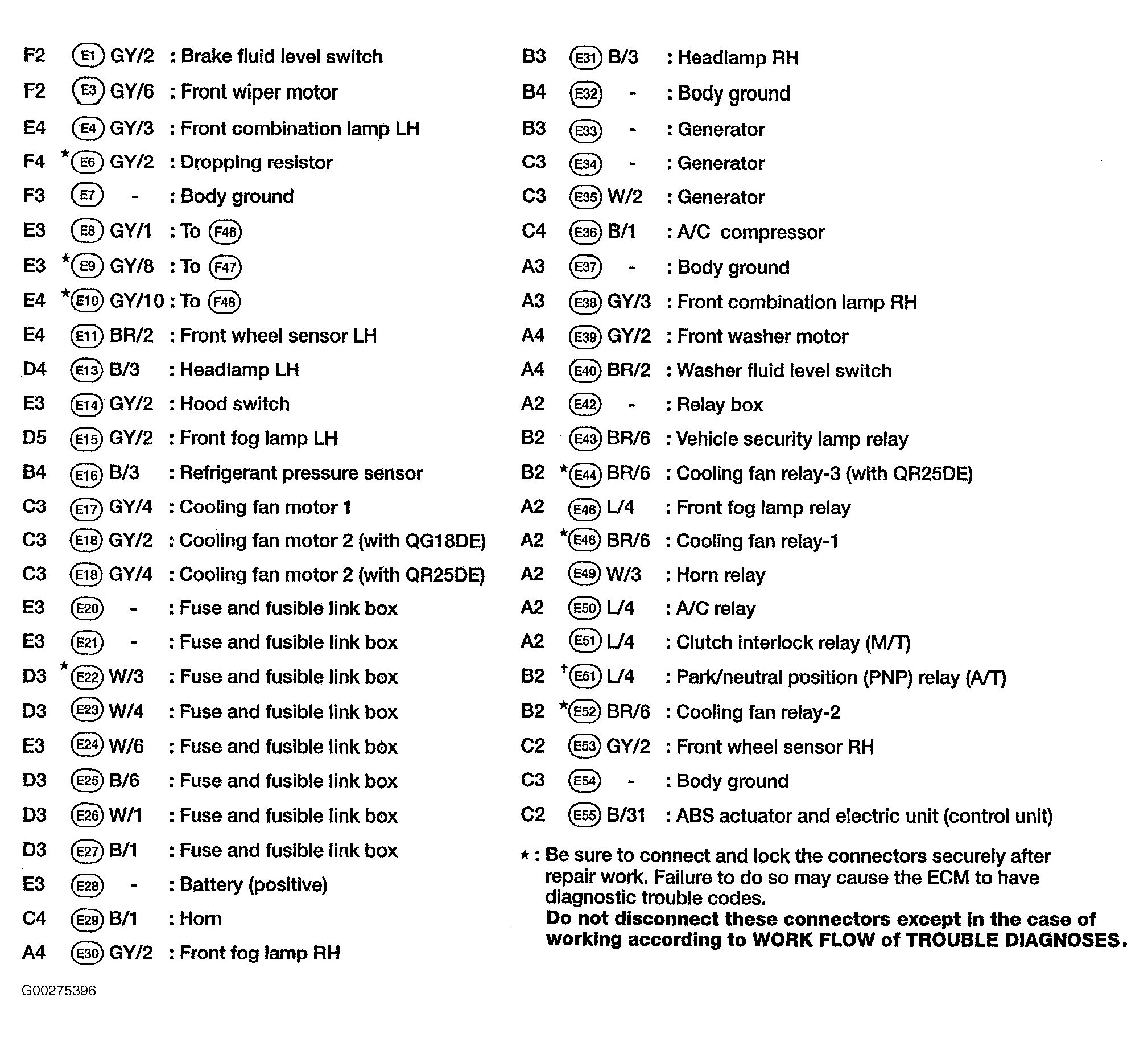

Fig 31: Locating Engine Room Harness, Connectors, Fuse & Relay Box, & Body Grounds (2 Of 2)

G00275396

Courtesy of NISSAN MOTOR CO., U.S.A.
