Pathfinder SE, RWD
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Remote Keyless Entry System
>>
Keyless Entry Wiring Diagram
Keyless Entry Wiring Diagram

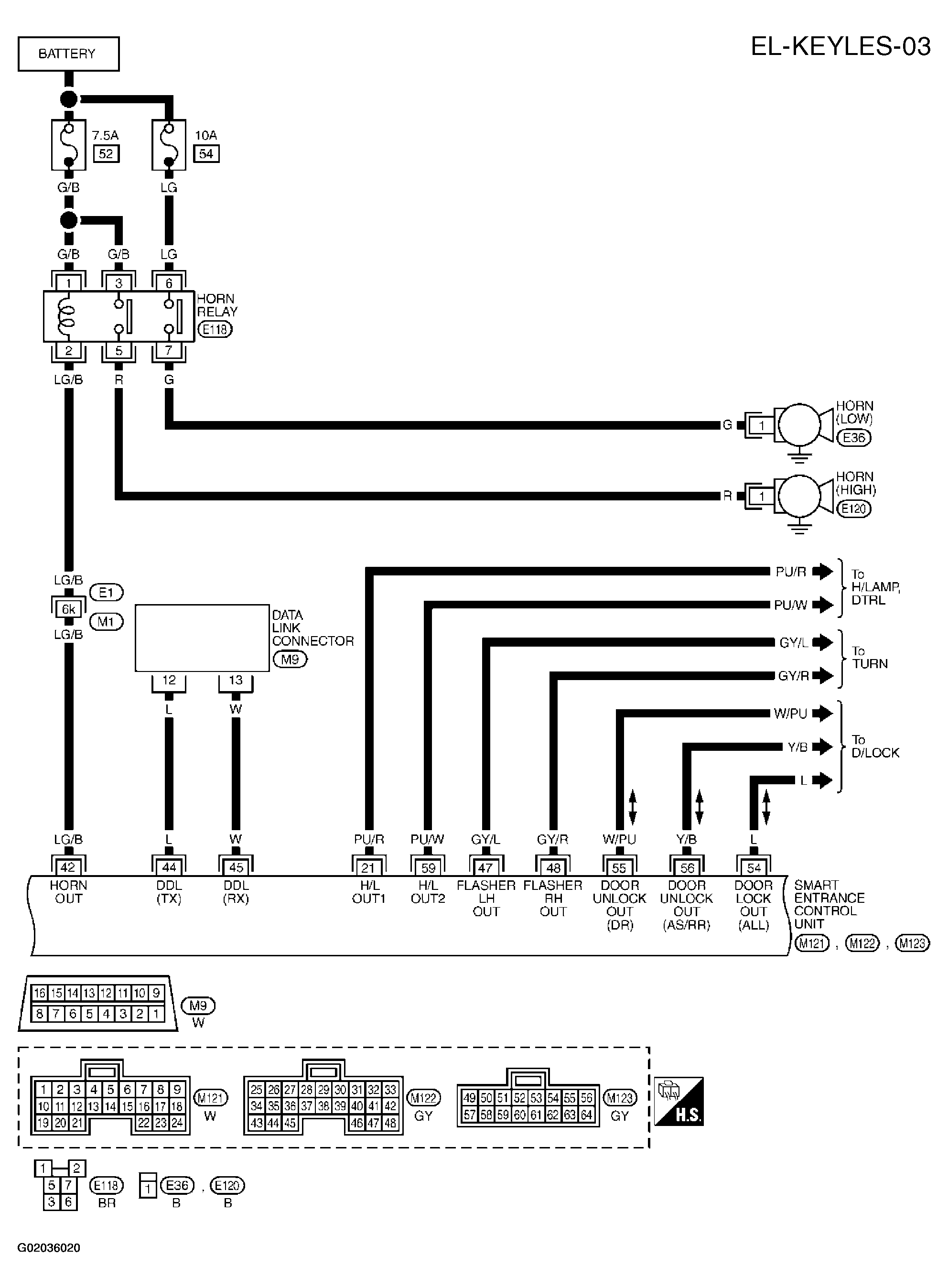

Fig 1: Remote Keyless Entry Wiring Diagram ( 1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

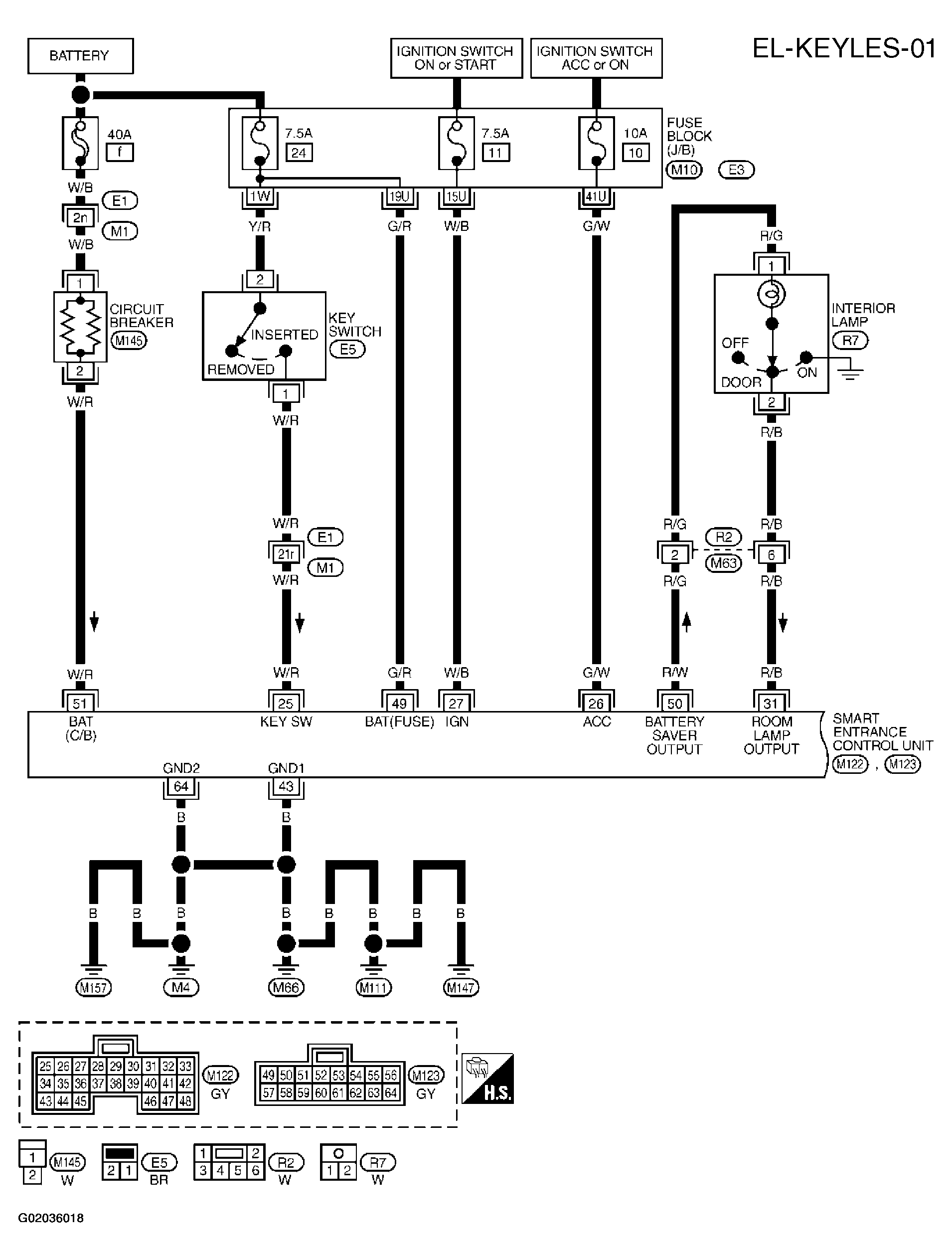

Fig 2: Remote Keyless Entry Wiring Diagram (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

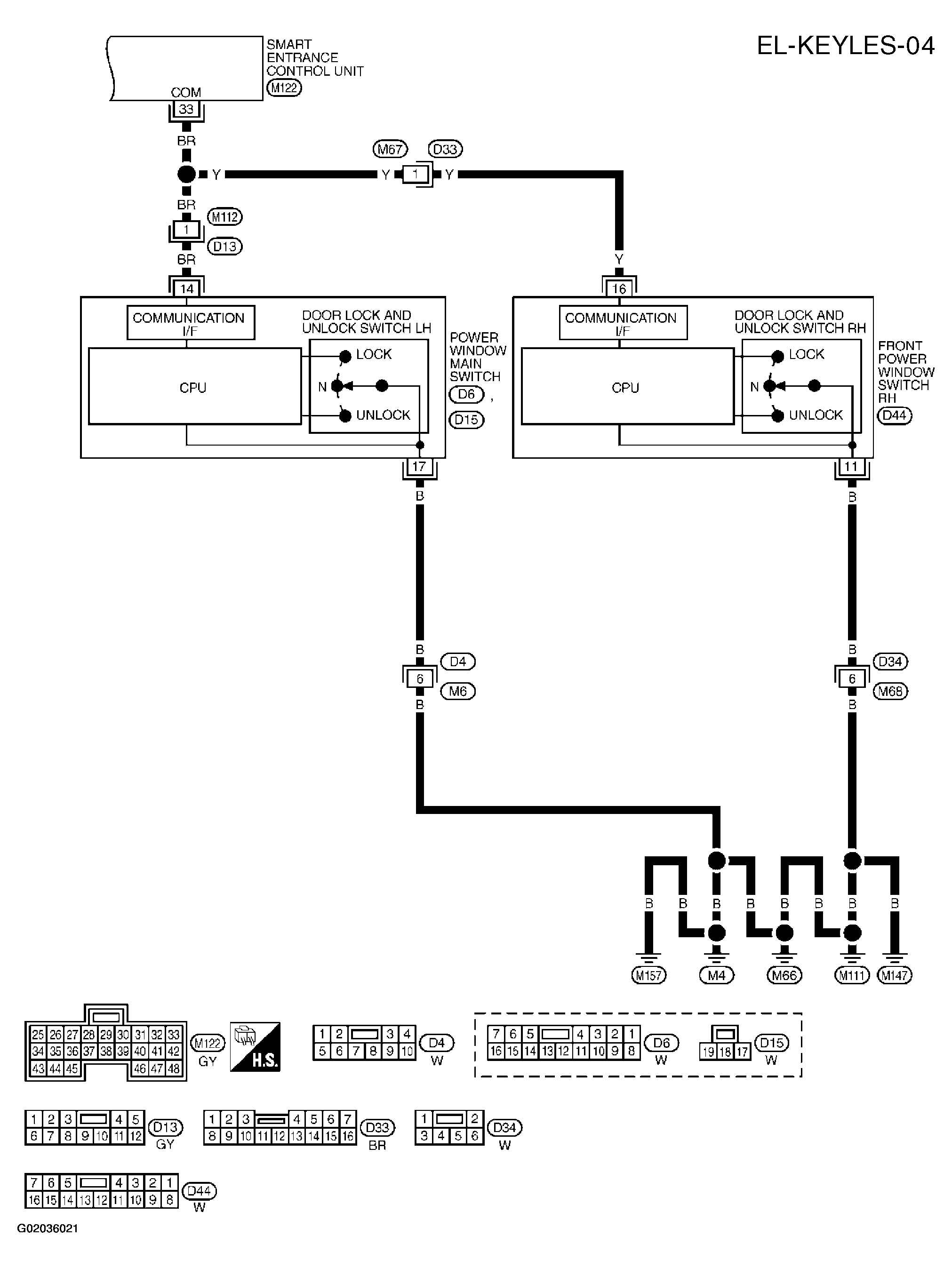

Fig 3: Remote Keyless Entry Wiring Diagram (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 4: Remote Keyless Entry Wiring Diagram (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
