CONSULT-II Application Items
>>
"Multi Remote ENT"
>>
Work Support
Work Support

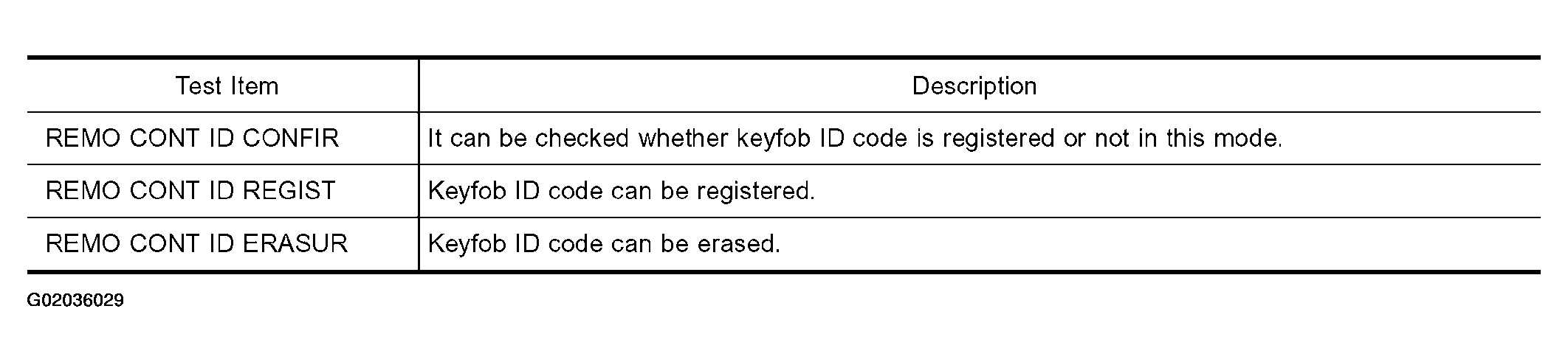

Fig 1: MULTI REMOTE ENT - Work Support (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

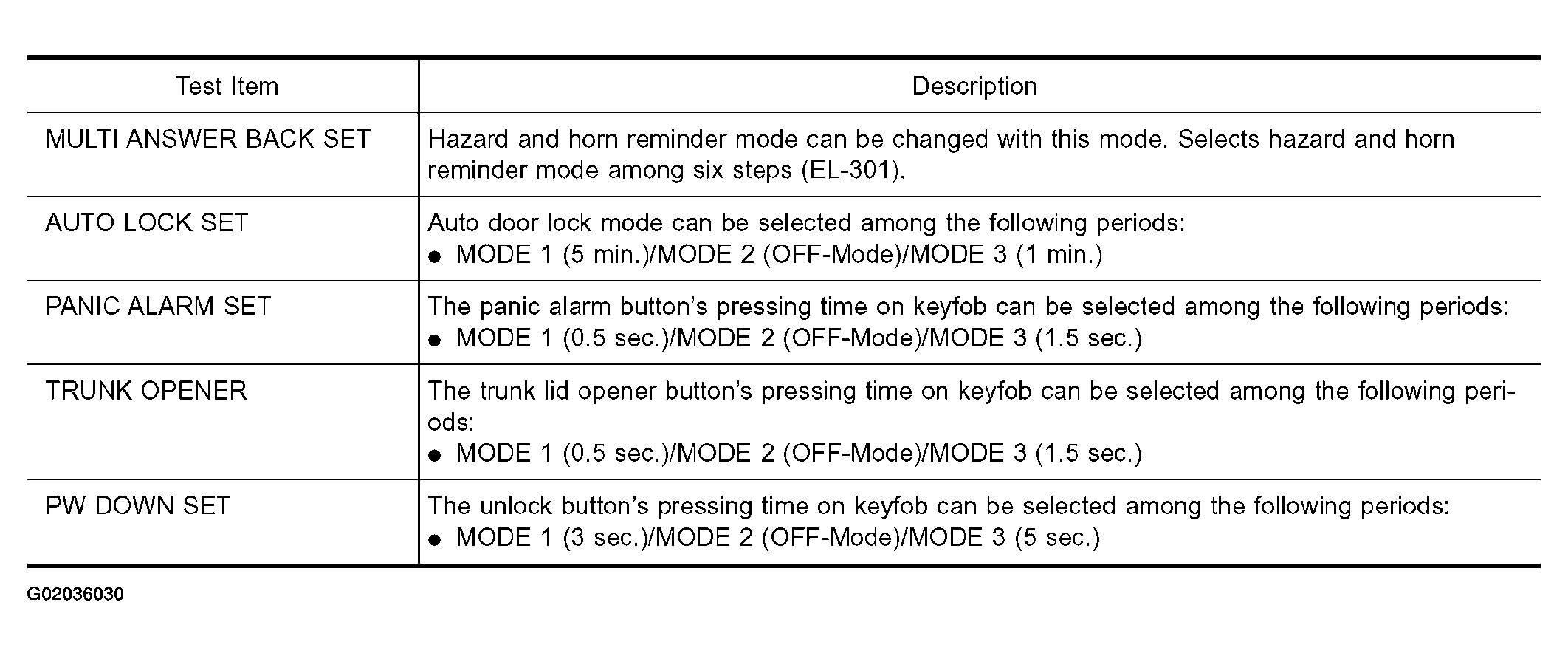

Fig 2: MULTI REMOTE ENT - Work Support (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
Even though TRUNK OPENER is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.
