Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Component Location

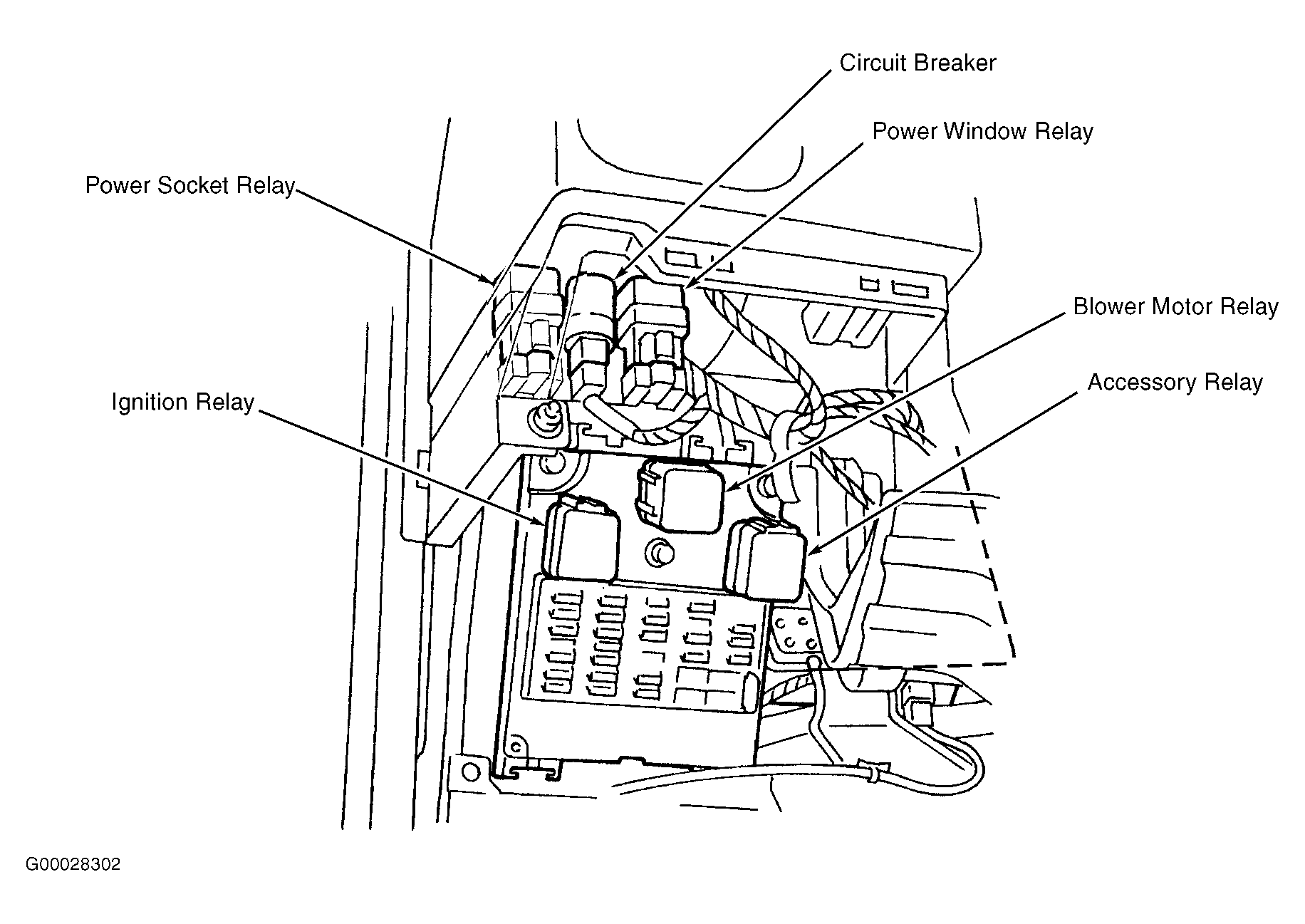

Circuit Breaker On top of fuse block (J/B). See Figure .

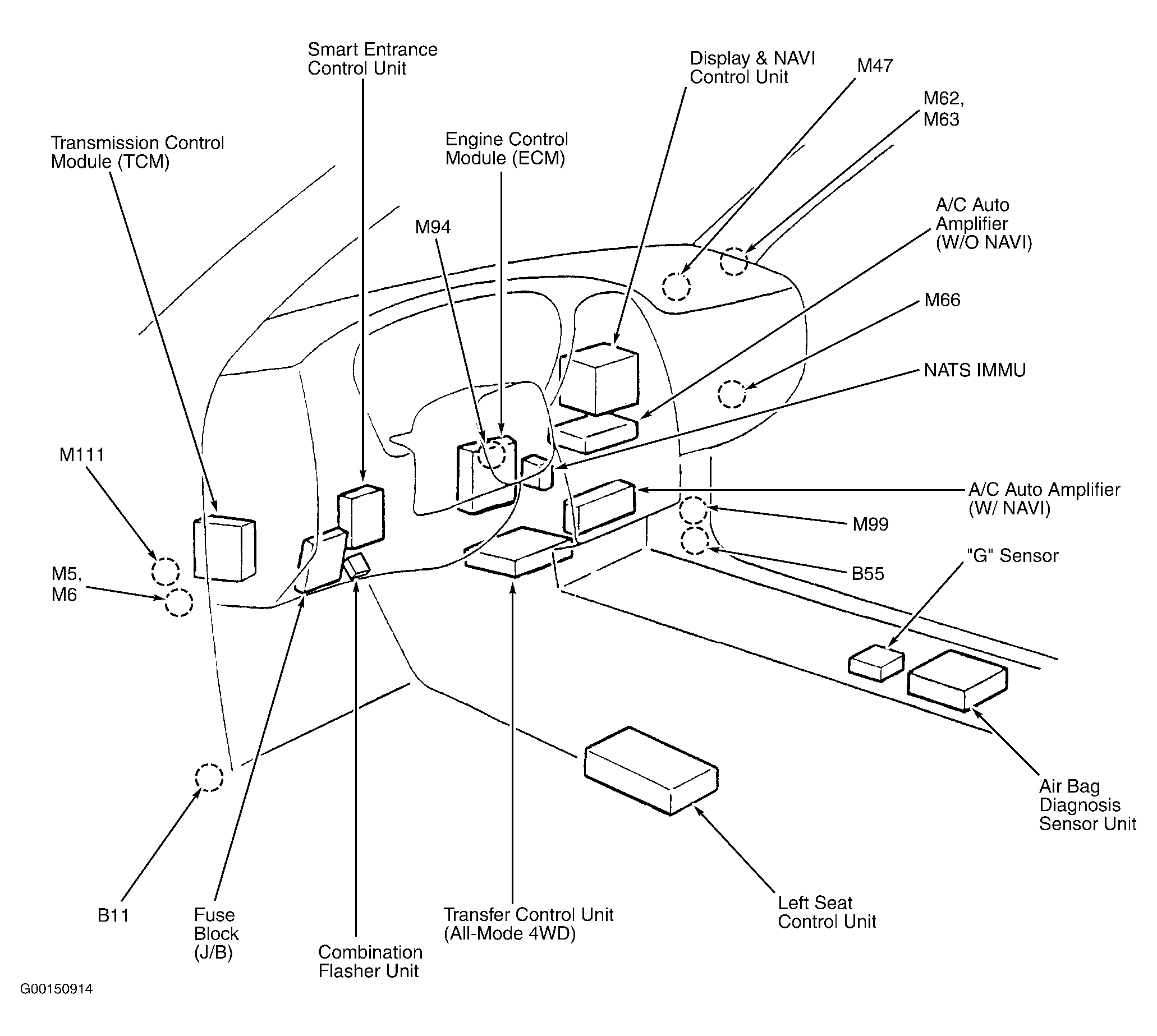

Fuse Block (J/B) Behind dash, left of steering column. See Figure .

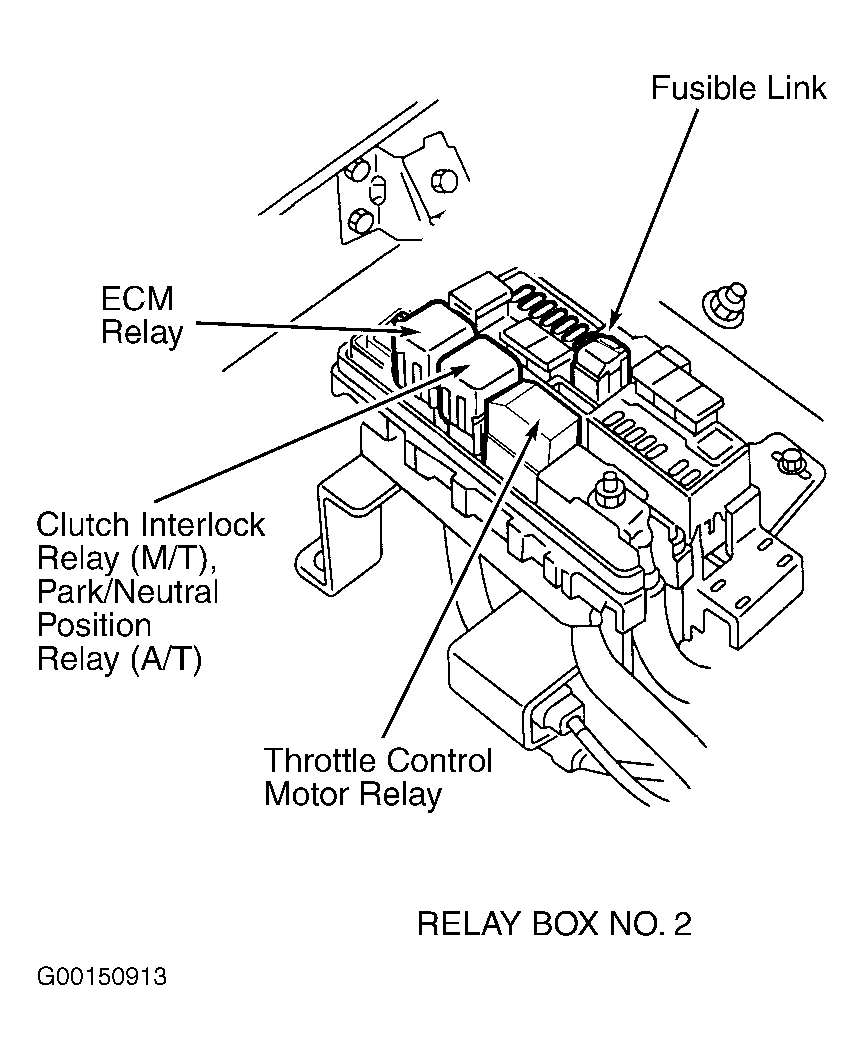

Fusible Link In relay box No. 2. See Figure .

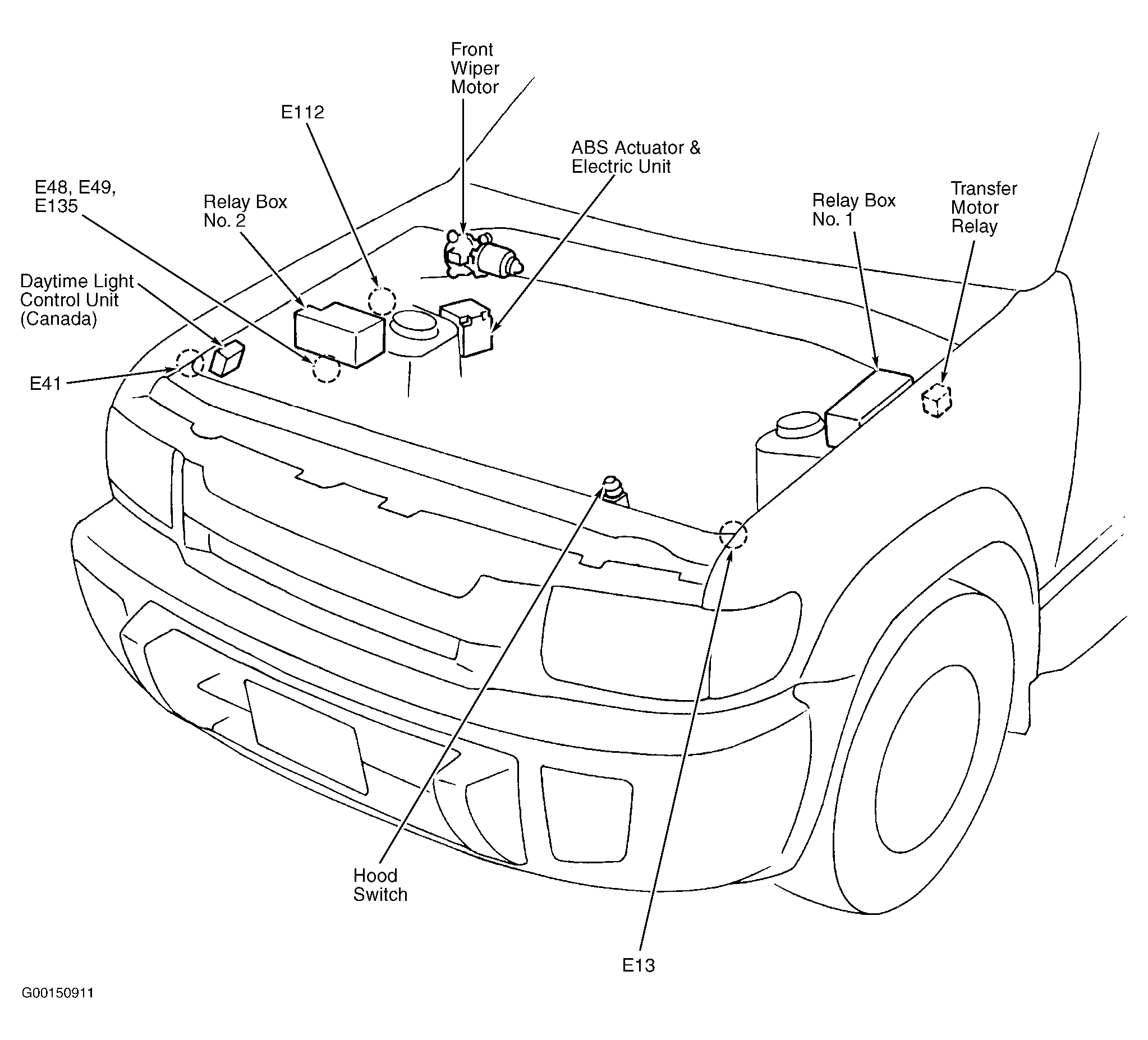

Relay Box No. 1 On left front fenderwell. See Figure .
Relay Box No. 2 On right front fenderwell. See Figure .
