Remote Keyless Entry System: Schematic

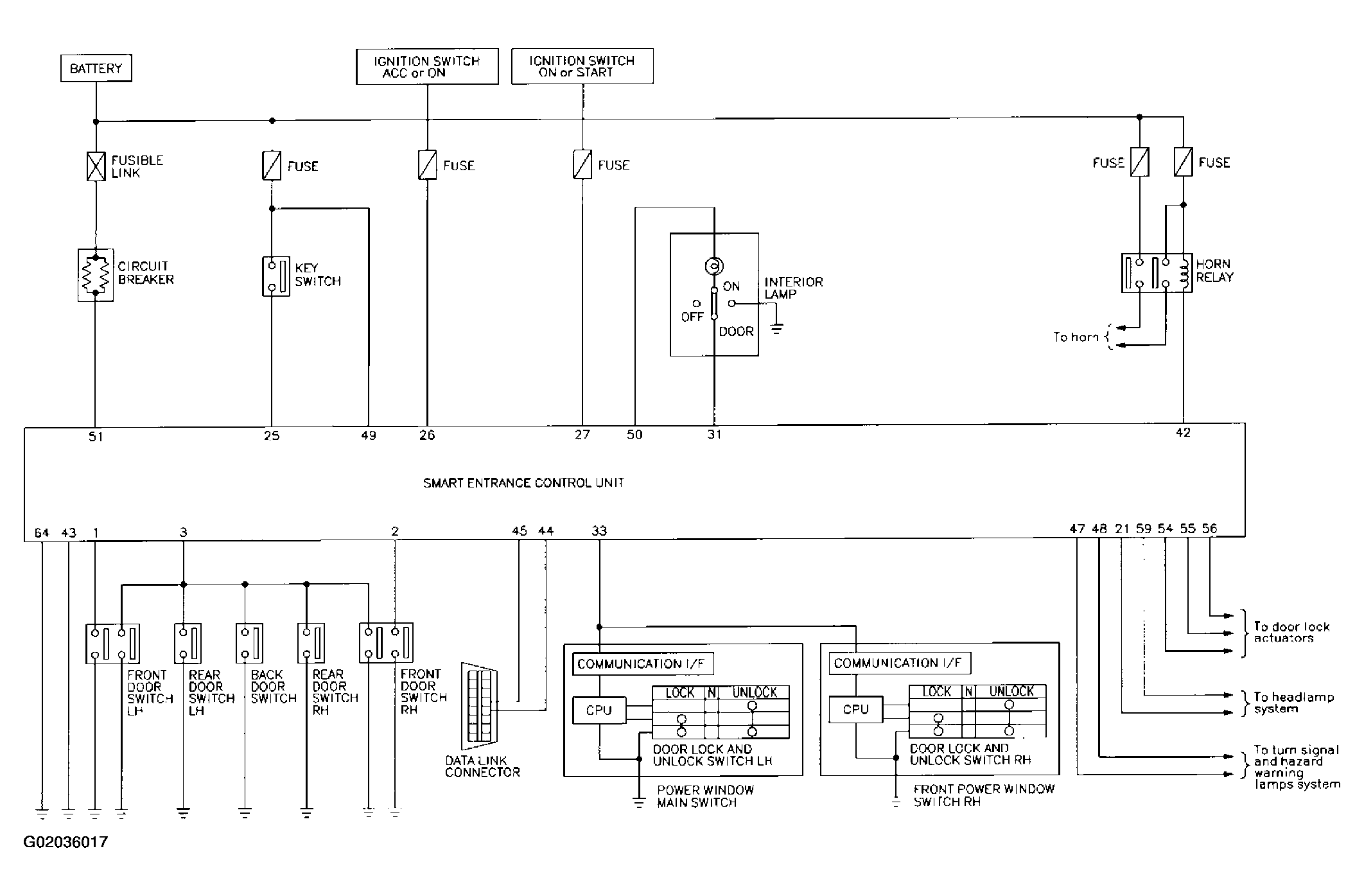

Fig 1: Remote Keyless Entry System Schematic

G02036017

Courtesy of NISSAN MOTOR CO., U.S.A.
