KEYFOB Id Set Up With Consult-II

NOTE: If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. When the ID code of a lost keyfob is not known, all keyfob ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new keyfob must be re-registered.

Turn ignition switch "OFF".
Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

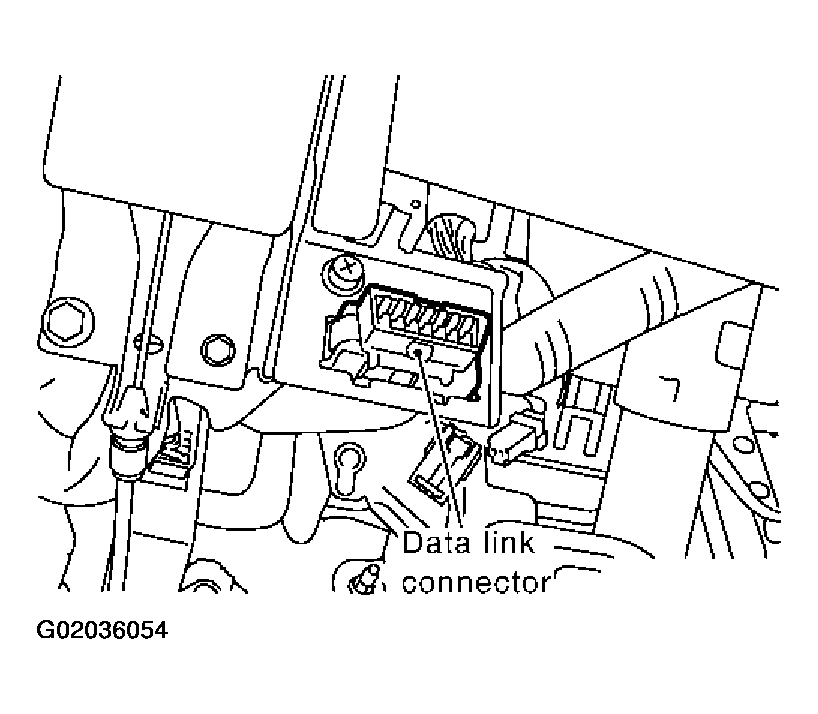

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch "ON".
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SMART ENTRANCE". If "SMART ENTRANCE" is not indicated, go to CONSULT-II .

Fig 3: CONSULT-II Display - SMART ENTRANCE
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "MULTI REMOTE ENT".

Fig 4: CONSULT-II Display - MULTI REMOTE ENT
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WORK SUPPORT".

Fig 5: CONSULT-II Display - WORK SUPPORT
Courtesy of NISSAN MOTOR CO., U.S.A.
The items are shown on the figure at left can be set up.
- "REMO CONT ID CONFIR"
  Use this mode to confirm if a keyfob ID code is registered or not.
- "REMO CONT ID REGIST"
  Use this mode to register a keyfob ID code.

  Fig 6: CONSULT-II Display - REMO CONT ID REGIST And REMO CONT ID CONFIR
  Courtesy of NISSAN MOTOR CO., U.S.A.

  NOTE: Register the ID code when keyfob or smart entrance control unit is replaced, or when additional keyfob is required.
  - "REMO CONT ID ERASUR"
    Use this mode to erase a keyfob ID code.

    Refer to the WORK SUPPORT , "WORK SUPPORT " in "CONSULT-II Application Items" for the following items.
  - "MULTI ANSWER BACK SET"
  - "AUTO LOCK SET"
  - "PANIC ALARM SET"
  - "TRUNK OPENER"
  - "PW DOWN SET"

NOTE: Even though TRUNK OPENER is actually displayed on the CONSULT-II screen, it is not equipped, therefore, they cannot be activated.
