Transfer Assembly: Pre-Inspection: Backlash

  1. Install a bolt to the companion flange.
  2. Fit a dial gauge onto the bolt.

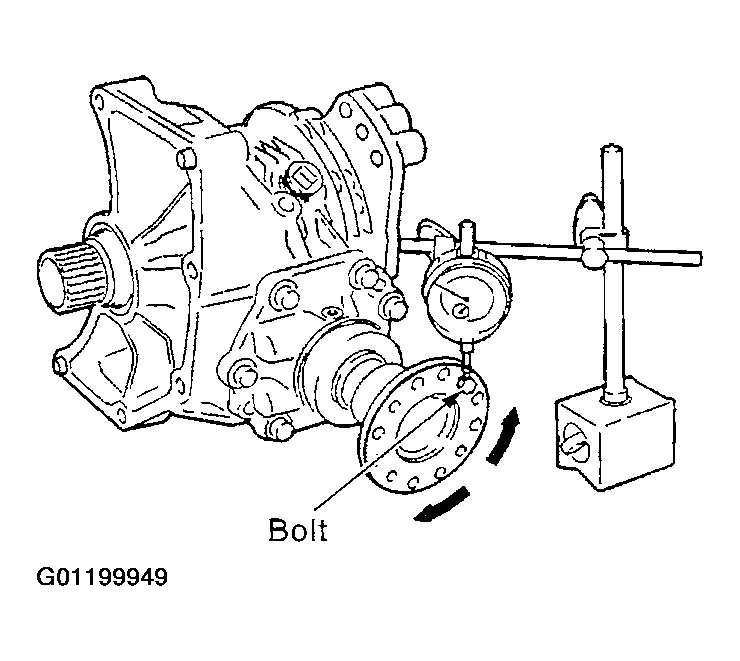

    Fig 1: Measuring Circumference Backlash Of Companion Flange
    G01199949Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Measure the circumference backlash of the companion flange, and make sure it satisfies the standard below.

    Backlash: 0.13 - 0.19 mm (0.0051 - 0.0075 in)

    • If measured value is out of the specification, disassemble it to check and adjust each part.
