CAN Communication Unit (ABS Models)
>>
Input/Output Signal Chart
Input/Output Signal Chart
T: Transmit R: Receive

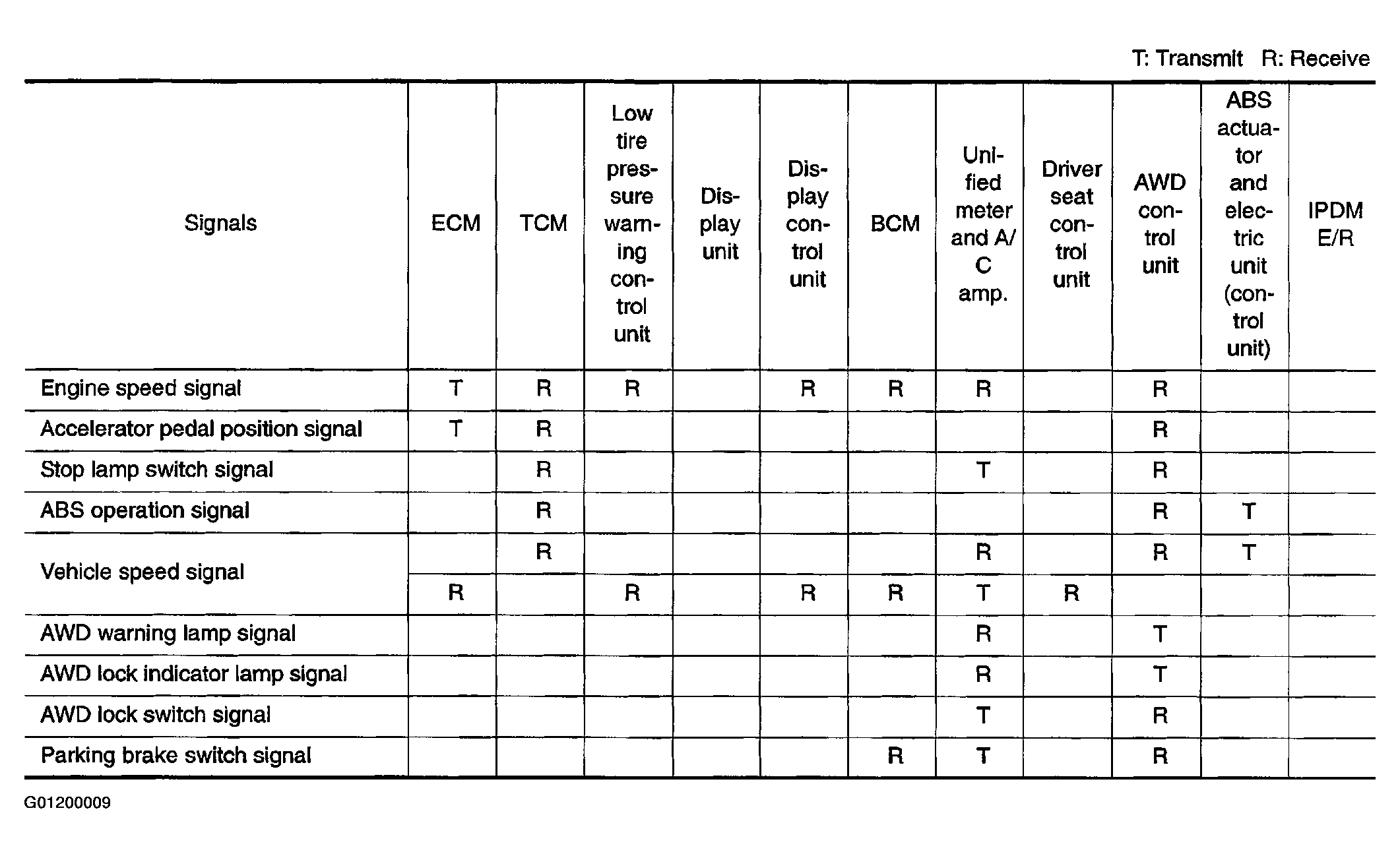

Fig 1: Input/Output Signal Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
