DTC P1564: ASCD Steering Switch

NOTE: Before performing diagnostic procedure, follow testing procedure. See TESTING PROCEDURE under SELF-DIAGNOSTIC SYSTEM.

For diagnostic procedures, see Fig 1-Fig 7 .

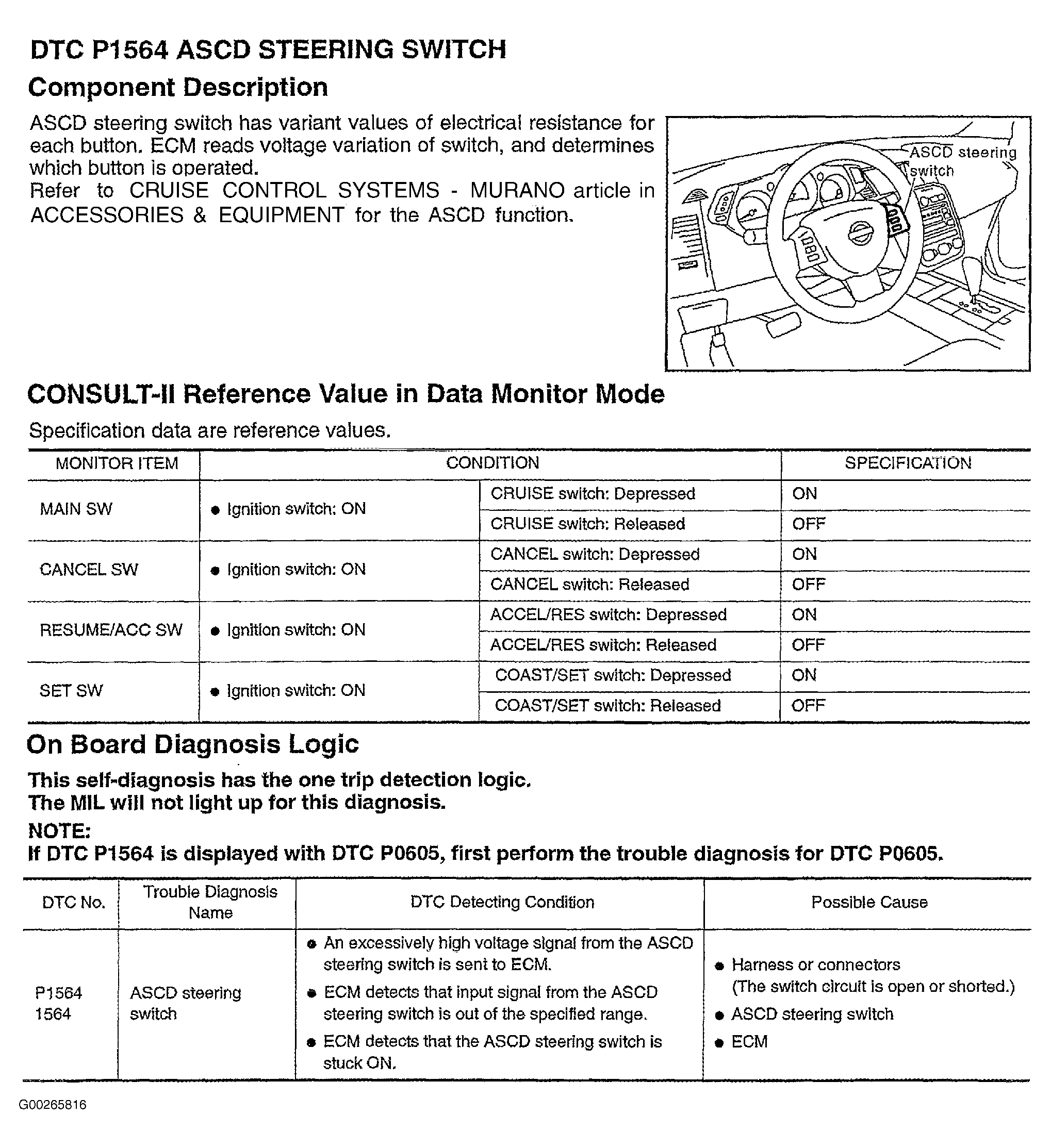

Fig 1: DTC P1564 (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

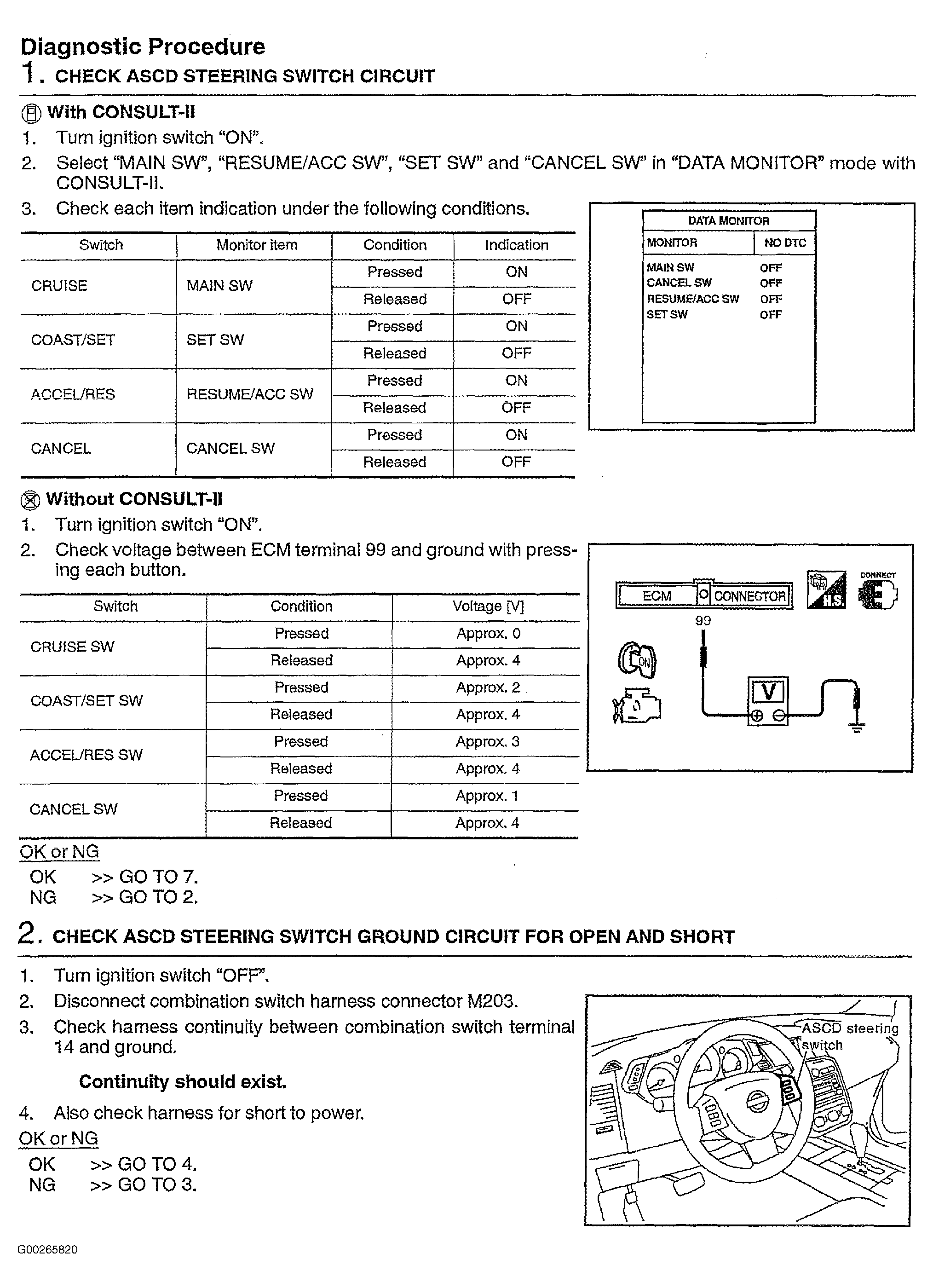

Fig 2: DTC P1564 (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

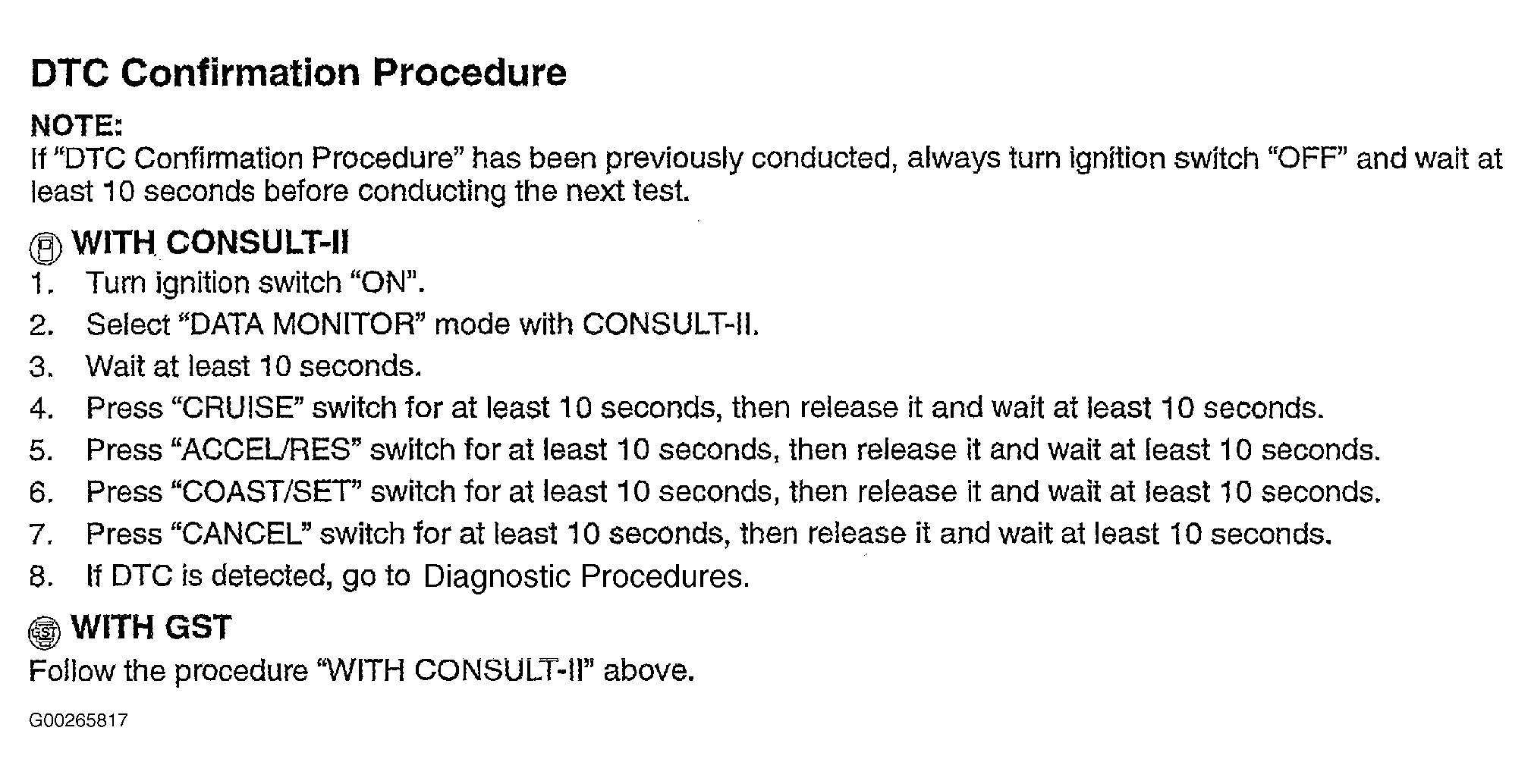

Fig 3: DTC P1564 (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

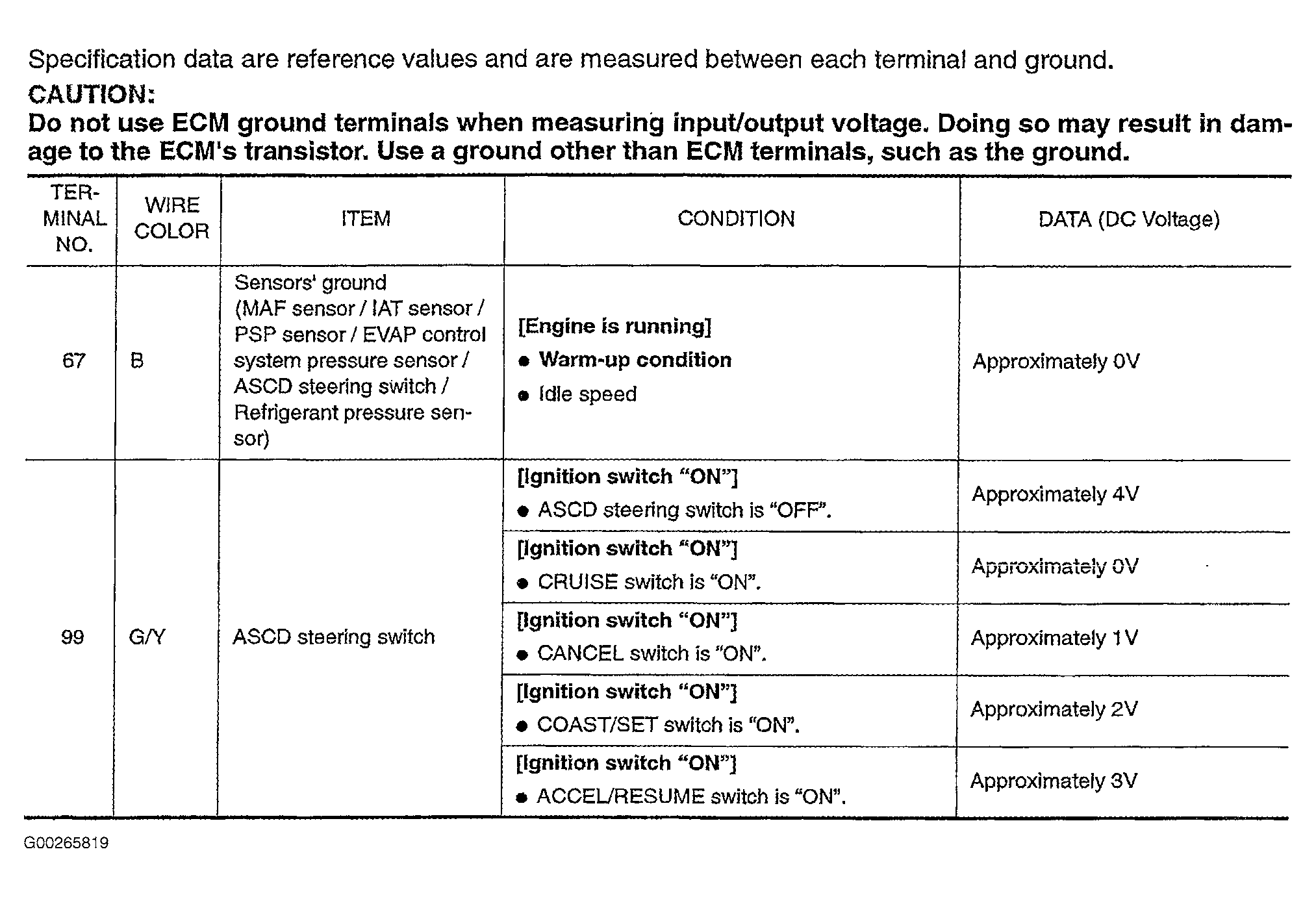

Fig 4: DTC P1564 (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

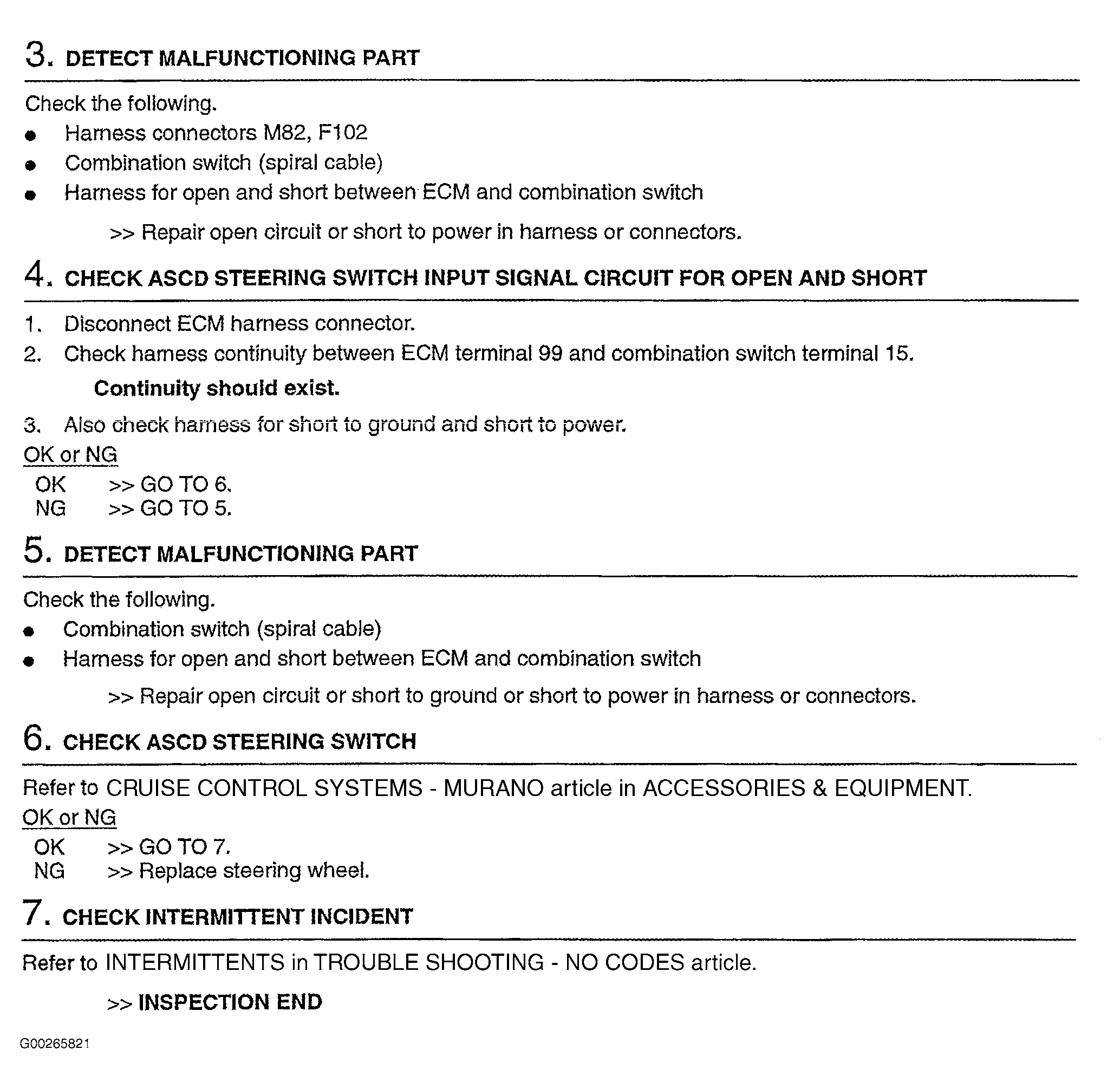

Fig 5: DTC P1564 (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

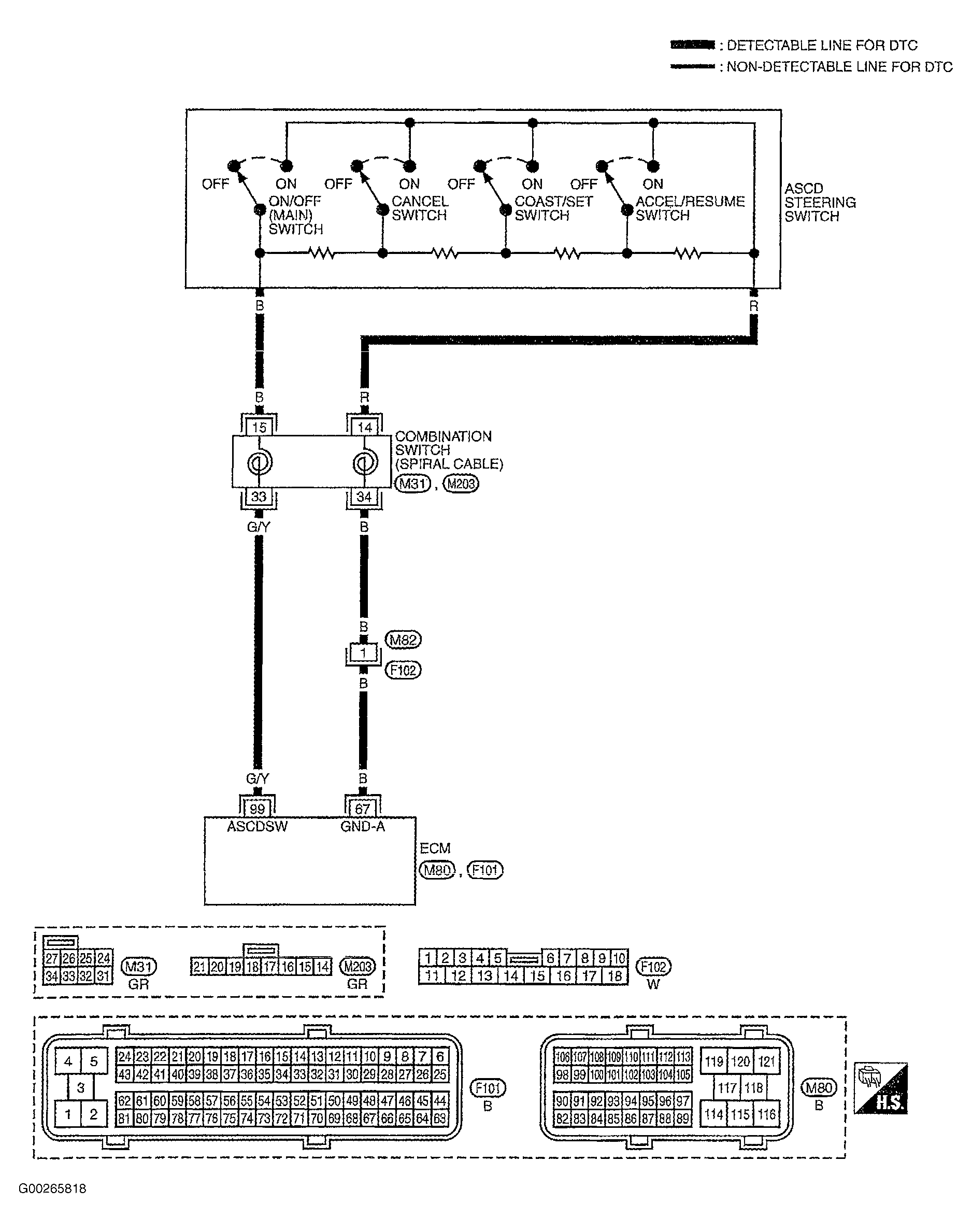

Fig 6: DTC P1564 (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

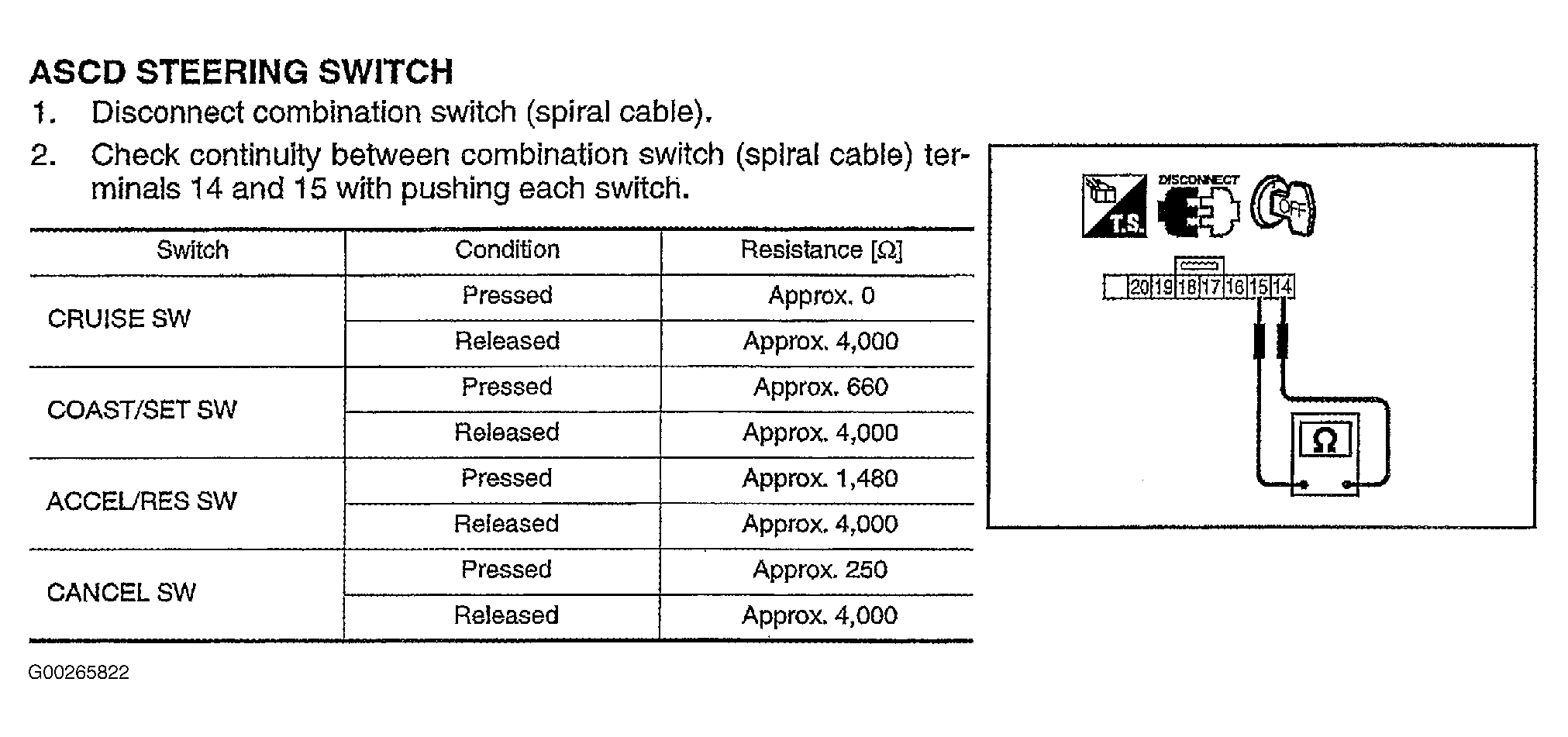

Fig 7: Testing ASCD Steering Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
