Notes
Removal And Installation: Notes

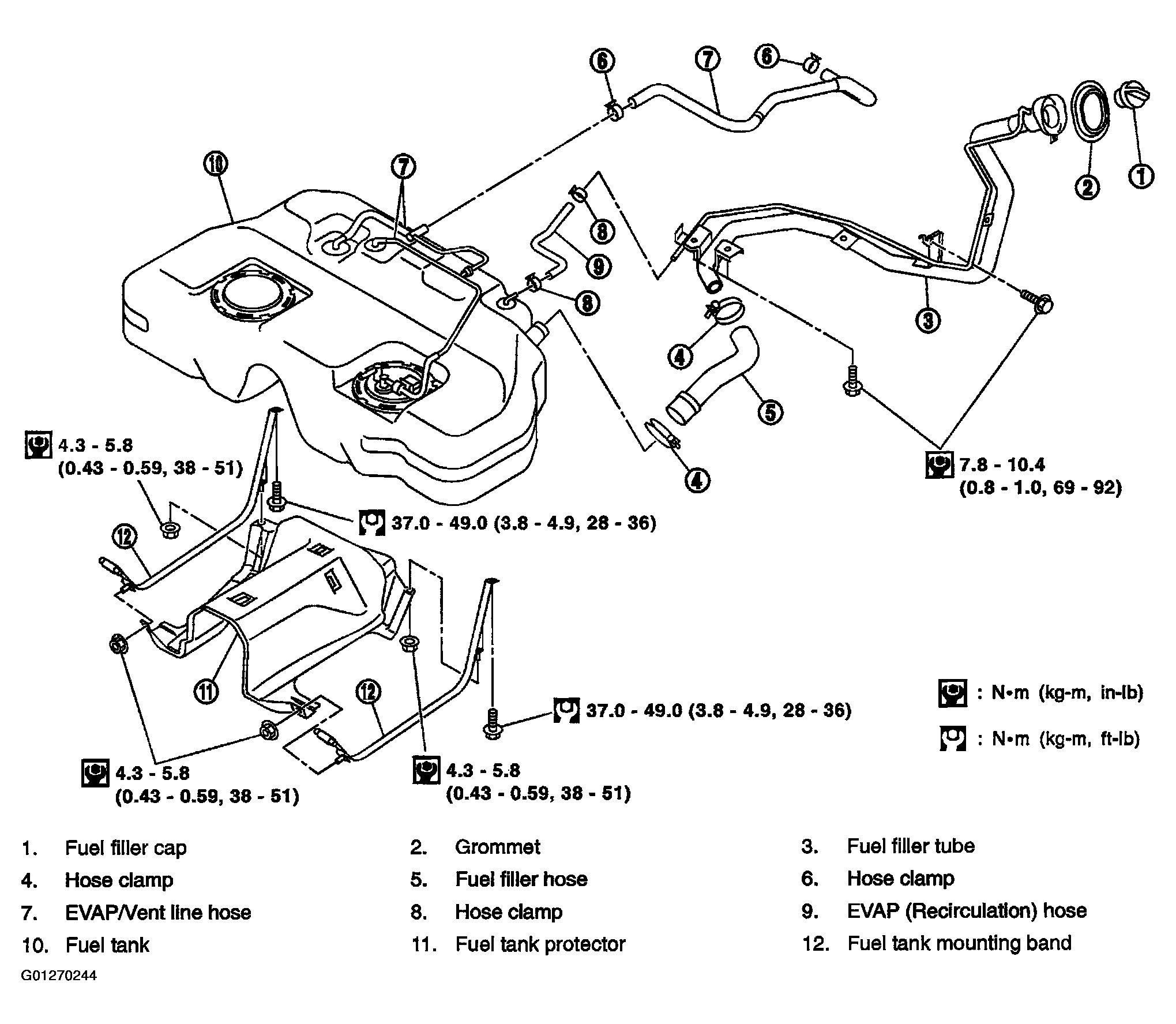

Fig 1: Displaying Fuel Tank Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
