Specific Gravity Check: Notes

  1. Read hydrometer and thermometer indications at eye level.
    Fig 1: Checking Specific Gravity
    G01188880Courtesy of NISSAN MOTOR CO., U.S.A.

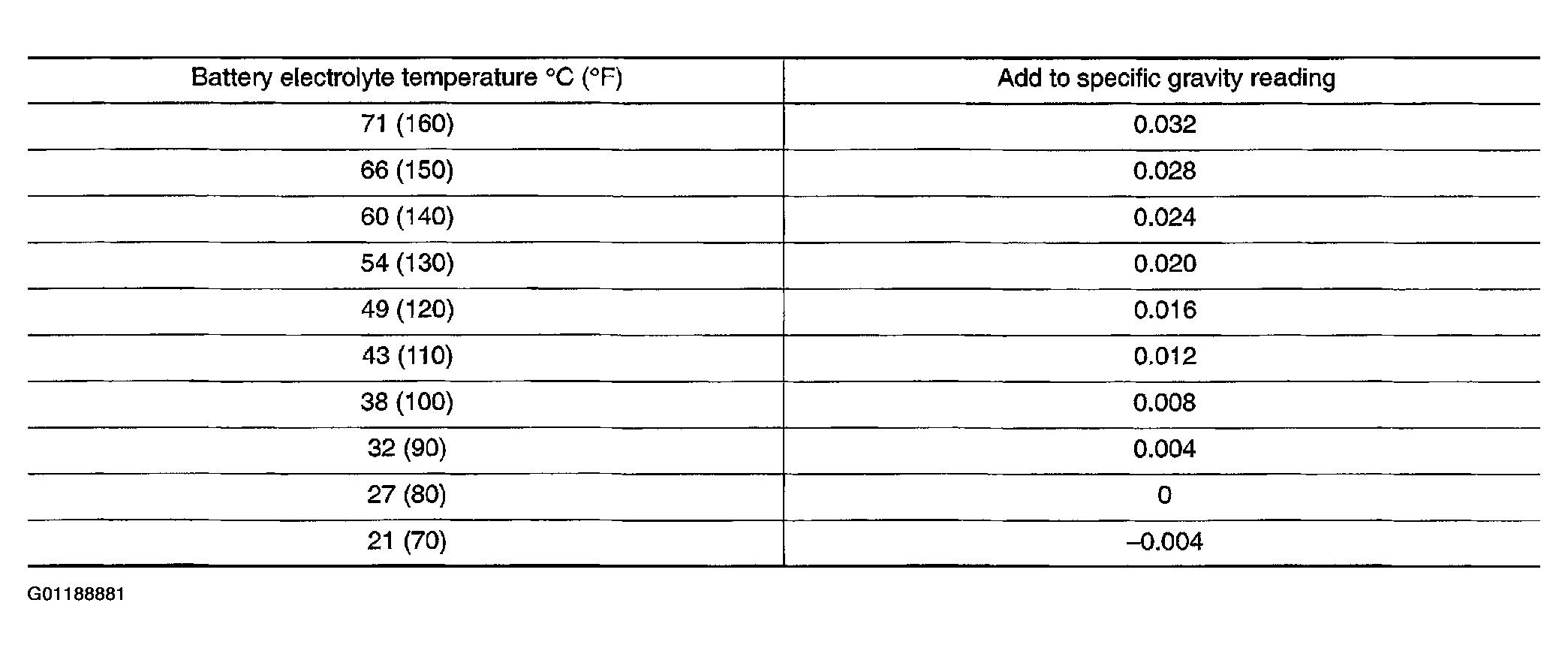

  2. Use the chart in Figure to correct your hydrometer reading according to electrolyte temperature.
