CONSULT-II Function Application Table (Main Items)

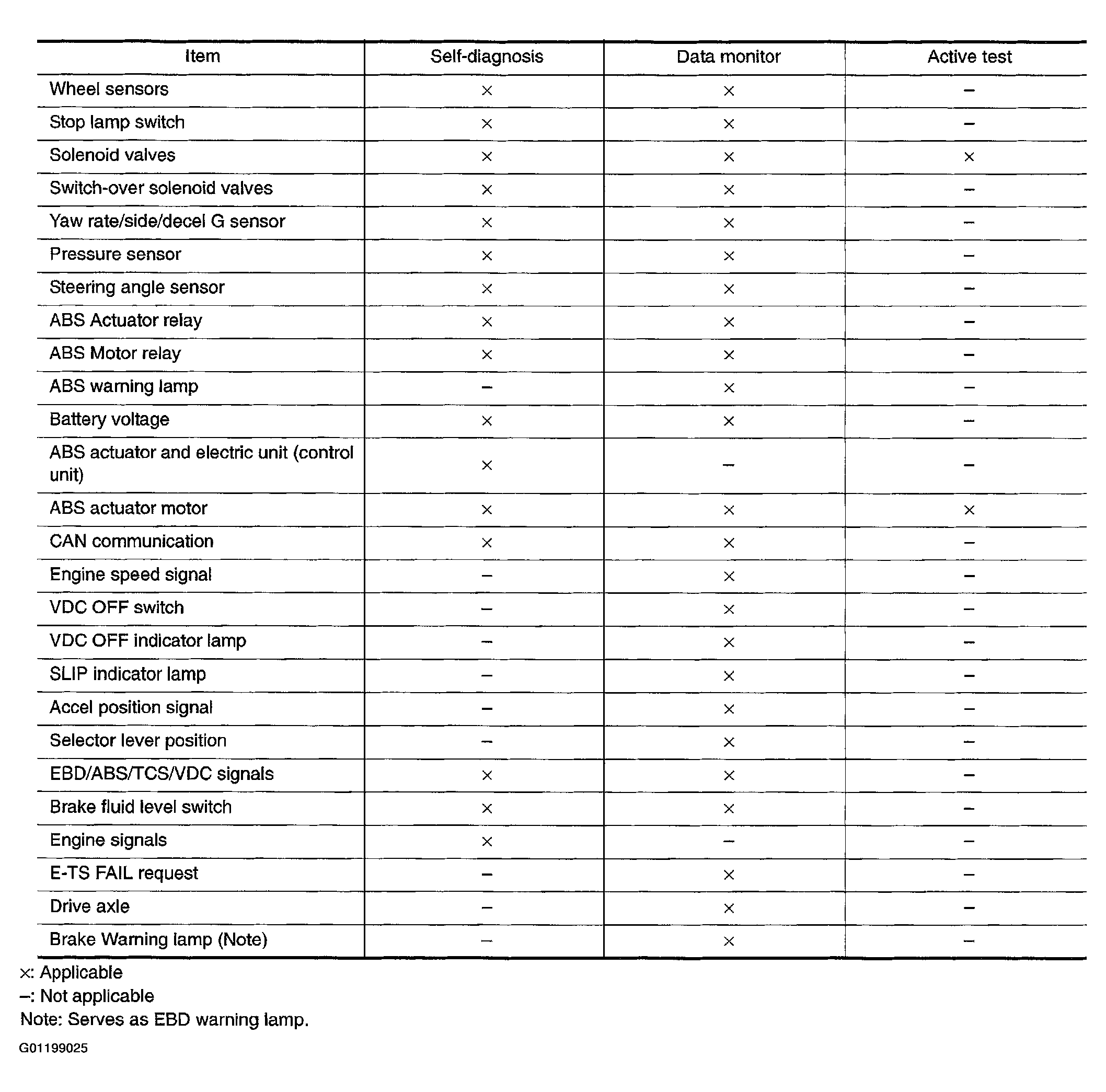

Fig 1: CONSULT-II Function Application Table
G01199025Courtesy of NISSAN MOTOR CO., U.S.A.
