CAN Communication Unit For 2WD Models: Notes

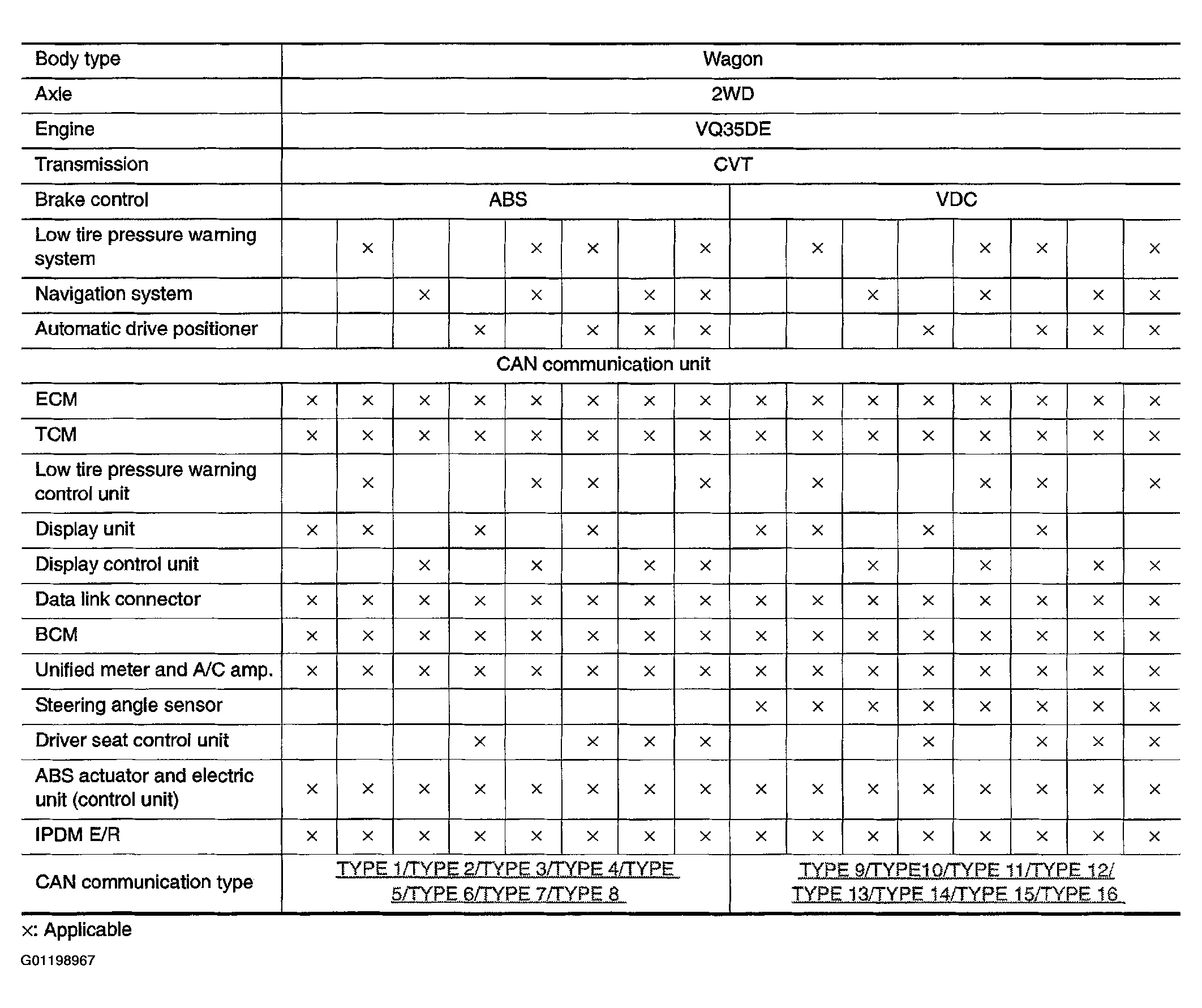

Fig 1: CAN Communication Unit System Description (2WD Models) Chart

G01198967

Courtesy of NISSAN MOTOR CO., U.S.A.
