CONSULT-II Basic Operation Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

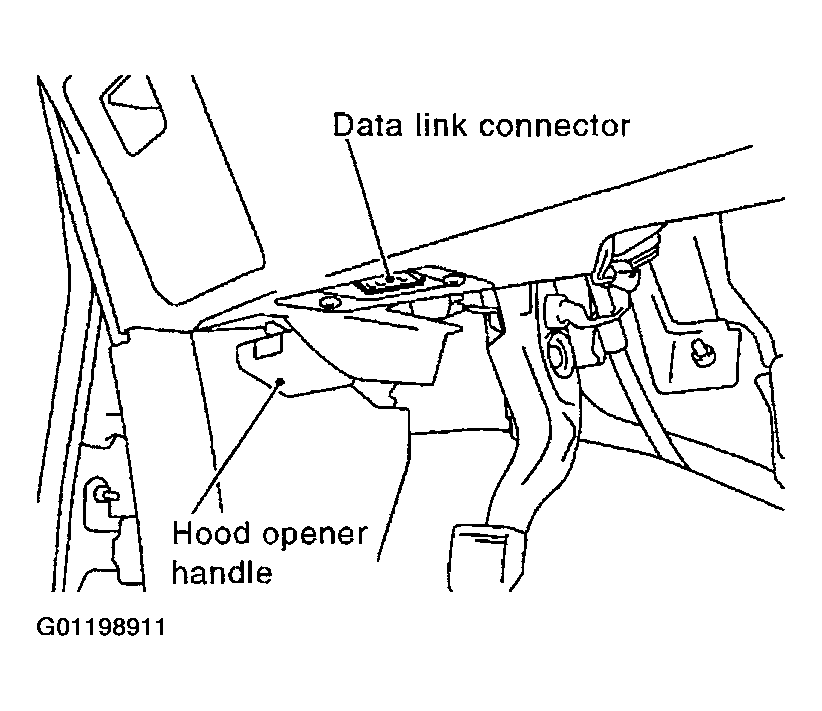

Fig 1: Locating Data Link Connector And Hood Opener Handle
Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
Turn ignition switch ON.
Touch START (NISSAN BASED VHCL).

Fig 2: CONSULT-II START (NISSAN BASED VHCL) Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch ABS in SELECT SYSTEM screen.
If ABS is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: CONSULT-II ABS SELECT SYSTEM Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Select required diagnostic location from SELECT DIAG MODE screen.

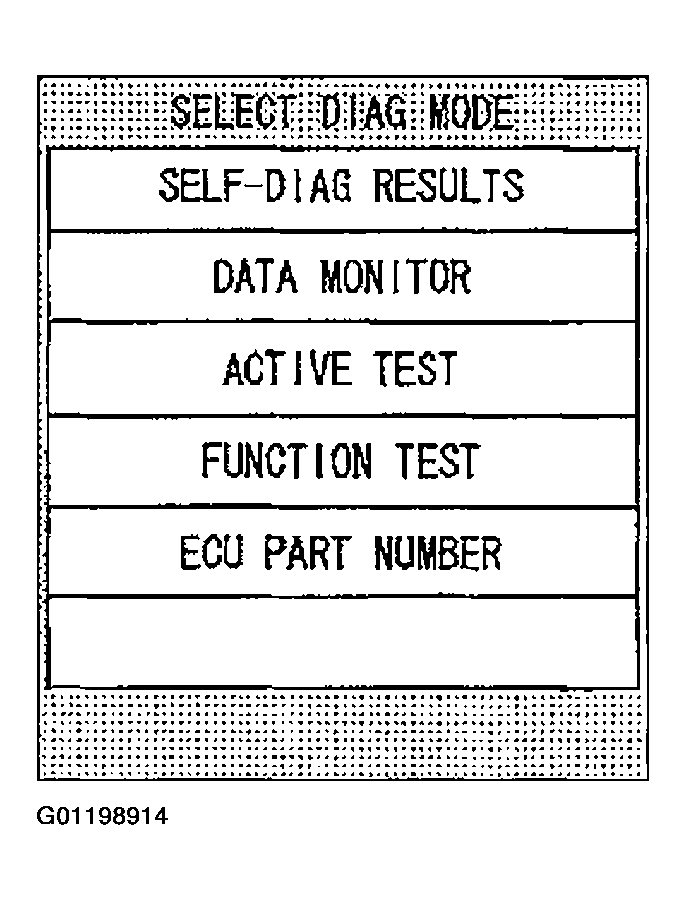

Fig 4: CONSULT-II SELECT DIAG MODE Display Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
