Check Acc Power

With CONSULT-II

Check ACC power (ACC ON SW) in DATA MONITOR mode with CONSULT-II.

Fig 1: Monitor Item Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: CONSULT-II DATA MONITOR Display Screen

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector and ground.

Fig 3: BCM Voltage Between Based On Conditions

Courtesy of NISSAN MOTOR CO., U.S.A.

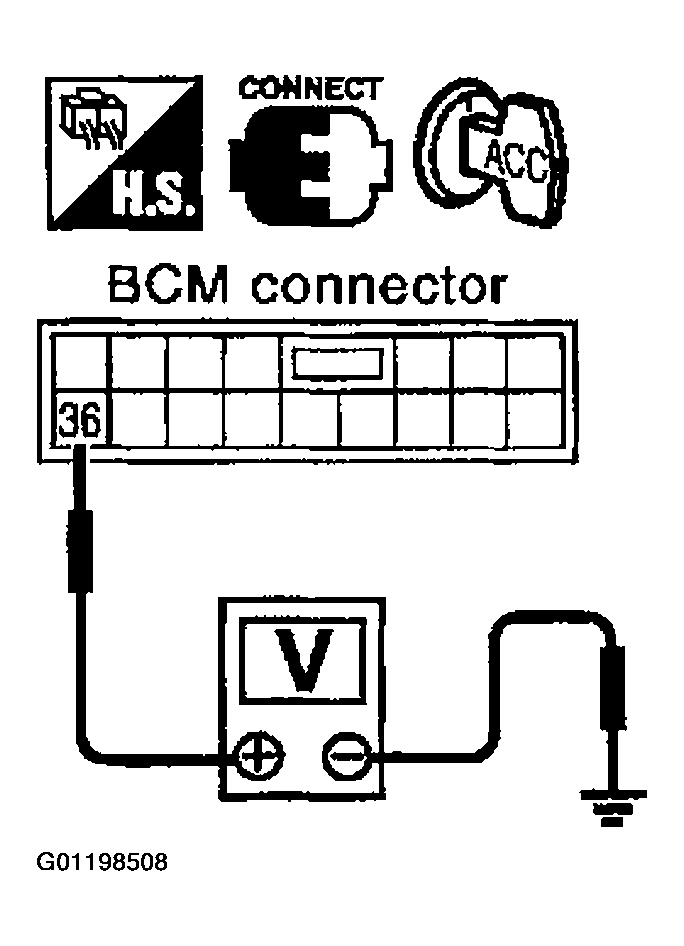

Fig 4: Checking Voltage Between BCM And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: ACC power circuit is OK.
2. NG: Check the following.
   • 10A fuse [No. 6, located in fuse block (J/B)]
   • Harness for open or short between BCM and fuse.
