Pin Voltage Tests

For PIN voltage charts, see Fig 1 -Fig 3 .

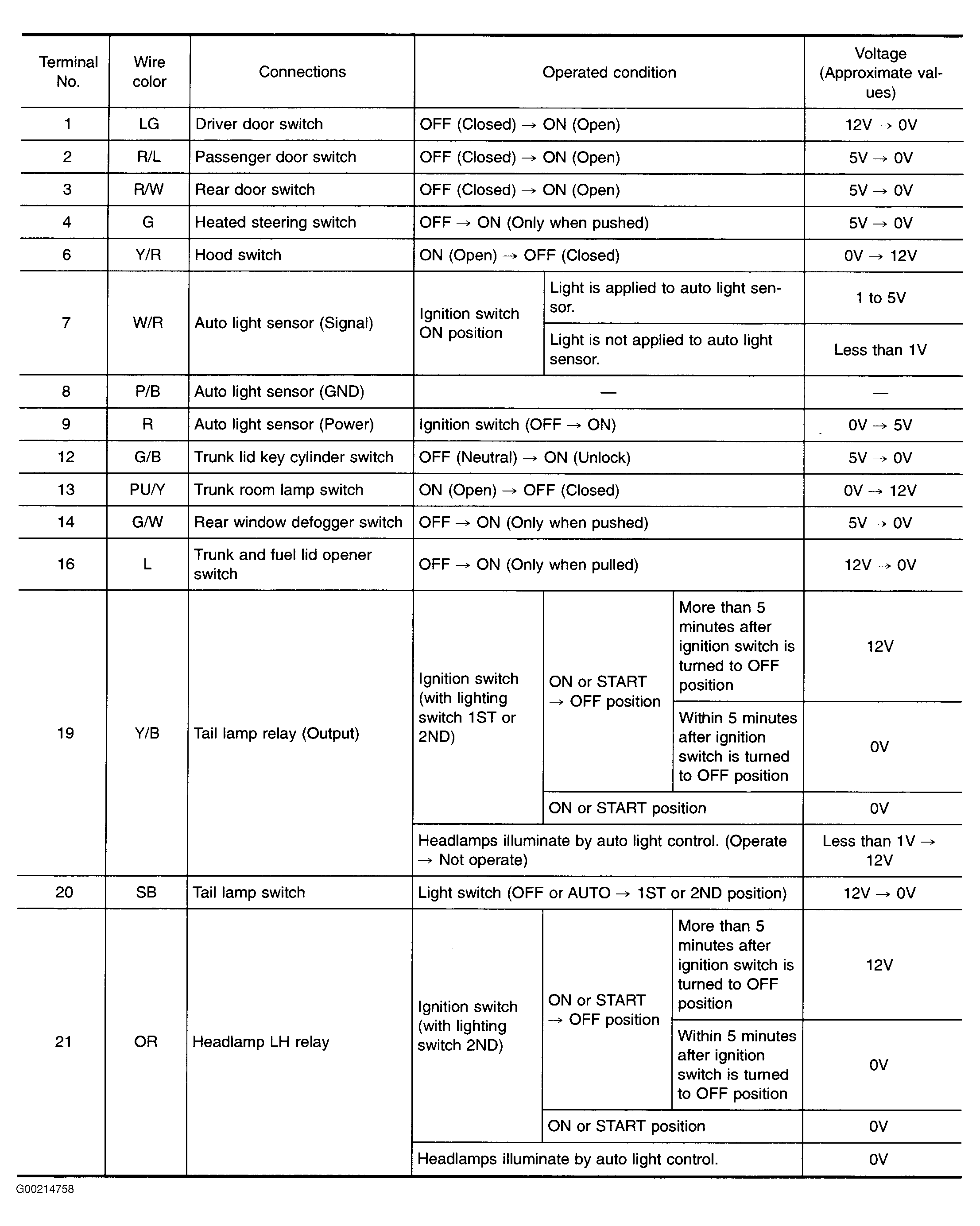

Fig 1: Identifying PIN Voltage Chart (1 Of 3)

G00214758

Courtesy of NISSAN MOTOR CO., U.S.A.

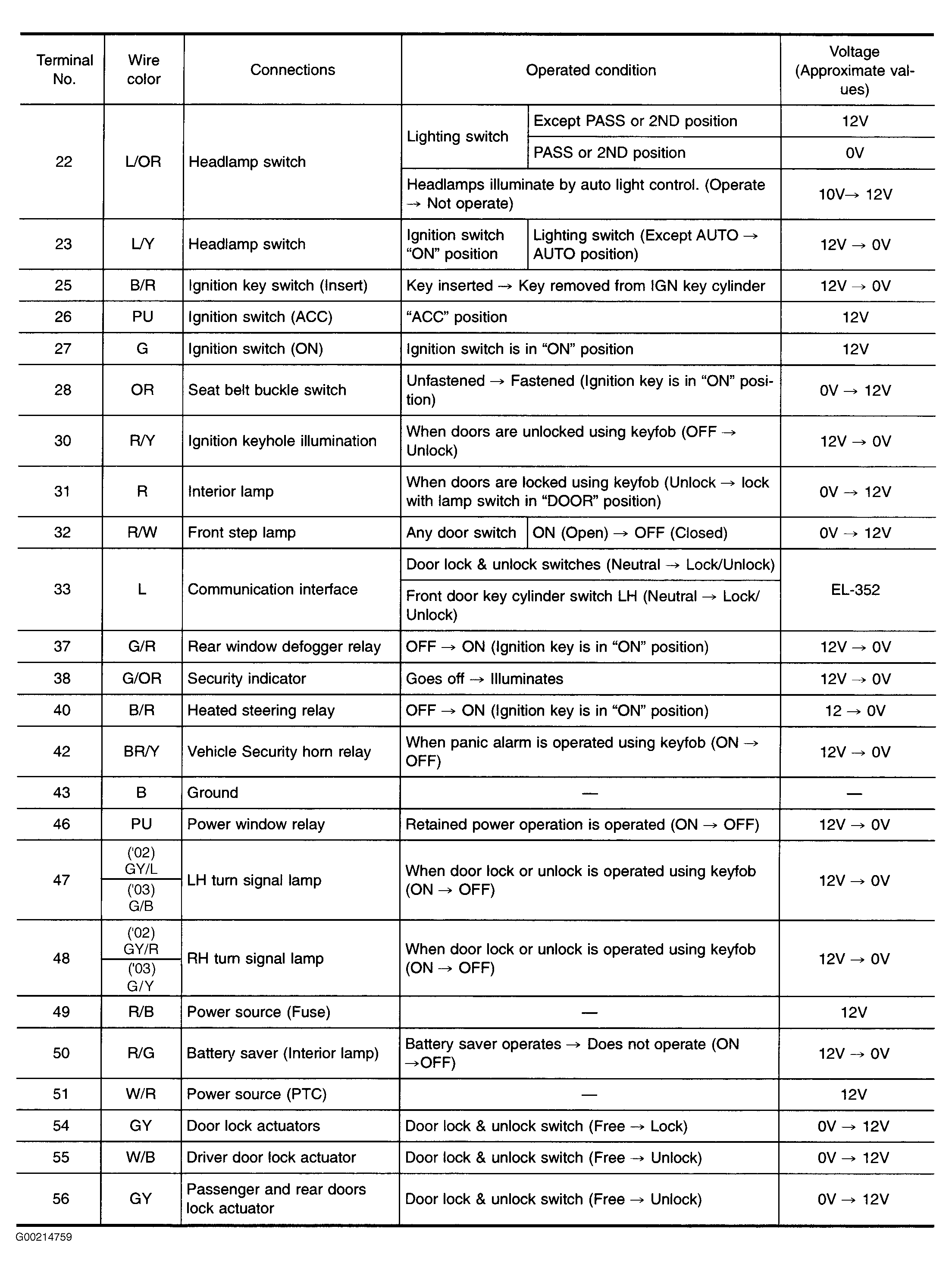

Fig 2: Identifying PIN Voltage Chart (2 Of 3)

G00214759

Courtesy of NISSAN MOTOR CO., U.S.A.

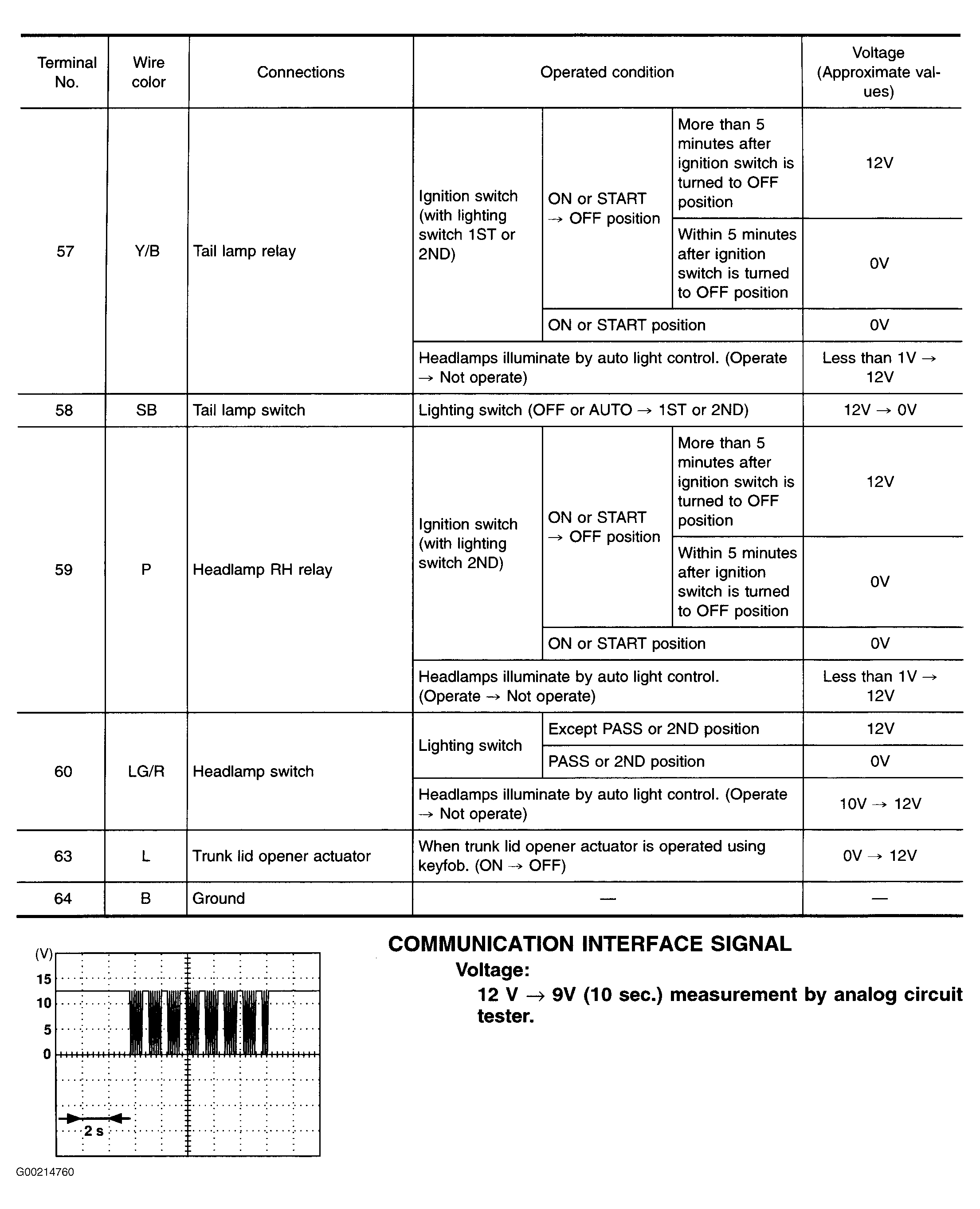

Fig 3: Identifying PIN Voltage Chart (3 Of 3)

G00214760

Courtesy of NISSAN MOTOR CO., U.S.A.
