Trouble Diagnosis - Introduction
>>
Work Flow
>>
Work Flow Chart
Work Flow Chart

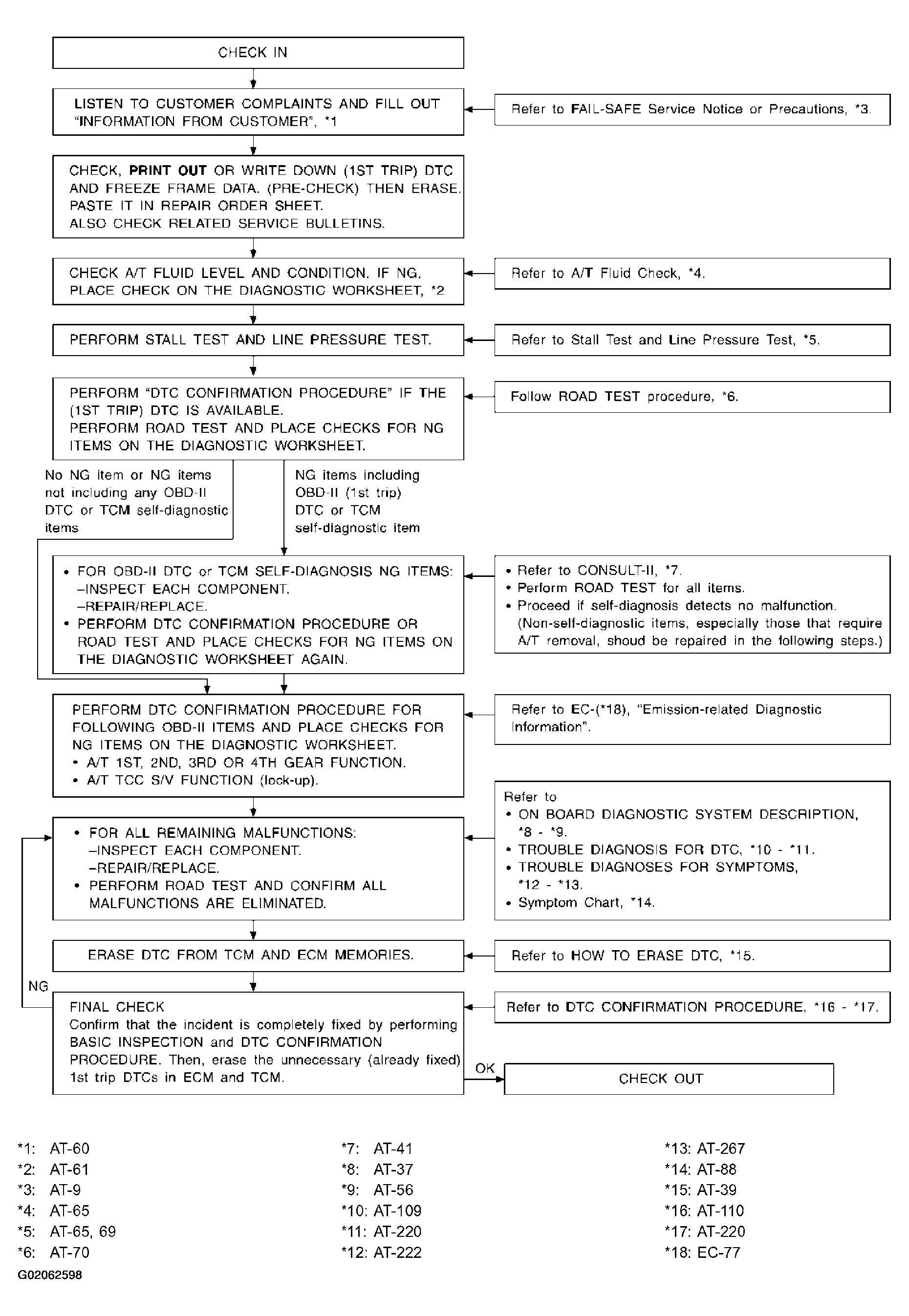

Fig 1: Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
