Revolution Sensor (For Speed Sensor)

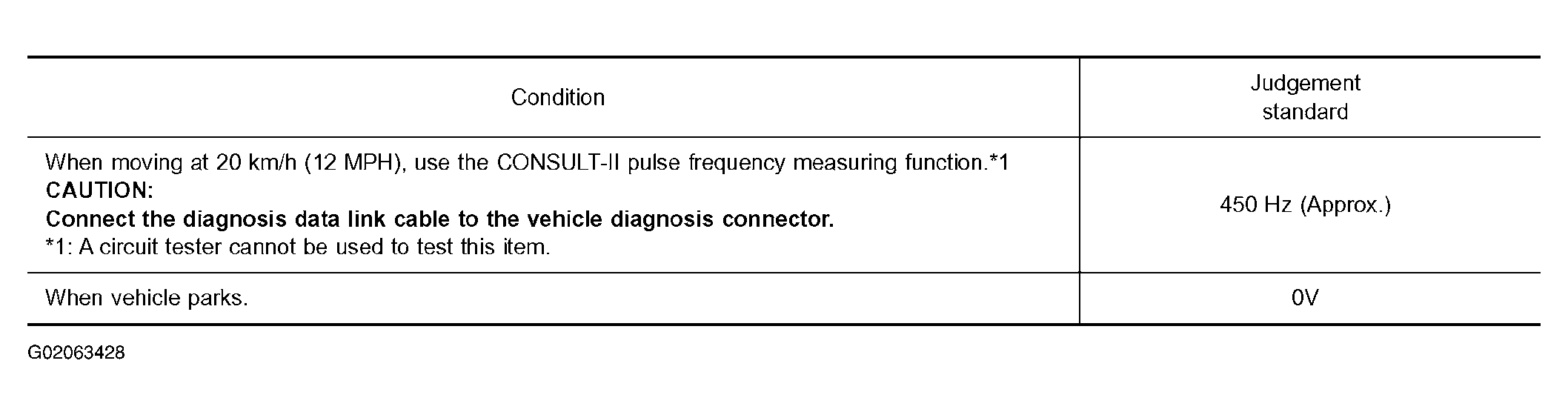

Fig 1: Revolution Sensor (For Speed Sensor) Specification Table

G02063428

Courtesy of NISSAN MOTOR CO., U.S.A.
