Oil Pump: Components

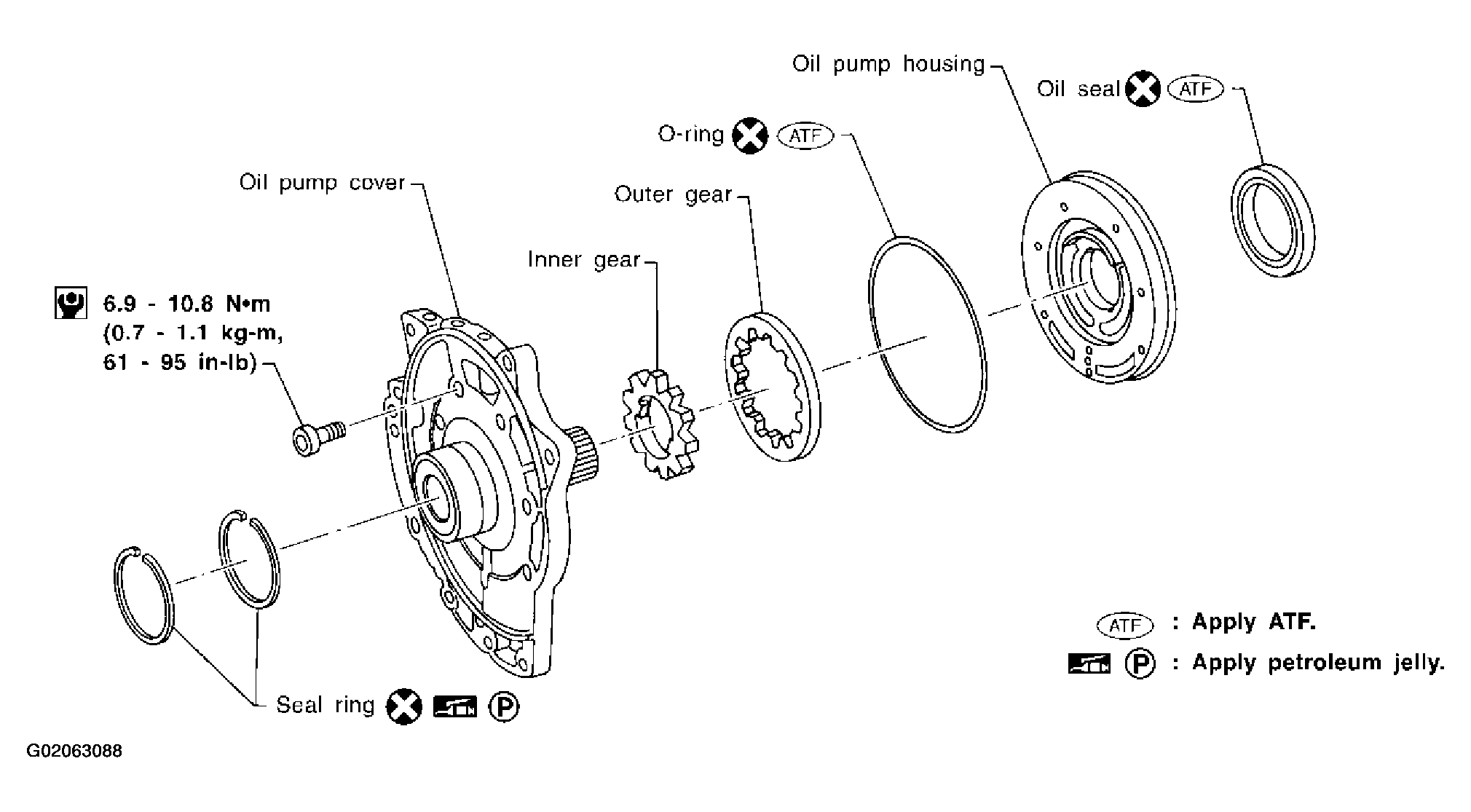

Fig 1: Identifying Oil Pump Components

G02063088

Courtesy of NISSAN MOTOR CO., U.S.A.
