Home >> Nissan-Datsun >> 2003 >> Maxima GXE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Repair For Component Parts >> Final Drive >> Components

Final Drive: Components

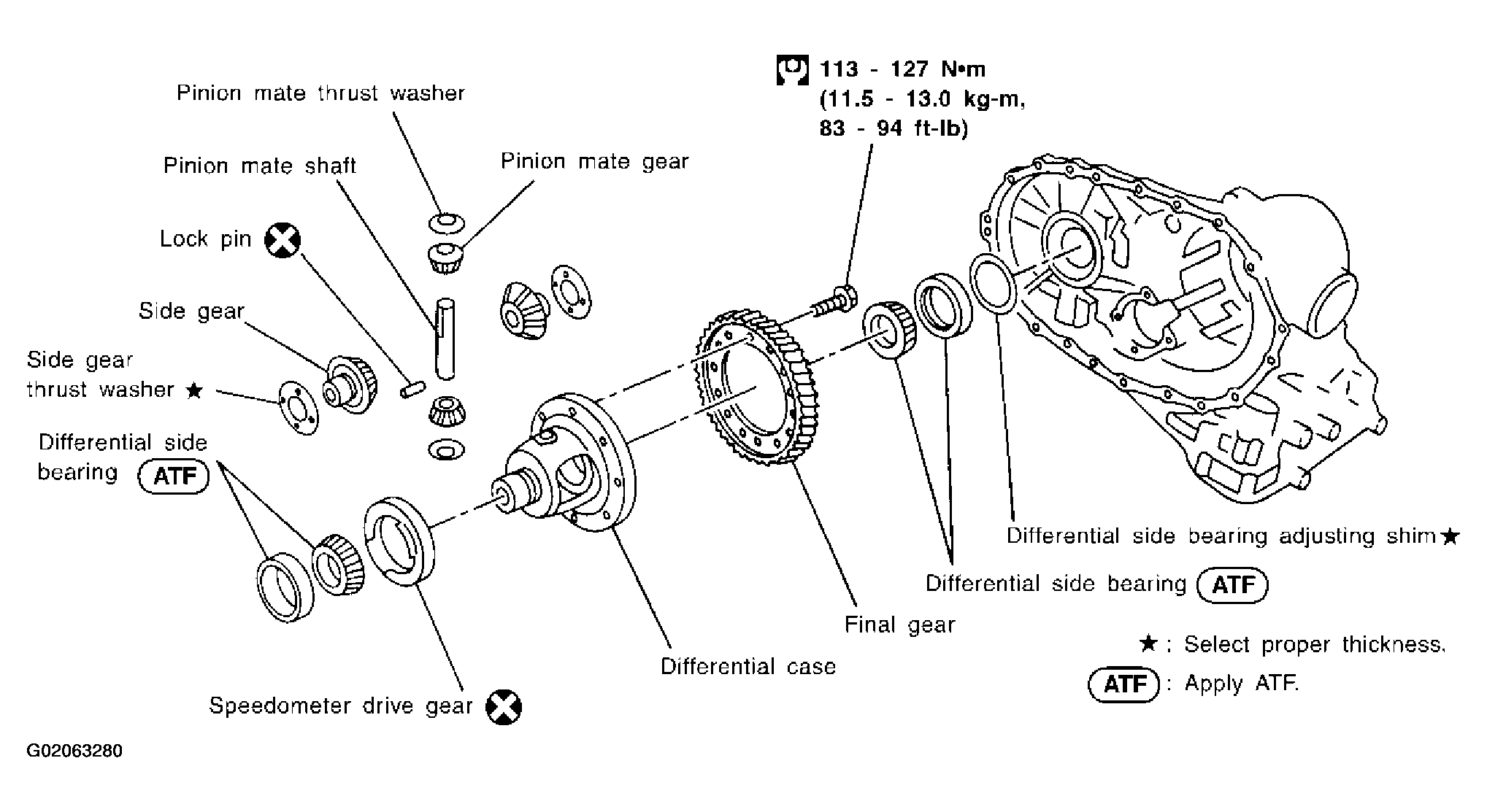

Fig 1: Identifying Final Drive Components

G02063280

Courtesy of NISSAN MOTOR CO., U.S.A.
