Final Drive: Assembly

Attach side gear thrust washers to side gears, then install pinion mate thrust washers and pinion mate gears in place.

Fig 1: Installing Pinion Mate Thrust Washers And Pinion Mate Gears In Place
Courtesy of NISSAN MOTOR CO., U.S.A.
Insert pinion mate shaft.
- When inserting, be careful not to damage pinion mate thrust washers.

  Fig 2: Inserting Pinion Mate Shaft
  Courtesy of NISSAN MOTOR CO., U.S.A.
Measure clearance between side gear and differential case with washers following the procedure below:
1. Set Tool and dial indicator on side gear.

  Fig 3: Setting Tool And Dial Indicator On Side Gear
  Courtesy of NISSAN MOTOR CO., U.S.A.
2. Move side up and down to measure dial indicator deflection. Always measure indicator deflection on both side gears.
  Clearance between side gear and differential case with washers:

  0.1 - 0.2 mm (0.004 - 0.008 in)

  Fig 4: Measuring Clearance Between Side Gear And Differential Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
3. If not within specification, adjust clearance by changing thickness of side gear thrust washers.
  Side gear thrust washer:

  Refer to SDS, LOW & REVERSE BRAKE .
Install lock pin.
- Make sure that lock pin is flush with case.

  Fig 5: Installing Lock Pin
  Courtesy of NISSAN MOTOR CO., U.S.A.

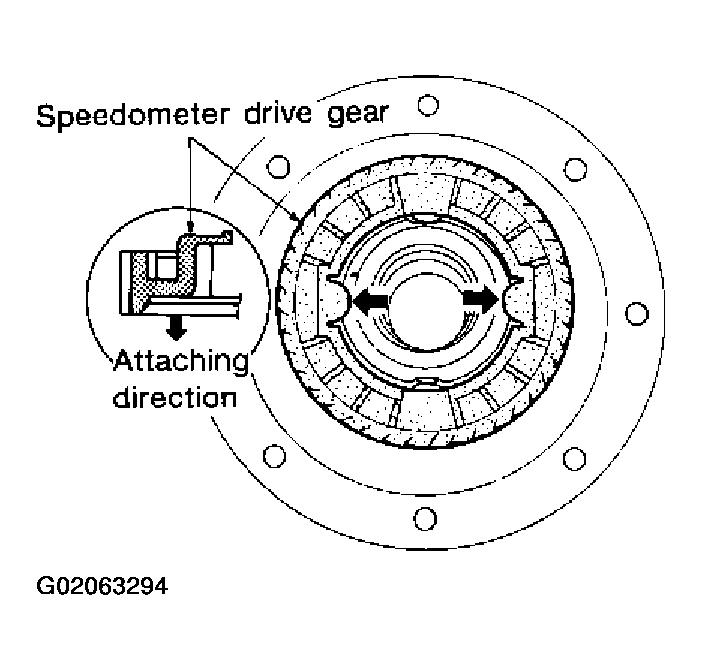

Install speedometer drive gear on differential case.
- Align the projection of speedometer drive gear with the groove of differential case.

  Fig 6: Installing Speedometer Drive Gear On Differential Case
  Courtesy of NISSAN MOTOR CO., U.S.A.
Press on differential side bearings.

Fig 7: Pressing On Differential Side Bearings
Courtesy of NISSAN MOTOR CO., U.S.A.
Install final gear and tighten fixing bolts in a crisscross pattern.

Fig 8: Installing Final Gear And Tighten Fixing Bolts In A Crisscross Pattern
Courtesy of NISSAN MOTOR CO., U.S.A.
