Automatic Transaxle
>>
Overall System
>>
Control System
>>
Control System
Control System

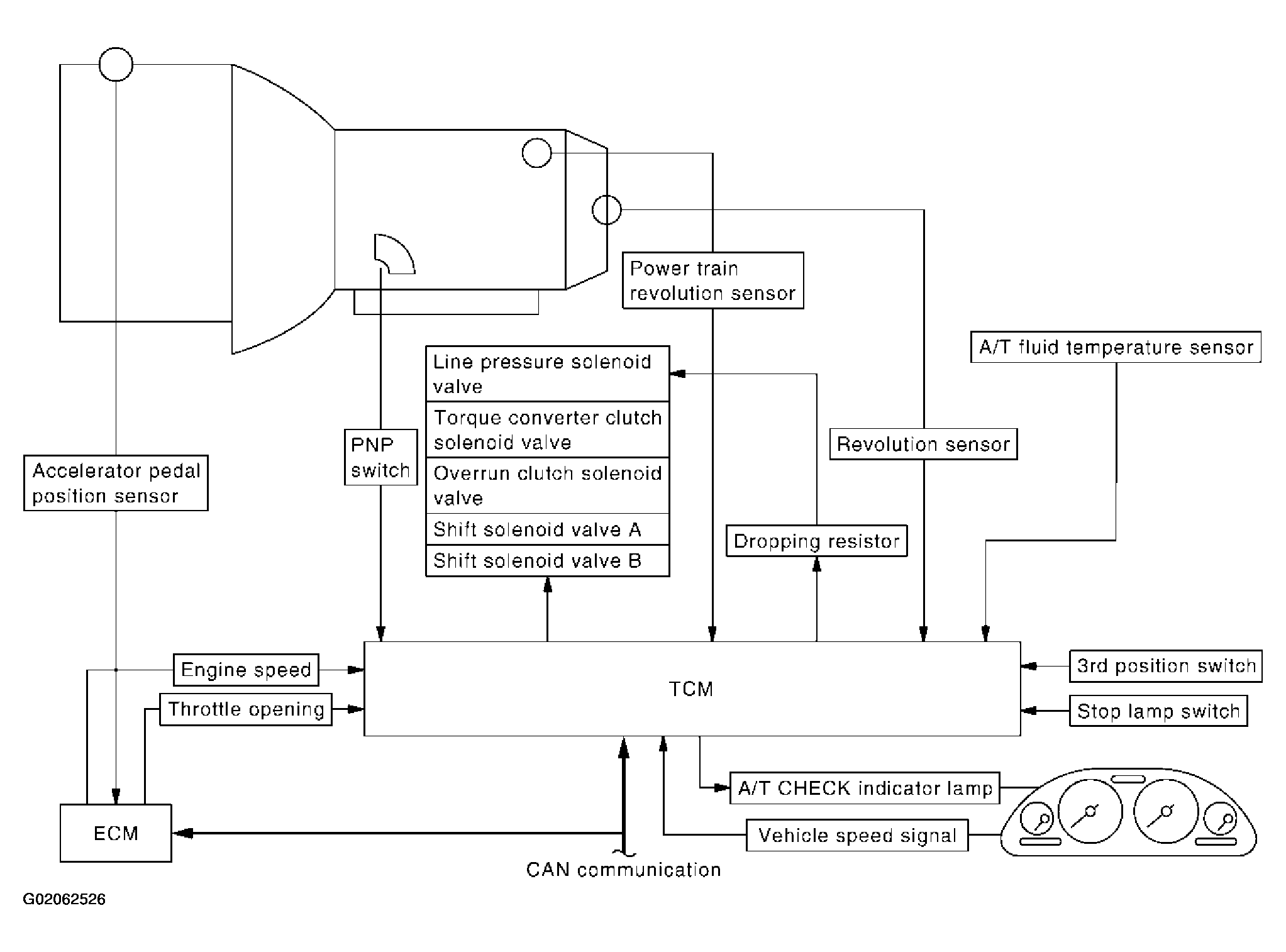

Fig 1: Control System Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
