A/T Shift Lock System
>>
Component Inspection
>>
Detention Switch
>>
For Key:
For Key:
Check continuity between terminals of the control device connector.

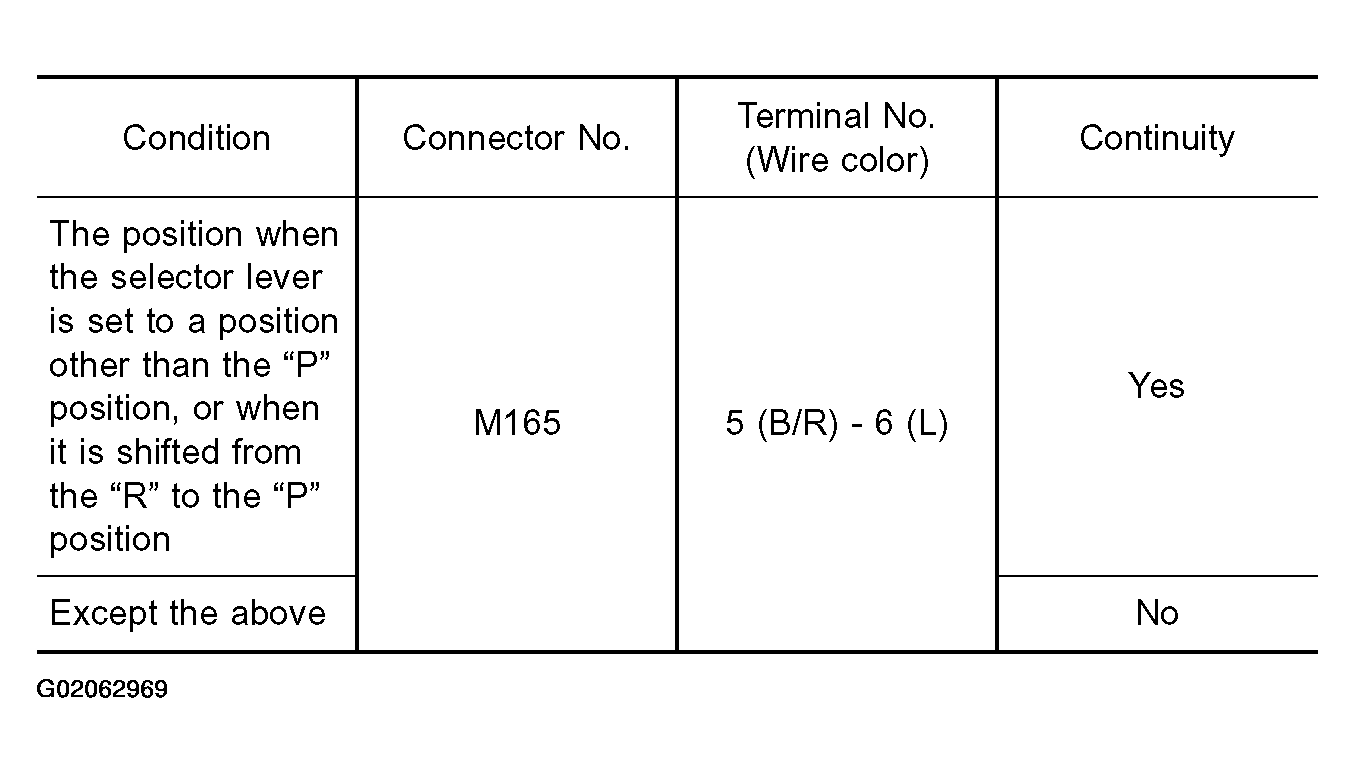

Fig 1: Connector Terminal Table (Detention Switch)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Checking Detention Switch
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
