Charging System Generators & Regulators: Overhaul: Generator

For overhaul, see Fig 1.

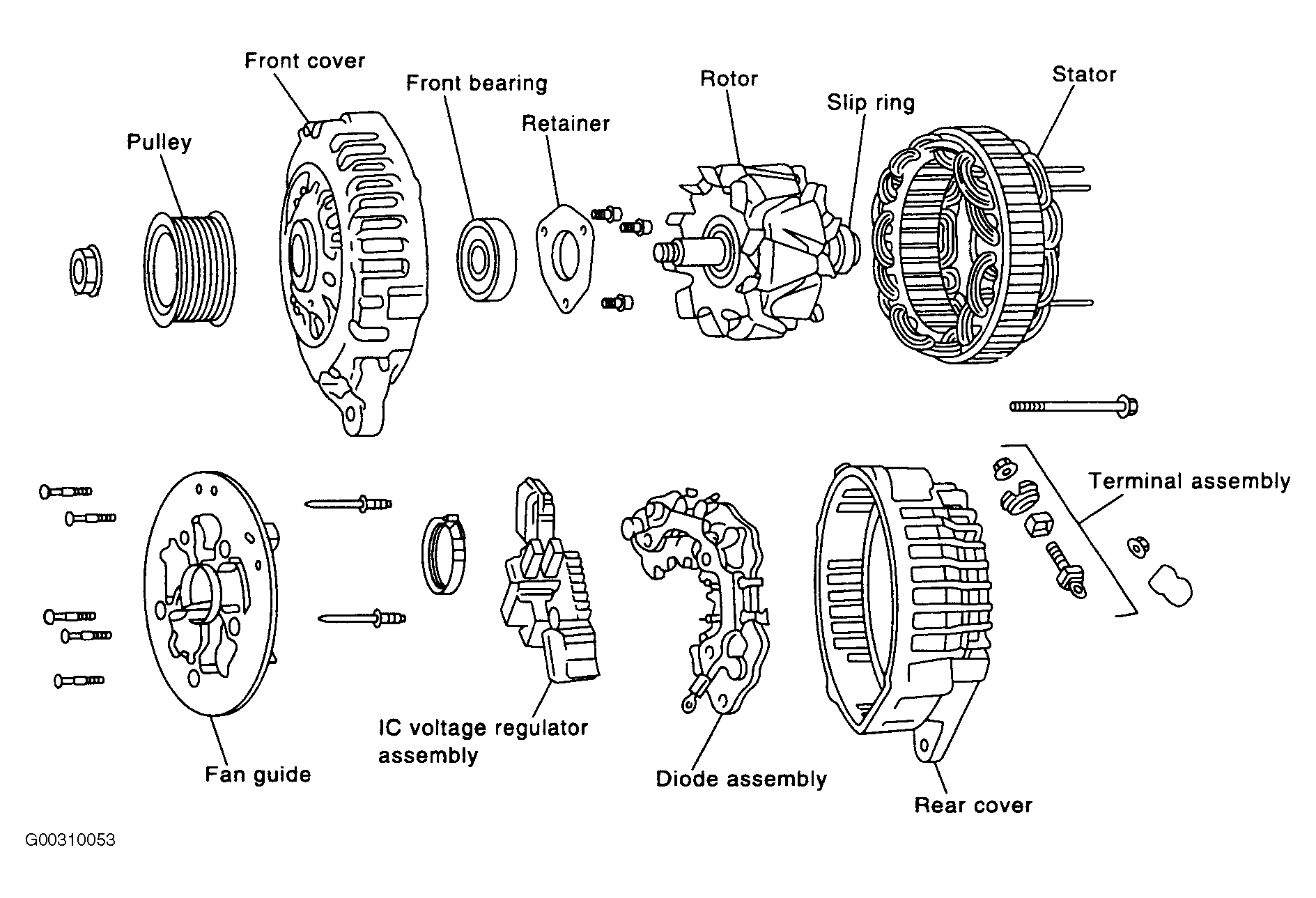

Fig 1: Exploded View of Generator

G00310053

Courtesy of NISSAN MOTOR CO., U.S.A.
