Data Monitor Procedure

  1. Turn ignition switch OFF.
  2. Connect CONSULT-II to data link connector.
  3. Turn ignition switch ON.
  4. Touch "START" on CONSULT-II screen.
    Fig 1: Consult-II Display Screen (Data Monitor Procedure)
    G02063665Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS".
    Fig 2: Diagnosis System Selection Display Screen (Data Monitor Procedure)
    G02063666Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".
  7. Touch "SETTING" on "SELECT MONITOR ITEM" screen.
  8. Touch "START" on "SELECT MONITOR ITEM".

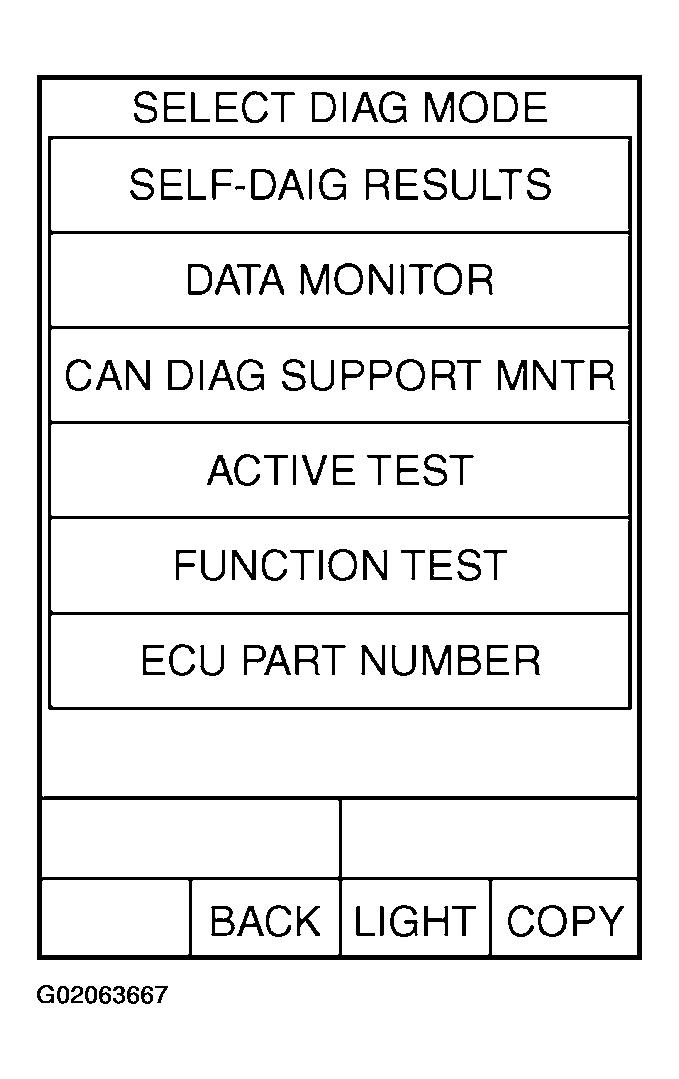

    Fig 3: Select-Diag Mode Display Screen (Data Monitor Procedure)
    G02063667Courtesy of NISSAN MOTOR CO., U.S.A.
