Traction Control System: Description: Schematic

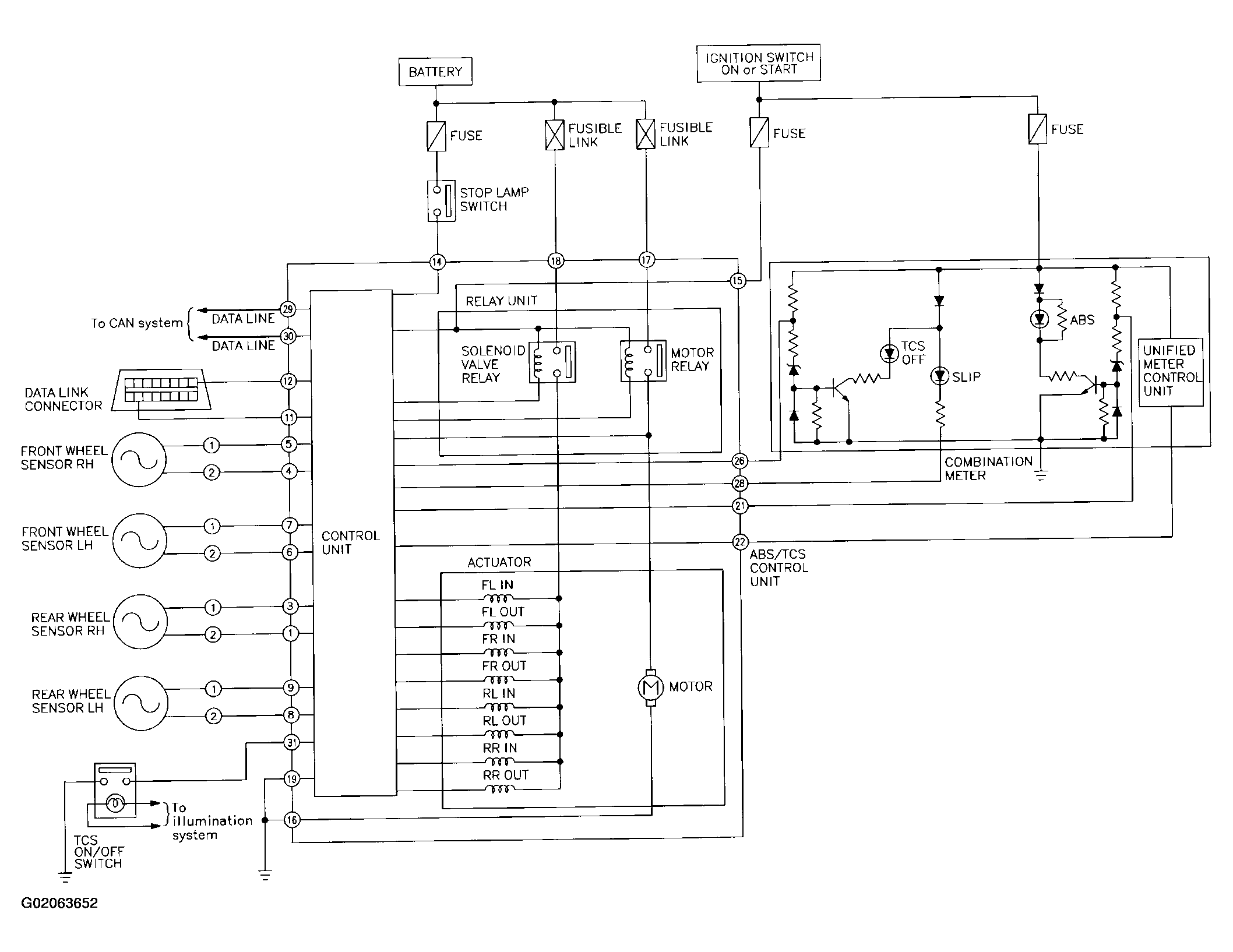

Fig 1: TCS Schematic

G02063652

Courtesy of NISSAN MOTOR CO., U.S.A.
