Door Switch Check

NOTE: For wiring diagrams, see WIRING DIAGRAMS  .

For door switch check, see Fig 1 andFig 2

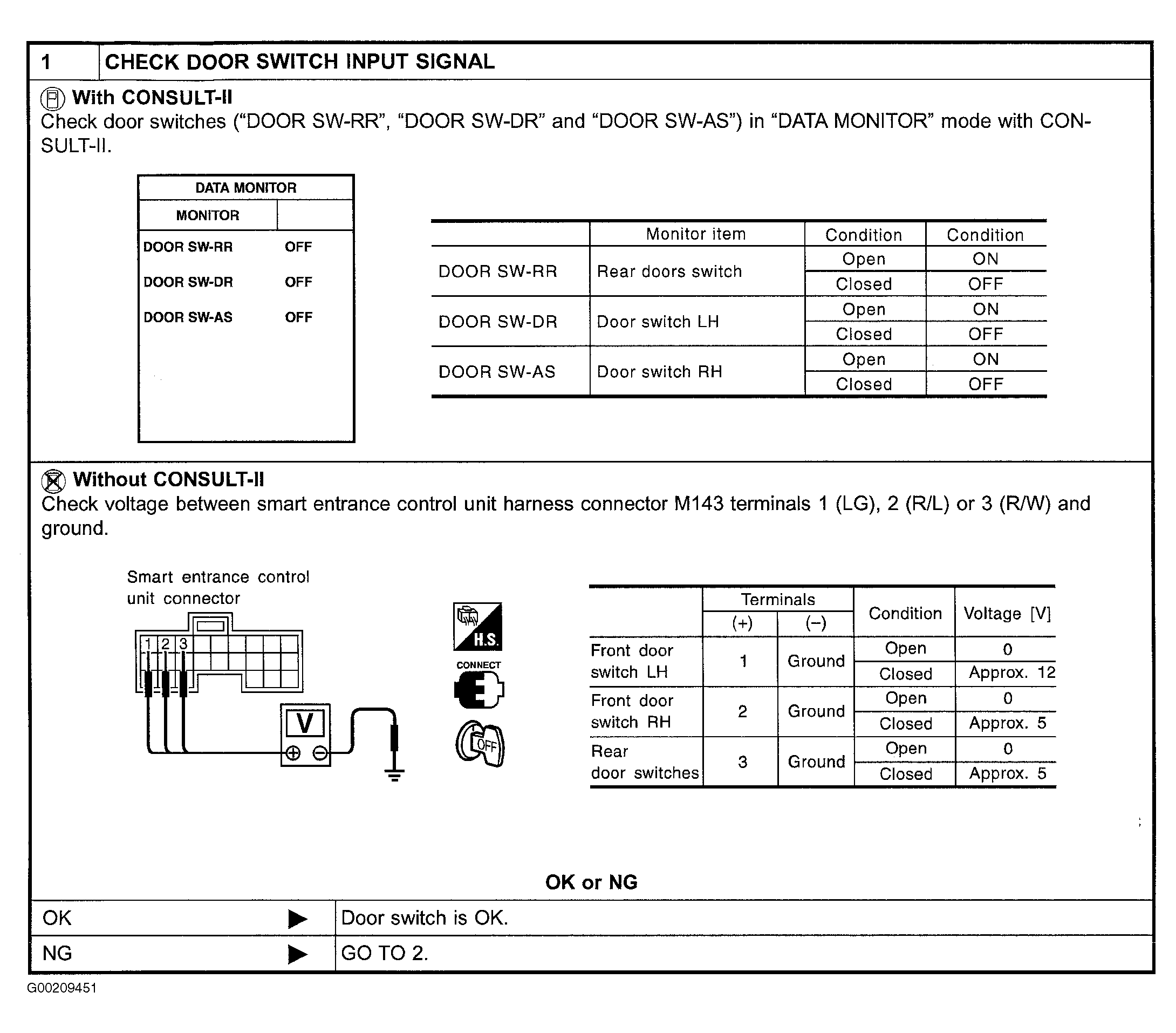

Fig 1: Identifying Door Switch Check, Step 1
G00209451Courtesy of NISSAN MOTOR CO., U.S.A.

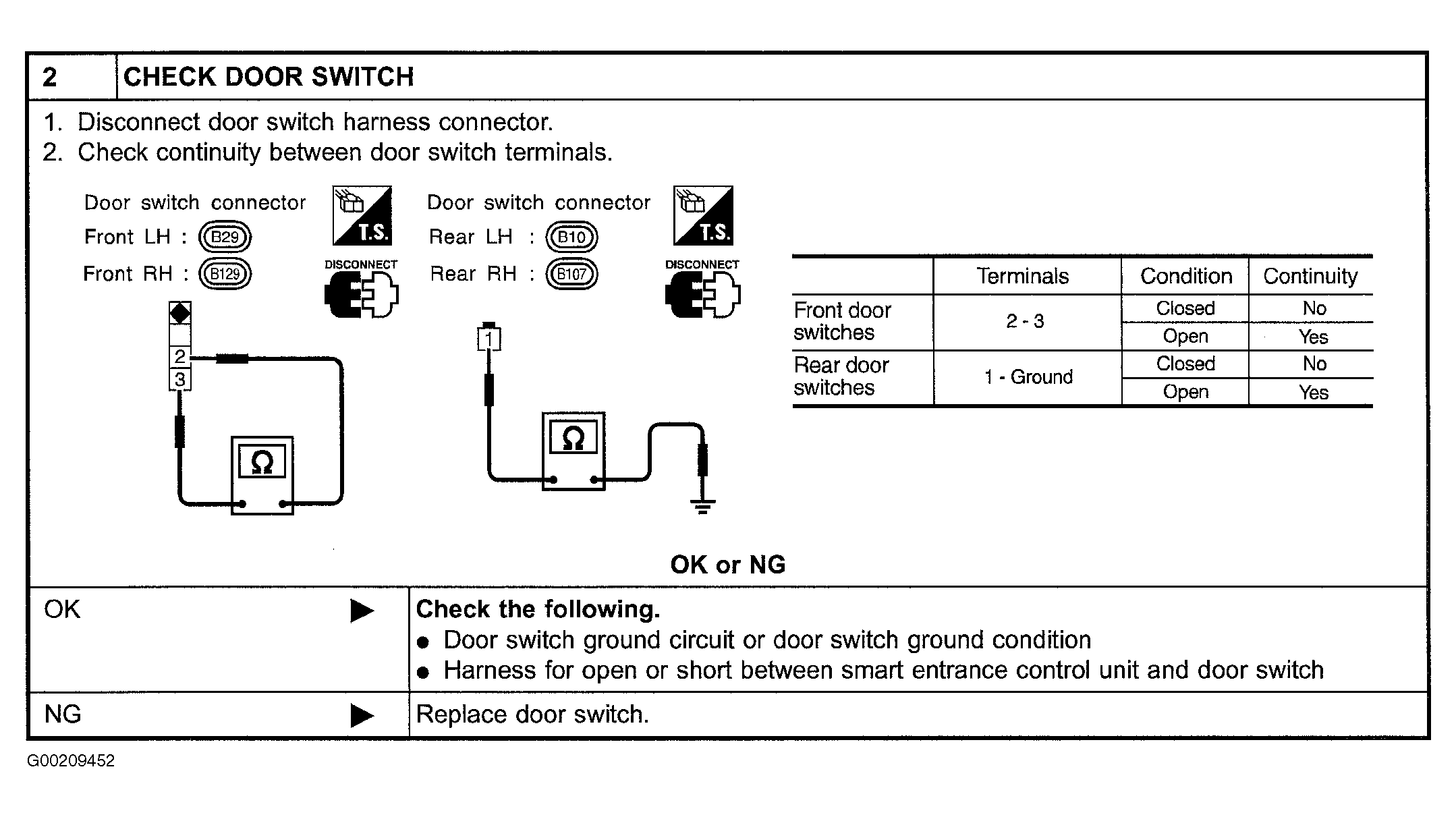

Fig 2: Identifying Door Switch Check, Step 2
G00209452Courtesy of NISSAN MOTOR CO., U.S.A.
