Home >> Nissan-Datsun >> 2003 >> Maxima GLE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Repair For Component Parts >> Reverse Clutch >> Components

Reverse Clutch: Components

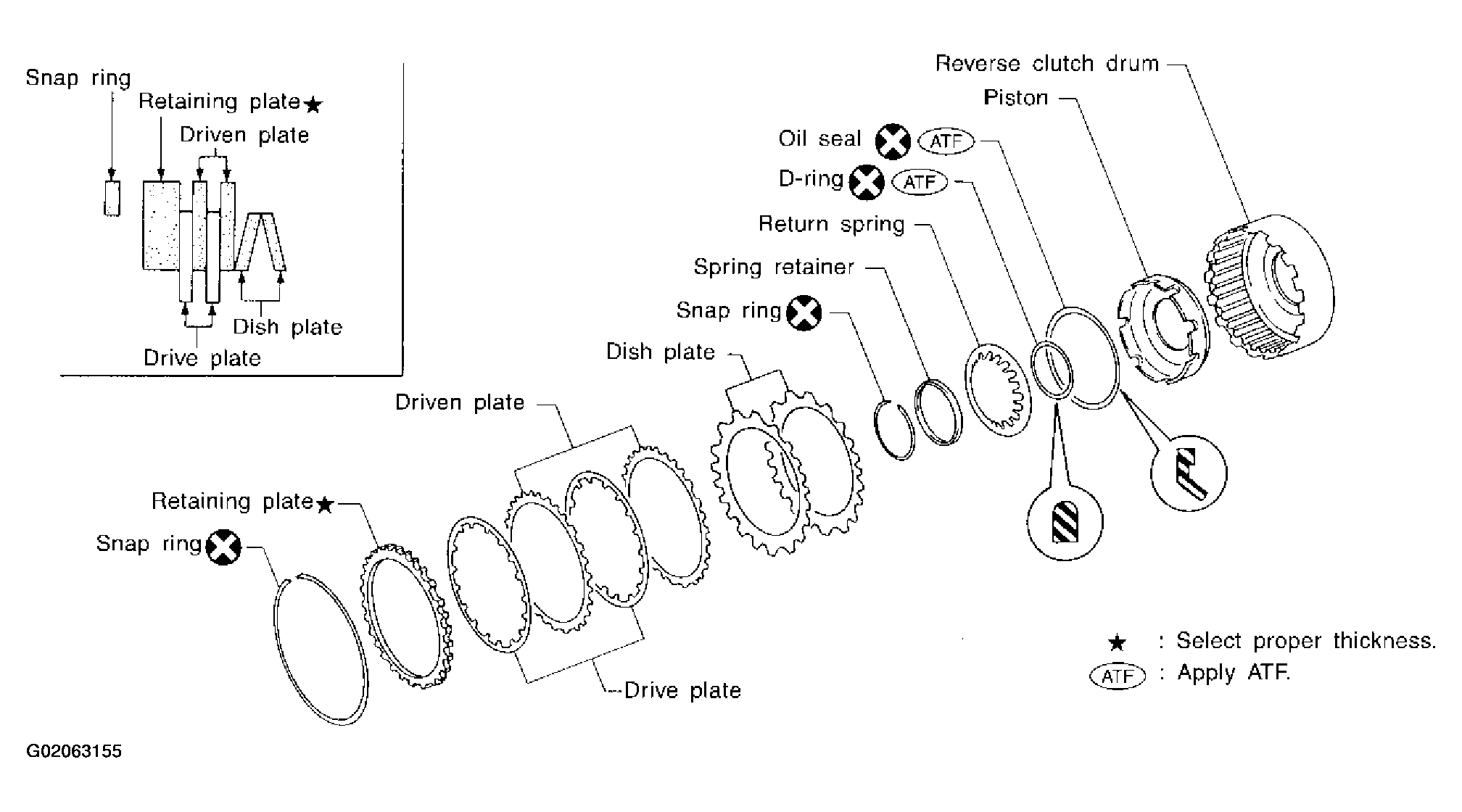

Fig 1: Identifying Reverse Clutch Components

G02063155

Courtesy of NISSAN MOTOR CO., U.S.A.
