Home >> Nissan-Datsun >> 2003 >> Maxima GLE >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle >> Repair For Component Parts >> Manual Shaft >> Components

Manual Shaft: Components

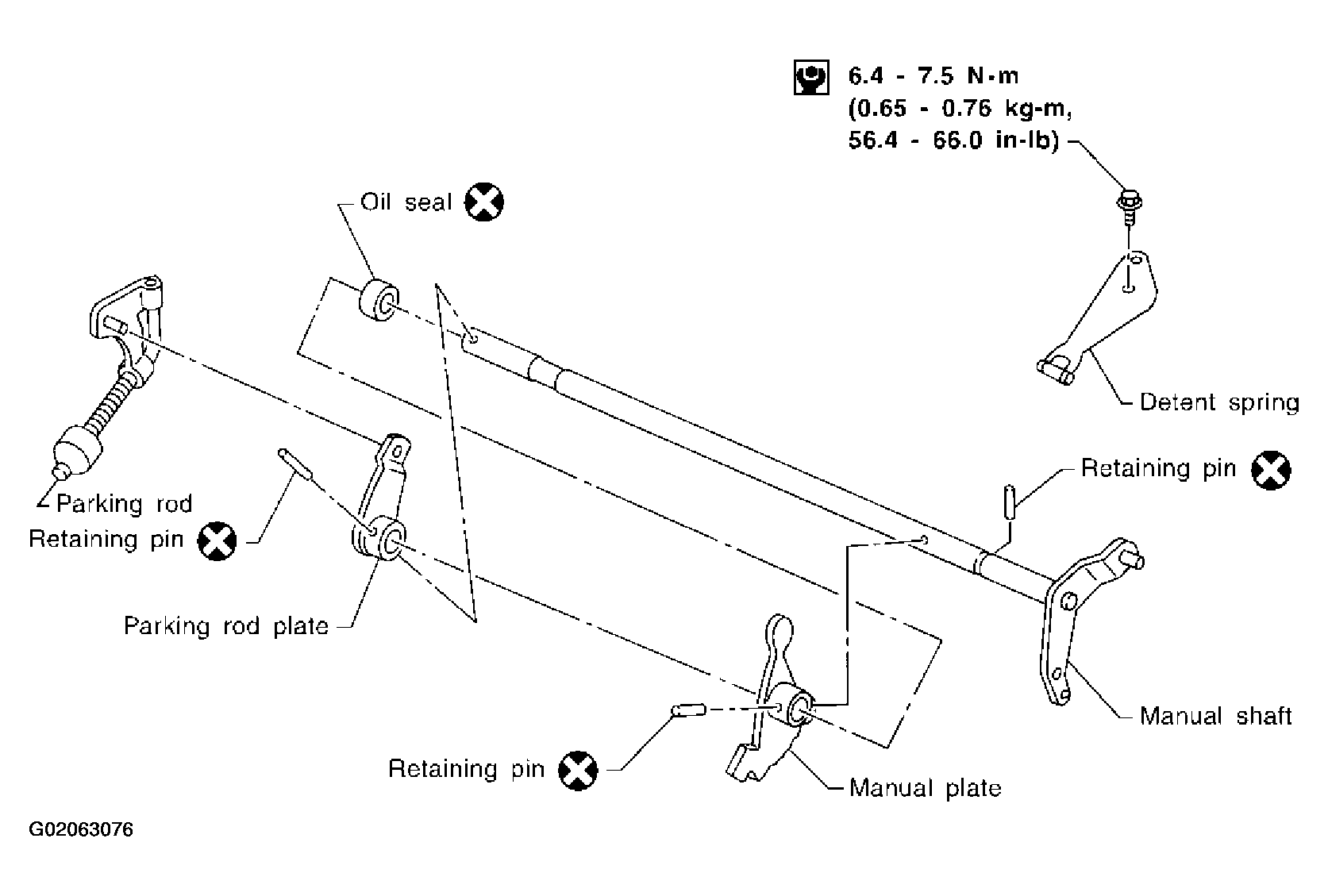

Fig 1: Identifying Manual Shaft Components

G02063076

Courtesy of NISSAN MOTOR CO., U.S.A.
